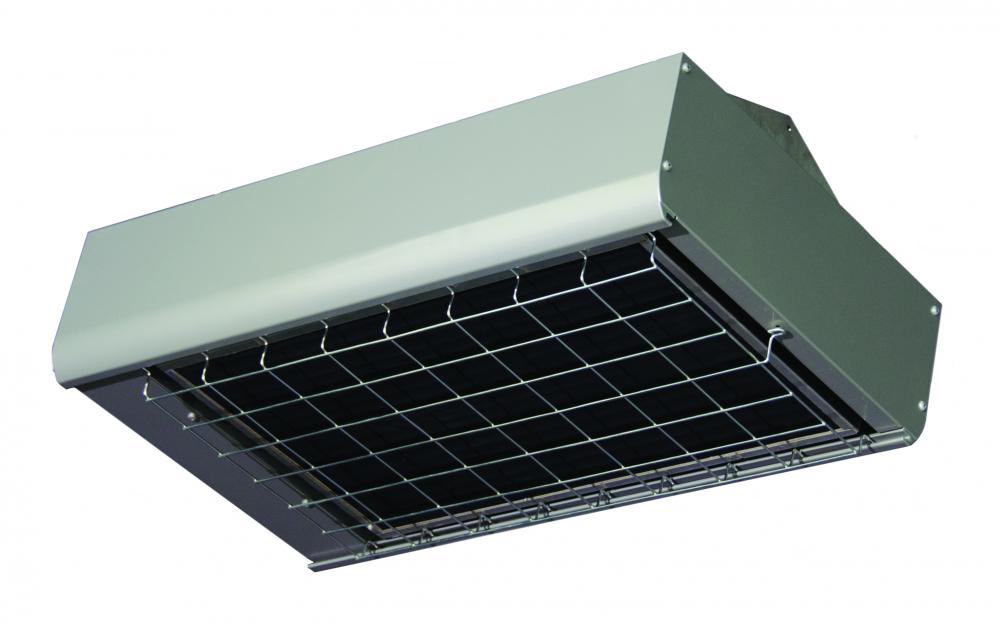

4.3 KW 240V HD Overhead Flt Pnl Emttr

TPI
4.3 KW 240V HD Overhead Flt Pnl Emttr

Part Number: FSA43243
UPC: 00686334489027
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Amperage Rating...
Changes Selections Above Model...
Changes Selections Above Voltage Rating...
Changes Selections Above Phase...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Infrared Heater, Aluminum Housing, Surface Mount, 240 VAC, 17.91 AMP (1PH), 10.36 AMP (3PH), 4300 WATT, 14672 BTU, Dimensions- 25-1/16 Length x 14-3/4 Width x 8-3/4 Depth IN
Specifications
Details
Product Height:
12.63"
Product Width:
18.69"
Product Length:
29.81"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Heating Equipment Parts And Accessories
Amperage Rating:
17.91 (1PH), 10.36 (3PH)
Application:
Indoor Spot Heating, Zone/Total Area Heating
Brand Name:
TPI
Country Of Origin:
US
Dimensions:
25-1/16 (L) x 14-3/4 (W) x 8-3/4 (D)
Fuel Type:
Does not apply
Housing Material:
Aluminum
Input:
240 VAC, 17.91 AMP (1PH), 10.36 AMP (3PH), 4300 WATT
Model:
FSA-4324-3
Mounting:
Surface Mount
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Output:
35.8 @ 10 FT, 25.6 @ 12 FT, 19.2 @ 14 FT, 14.9 @ 16 FT
Phase:
1,3
Pipe Size:
Does not apply
RoHS Compliance:
No
Spec Sheet:
Spec Link
Special Features:
Features: Heating Elements Included (Heavy Duty Single Flat Panel Emitter), Medium Wave Emitter Operates at 78.5 Radiant Efficiency - with a 25,000 Hour Life Expectancy, Providing a 60° Symmetrical Heat Pattern, Electrical Enclosure Included for Direct Wi
Standard:
cETLus Listed
Stock Type:
Shelf Stock
Type:
Infrared Heater
UNSPSC:
40101811
Vent Size:
Does not apply
Voltage Rating:
240
Warranty Link:
Warranty Information
Weight:
24.000 L
