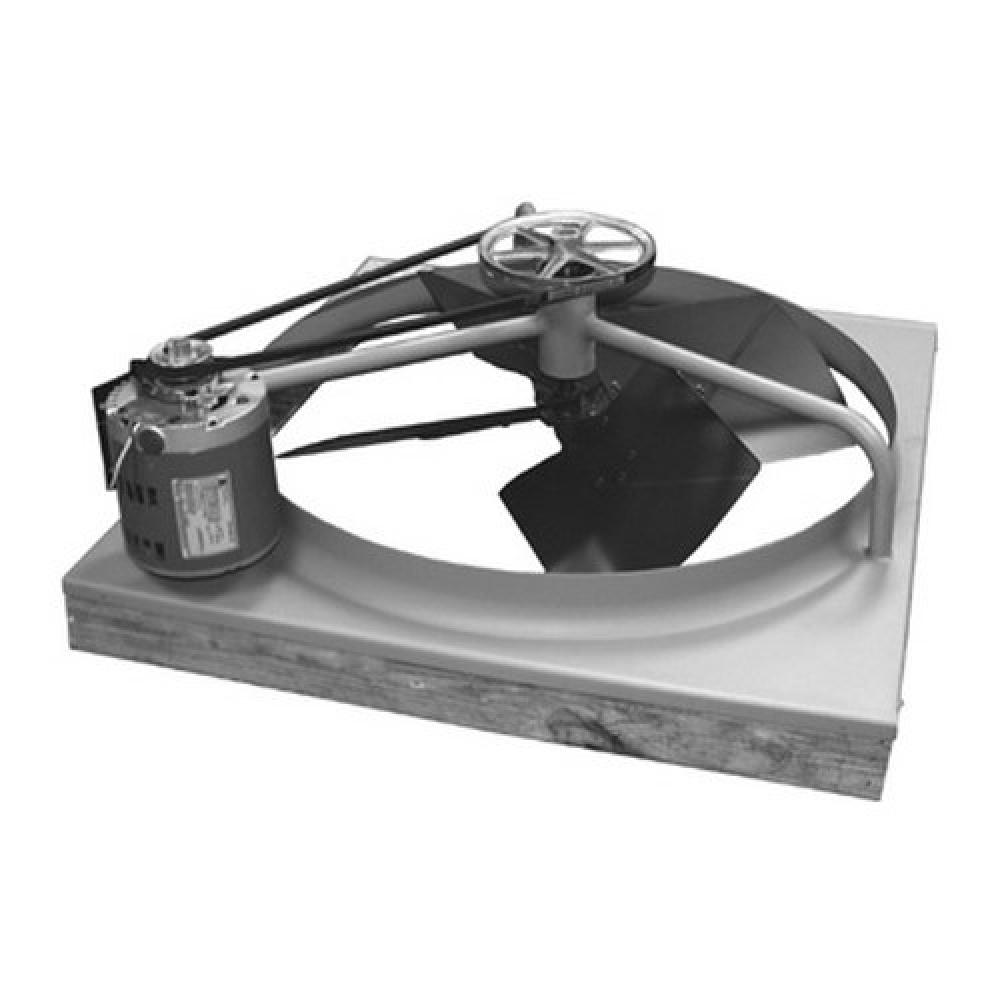

24" HD Belt Drv Fan, w/Shutter, 1/3 HP

TPI
24" HD Belt Drv Fan, w/Shutter, 1/3 HP

Part Number: BD242WHS
UPC: 00686334793629
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Amperage Rating...
Changes Selections Above Fan Speed...
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
24 IN Belt Drive Wholehouse Fan, Flow Rate- 2700/4500 CFM, 120 V, 1 PH, 4.8/5.7 AMP, Fan Speed- 410/612 RPM, Attic Mounting, AC Motor, 1/3 HP, Dimensions- 28 Length X 29.5 Width X 14.5 Depth IN
Specifications
Details
Product Height:
33.00"
Product Width:
15.00"
Product Length:
31.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Amperage Rating:
4.8/5.7 AMP
Application:
Indoor-Residential
Brand Name:
TPI
Country Of Origin:
US
Fan Speed:
410/612 RPM
Flow Rate:
2700/4500 CFM
Motor Type:
AC Motor
Mounting:
Attic
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 PH
RoHS Compliance:
No
Size:
24 IN
Spec Sheet:
Spec Link
Special Features:
Features: 2-Speed Motor;Shutters Automatically Open when Fan is Turned On and Close Tightly when Fan is Turned Of;120 V; Horsepower: 1/3 HP; Dimensions: 28 Length X 29.5 Width X 14.5 Depth IN
Standard:
ETL Listed
Stock Type:
Shelf Stock
Type:
Belt Drive
UNSPSC:
40101604
Voltage Rating:
120 V
Warranty Link:
Warranty Information
Weight:
56.000 L
