Image may not reflect selected features
No Image
Available
Available
TPI
24" Asmbld Ind. High Perf Head 1/3 HP
Part Number: IHP24H
UPC: 00686334798983
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Amperage Rating...
Changes Selections Above Blade Size...
Changes Selections Above Size...
Changes Selections Above Speed...
Product Overview

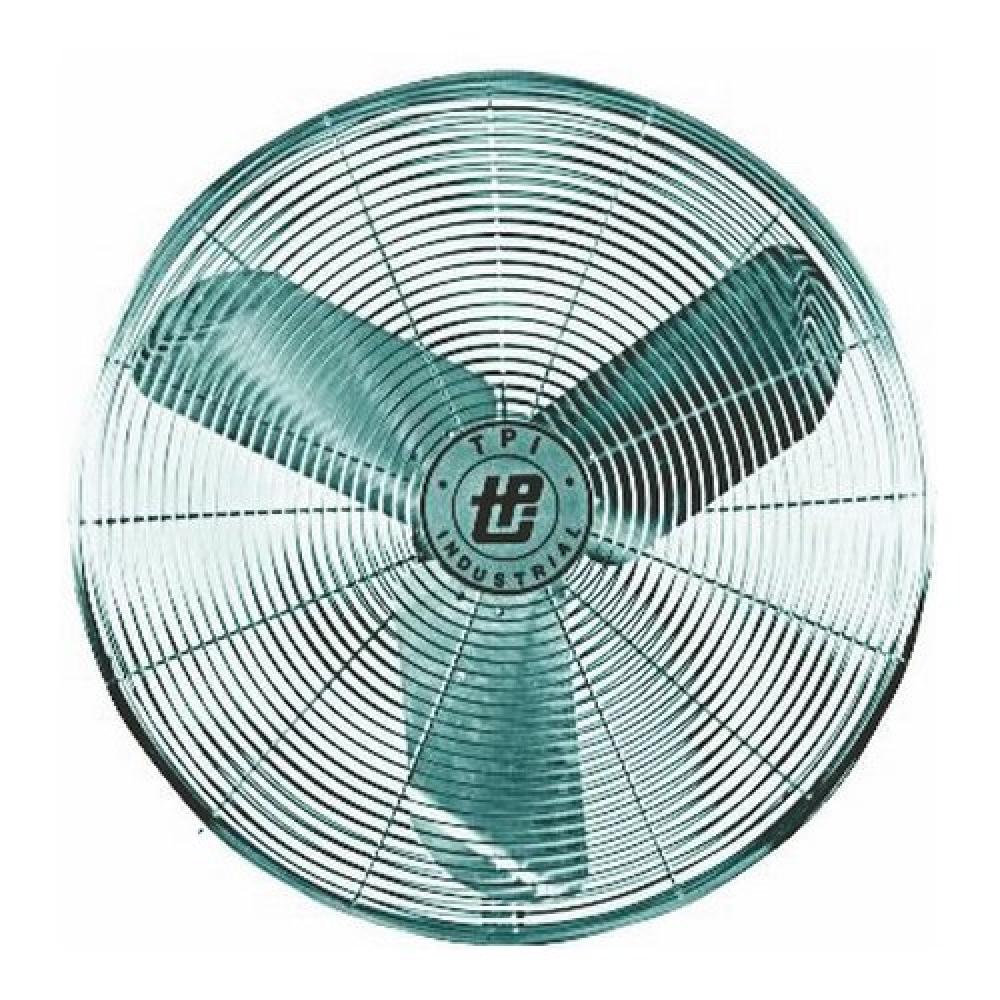

Industrial Assembled Circulator Heads and Mount, High Performance, Size- 27 IN, Blade Size- 24 IN, Flow Rate- 5200 (Low), 7000 (High) CFM, 1/3 HP, 2.8 AMP, Speed- 800 (Low), 1100 (High) RPM, 120 V, 2 Speeds
Specifications
Details
Product Height:
16.00"
Product Width:
28.00"
Product Length:
28.00"
Electrical Category:
Heating Ventilation And Air Conditioning
Electrical Subcategory:
Air Circulation Parts And Accessories
Amperage Rating:
2.8 AMP
Application:
Indoor-Industrial
Blade Size:
24 IN
Brand Name:
TPI
Country Of Origin:
US
Drive Type:
Motor
Flow Rate:
5200 (Low);7000 (High) CFM
Horsepower:
1/3 HP
Housing Material:
Steel
Maximum Depth:
14.5 IN
Mounting:
Pedestal/Wall/I-Beam/Ceiling/Suspension/Pole
Number Of Speeds:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1 PH
RoHS Compliance:
No
Shaft Diameter:
1/2 IN
Size:
27 IN
Spec Sheet:
Special Features:
Features: Pull Chain Switch;Steel Hub/Spider Aluminum Paddle Blades;Coated Steel Guards;3 Year Warranty;Totally Enclosed;Permanent Split Capacitor;Permanently Lubricated; Blade Material: Aluminum; Cord Type: 3 Conductor SJT; Cord Length: 12 FT
Speed:
800 (Low);1100 (High) RPM
Standard:
cETLus Listed;OSHA
Stock Type:
Shelf Stock
Style:
Paddle Blade
Type:
Assembled High Performance
UNSPSC:
40101602
Voltage Rating:
120 V
Warranty Link:
Weight:
35.000 L
