SolaHD

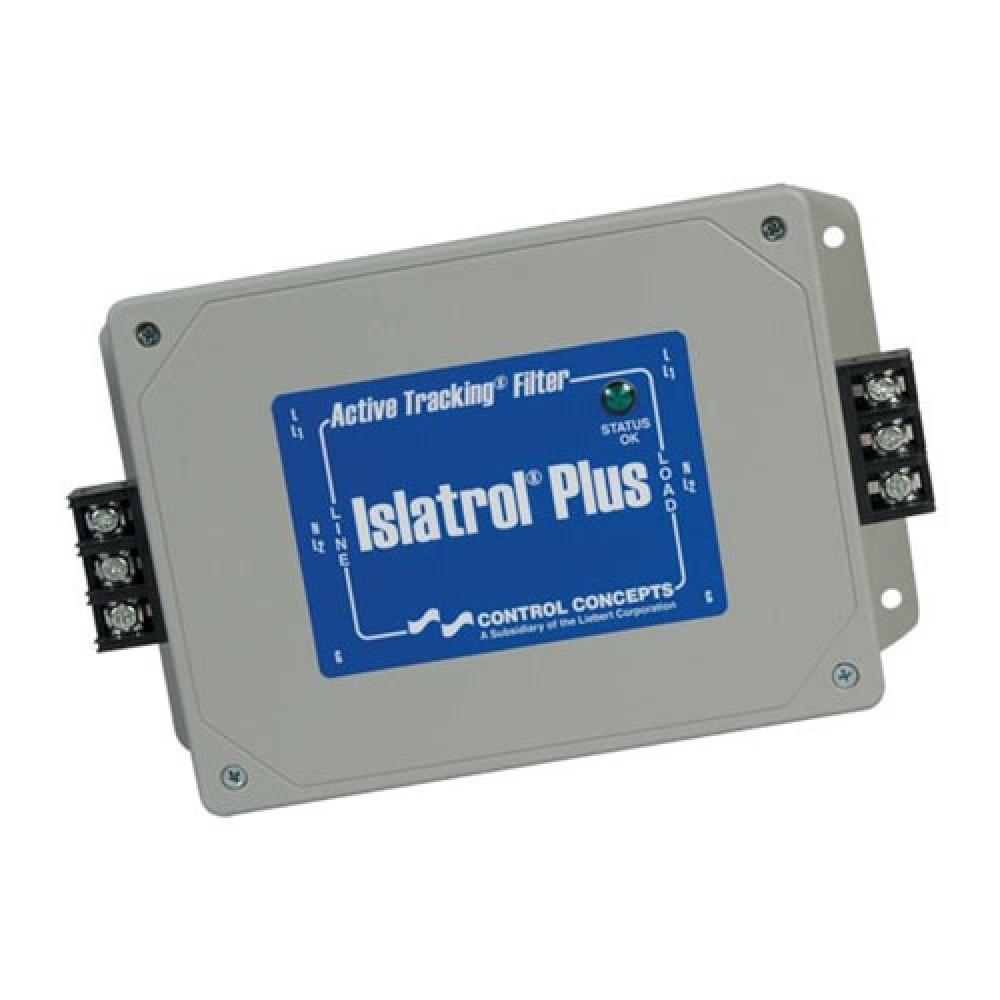

ISLATRL+ 1PH 5A 120V R0HS
Part Number: IC+105
UPC: 00633914070038
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Changes Selections Above Amperage Rating...
Changes Selections Above Short Circuit Rating...
Product Overview
Islatrol Active Tracking Filter, MCOV: 120 Volts/150 VRMS, 240 Volts/275 VRMS, Frequency: 47-63 HZ, Peak Surge Current Capability: 15,000 Amps, Category A Ringwave(6kV, 200 A, 100 kHz): Normal 0.7/0.8, Common 292/307
Specifications
Details
Product Height:
2.80"
Product Width:
5.50"
Product Length:
9.00"
Electrical Category:
Electrical Distribution Equipment
, Fuses Relays And Circuit Breakers
Electrical Subcategory:
Surge And Power Protection
, Circuit Protection Devices And Accessories
Amperage Rating:
2.5
Application:
Industrial or office equipment, computers placed in harsh environments.
Brand Name:
SolaHD
Class:
Category A Ringwave (6kv, 200 A, 100 kHz)
Connection:
Barrier strip at input and output/with wire leads at input and output
Country Of Origin:
MX
Environmental Conditions:
Humidity: 0 to 95%
Frequency Rating:
47-63
Material:
High Impact Plastic Case, Vacuum Impregnated Magnetics, Epoxy Encapsulated
Mounting:
Flange Dimensions: 4.38 x 2.12 x 5.31 x 0.19
Operating Temperature:
-40 DEG C to +45 DEG C at Full Load; Derate Linearly to 60% at +70 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Response Time:
Normal Mode <0.5ns; Common Mode <5ns
RoHS Compliance:
Yes
Short Circuit Rating:
Surge current capacity -- 45,000 Amps
Size:
4 Length x 2.88 Width x 1.81 High
Spec Sheet:
Special Features:
Reduces normal mode transients to +/-2 volts; Surge current capacity-45,000 Amps; Transient protection in all modes: line to neutral, line to ground, and neutral to ground; LED power indication
Standard:
UL 1283, CSA Recognized
Sub Brand:
Edco
Type:
Islatrol IC+ Series
Type Of Indicators:
LED Power Indicators
UNSPSC:
39121610
Voltage Rating:
120 Volt/ 150 VRMS
Warranty Link:
Weight:
1.250 L
