Panduit

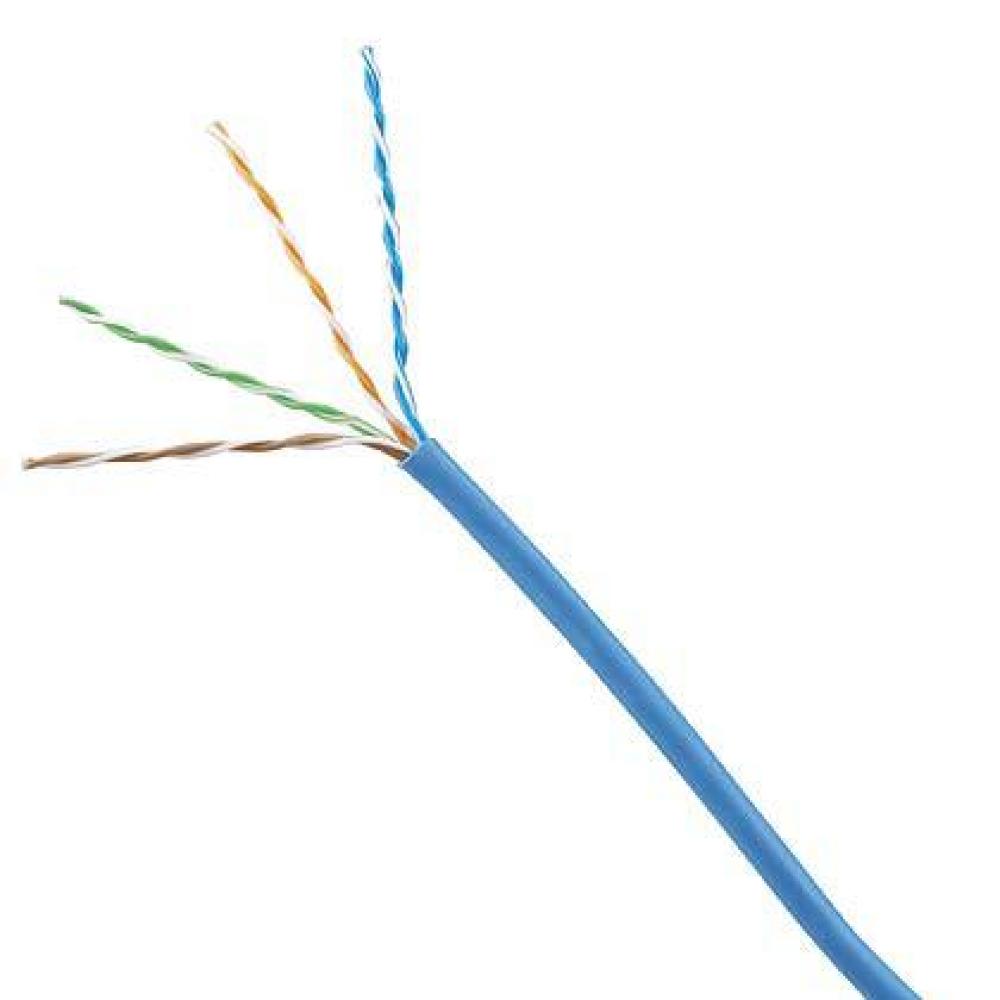

Copper Cable, Cat 6, 4-Pair, 23 AWG, U/U

Copper Cable, Category 6, 4-Pair, 23 American Wire Gaurge (AWG), UTP CMP, Black, 1,000 feet/305 meters. Meets all ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel requirements. Meets requirements of IEEE 802.af and IEEE 802.3at for PoE applications. Third party tested to Category 6 channel compliance. Conductors are twisted in pairs with four pairs contained in a low smoke, flame-retardant (CMP) PVC jacket separated by a tape. Maximum installation tension of 25 pounds (110 N). Installation temperature range of 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C). Operating temperature range of -4 degrees F to 167 degrees F (-20 degrees C to 75 degrees C). Cable diameter of 0.205 inch, (5.2mm) nominal. Easy payout carton and descending length markings on cable speed installation and reduce scrap. Supports Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16.
