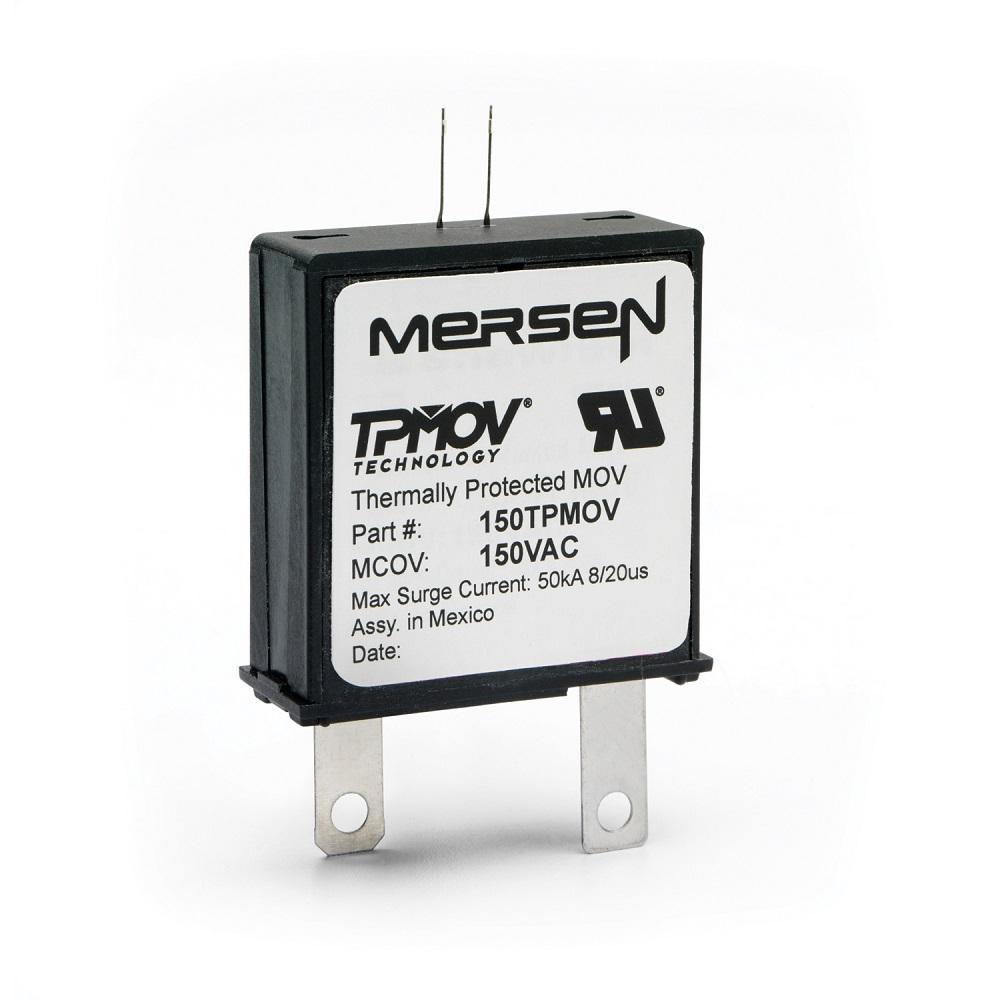

Mersen
THERMALLY PROTECTED MOV 150
Part Number: 150TPMOV
UPC: 00782001286002
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Changes Selections Above Voltage Rating...
Changes Selections Above Lead Time...
Changes Selections Above Specific Products...
Product Overview
Mersen's patented TPMOV® (Thermally Protected Metal Oxide Varistor ) eliminates common destructive failure modes associated with standard MOVs. Comprised of a voltage clamping device and a disconnecting apparatus that monitors the status of the metal oxide disk inside the TPMOV, the device is securely disconnected in the event of an overvoltage by an arc shield. Upon failure, the TPMOV is also equipped with a visual pin indicator as well as a normally open microswitch providing remote indication, if applicable. 150 Volts standard series.
Specifications
Details
Product Height:
0.63"
Product Width:
1.69"
Product Length:
2.35"
Electrical Category:
Electrical Distribution Equipment
, Fuses Relays And Circuit Breakers
Electrical Subcategory:
Surge And Power Protection
, Circuit Protection Devices And Accessories
Application:
Surge protective devices and systems AC / DC distribution systems High voltage power supplies Telecommunications equipment Motor control systems Computer related products PLC applications Power transfer switches
Brand Name:
Mersen
Brochure:
Connection:
Solder
Country Of Origin:
MX
Lead Time:
90.000 DW
Mounting:
PCB
Order Minimum:
10.000 EA
Order Multiple:
10.000 EA
RoHS Compliance:
Yes
Short Circuit Rating:
200
Spec Sheet:
Special Features:
50kA 8/20MicroSec Max Surge Rating UL 1449 Third Edition Recognized Consistent footprint with 25-40mm MOV's Visual/Remote Indication Small Package
Standard:
UL Recognized Component RoHS Compliant
Type:
Thermally Protected MOV (TPMOV)
Type Of Indicators:
Microswitch
UNSPSC:
39121610
Voltage Rating:
180
Weight:
.120 L
