Mersen
Fuse Block 600VAC 600VDC Class CC 30A 2-Pole 11-
Part Number: FEY-11-11
UPC: 00782001301323
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Connection...
Changes Selections Above Size...
Changes Selections Above Specific Products...
Product Overview

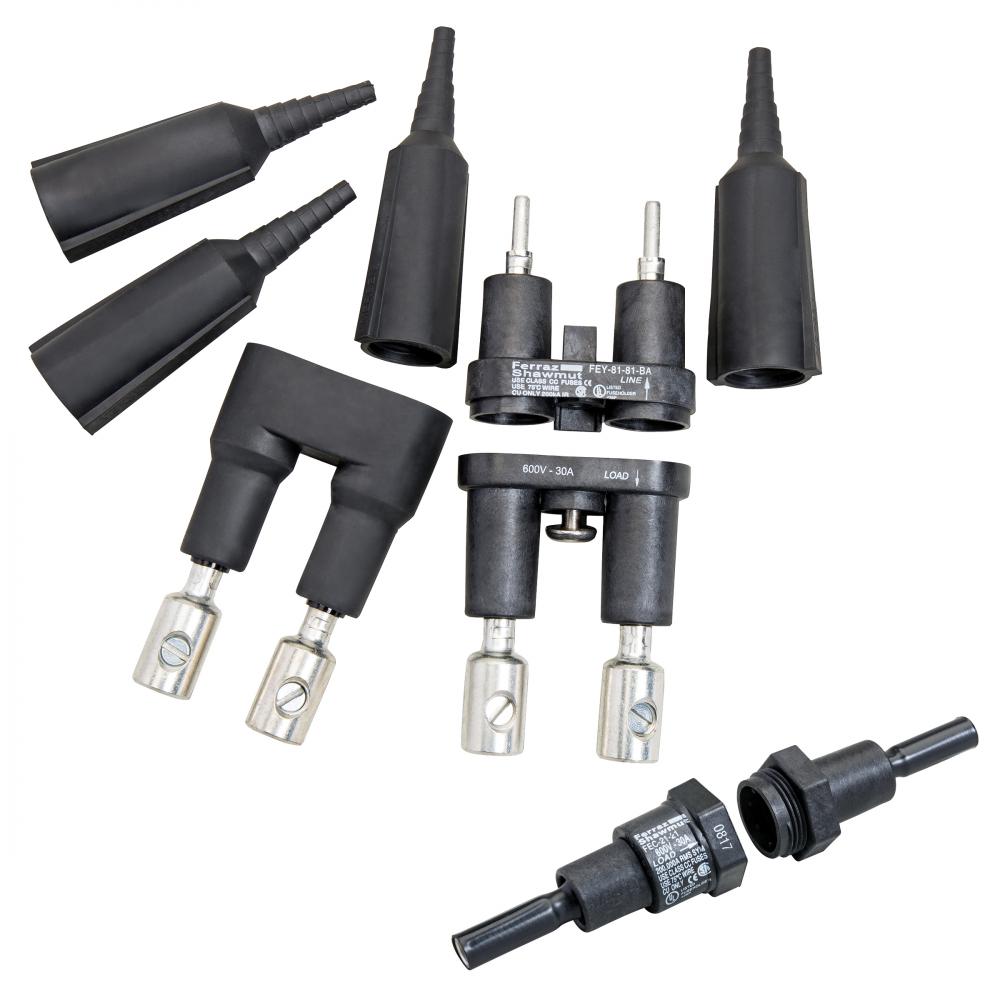

Fuse Block 600VAC 600VDC Class CC 30A 2-Pole 11-11 Crimp
Specifications
Details
Product Height:
0.99"
Product Width:
2.96"
Product Length:
4.30"
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Fuses
Amperage Rating:
30
Application:
Street lighting Parking lot lighting Traffic signaling Sports lighting Boats and marinas Humid/corrosive environments
Brand Name:
Mersen
Class:
Class CC
Connection:
Crimp
Country Of Origin:
MX
Material:
Polyethylene
Mounting:
In-Line
Number Of Poles:
2-pole
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
2
RoHS Compliance:
Yes
Size:
4.3 x 2.96 x 0.99
Spec Sheet:
Special Features:
Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards 3 O-rings per pole for water tight applications Colored O-rings for quick detection Single and dual poles Accepts midget
Standard:
UL Listed Class CC Guide IZLT, File E52283 UL Recognized Component Midget Guide IZLT2, File E52283 CSA Certified Class CC and Midget Class 6225, File 32169
Stock Type:
Configured on order
Type:
UL/CSA Fuse Bases
UNSPSC:
39121624
Voltage Rating:
600
Weight:
.200 lb
