Intermatic

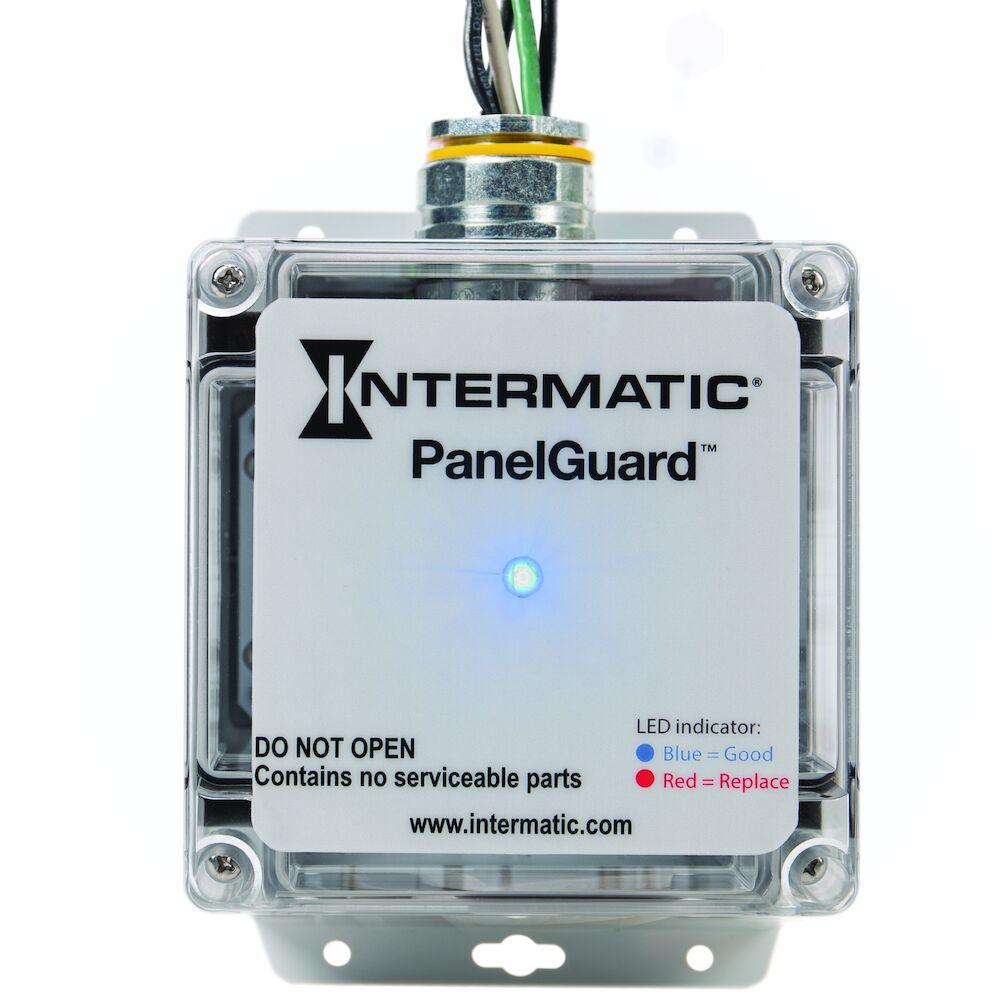

Surge Protective Device, 4-Mode, 120/208 VAC 3Ph
Part Number: L5F23Y1DG2
UPC: 00078275151765
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Phase...
Changes Selections Above Specific Products...
Product Overview
Surge Protective Device, 4-Mode, 120/208 VAC 3Ph Y, Type 2, EMI/RFI Filter, Audible Alarm, Form C Contact, Surge Current Rating 50kA
Specifications
Details
Electrical Category:
Fuses Relays And Circuit Breakers
Electrical Subcategory:
Circuit Protection Devices And Accessories
Electrical Subtype:
Surge Arrestor
Application:
Electrical Distribution Panels;Motor Control;Panel Boards;Switchboards;Switchgear;Transfer Switches
Brand Name:
Intermatic
Brochure:
Country Of Origin:
US
Installation Link:
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3 Phase WYE 120/208 V
Short Circuit Rating:
200 kA
Spec Sheet:
Special Features:
Type 2 surge protection;Optional audible alarm and dry relay contacts;4 Modes of protection;NFPA 780, UL 96A Lightning system protection compliant;NEMA 4X enclosure for indoor or outdoor installation;Individually integrated disconnect TPMOV surge protectio
Standard:
RohS;ANSI/UL 1283;ANSI/UL 1449 4th Edition;CSA C22.2 No. 269.2-13, and No. 8-13 (VZCA, VZCA7, FOKY, KOKY7);2020 National Electric Code, Article 242 (previously NEC, Art. 285), 700.10 & 708.20;ANSI/IEEE C62.72-2016, ANSI/IEEE C62.41.1, C62.41.2-2002;C62.45-
Stock Type:
Shelf Stock
Type:
NEMA Type 4X
Type Of Indicators:
Blue/Red LED
UNSPSC:
39121634
