Image may not reflect selected features
No Image
Available
Available
Intermatic

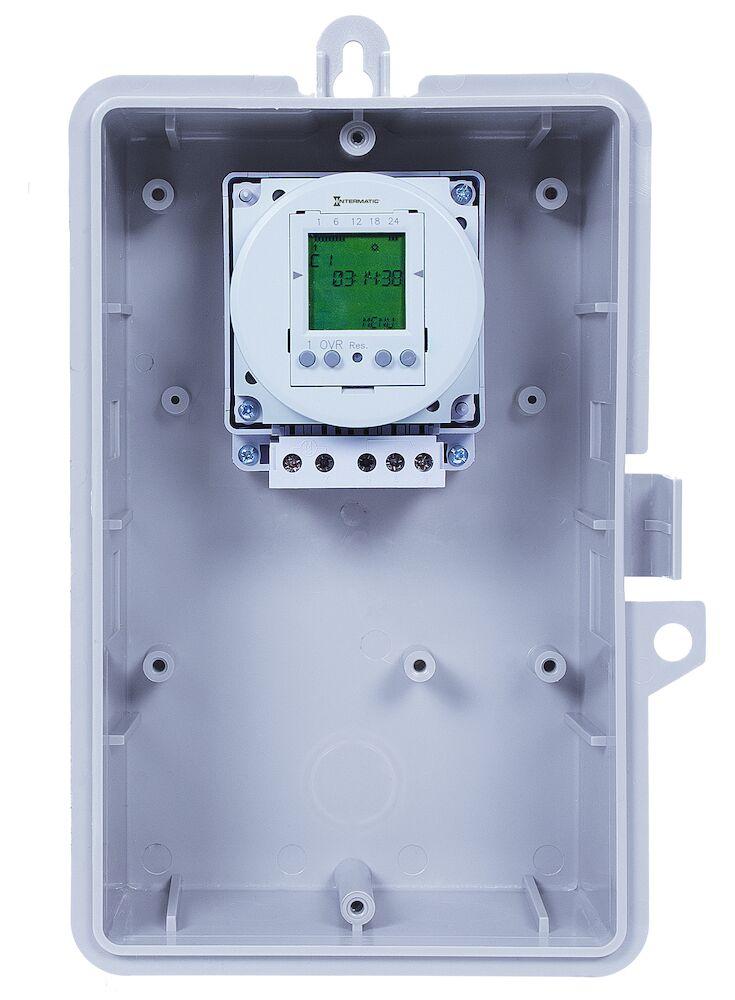

24-Hour or 7-Day 120V Electronic Time Control, 1
Part Number: GMXFM1D20-I-120
UPC: 00078275116771
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Voltage Rating...
Product Overview
24-Hour or 7-Day 120V Electronic Time Control, 16A, 20 Setpoint Programs, SPDT, Type 1 Indoor Plastic Enclosure
Specifications
Details
Product Height:
4.13"
Product Width:
7.00"
Product Length:
10.10"
Category:
Lighting Controls
Action:
1 x SPDT
Application:
Indoor, Pumps, Fans, HVACR, Control Circuits, Lighting, Machinery, Commercial, Industrial, Agricultural
Brand Name:
Intermatic
Connection:
Screw Terminal
Contact Configuration:
1 NO/1 NC
Contact Rating:
16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Country Of Origin:
CN
Enclosure:
NEMA 1
Installation Link:
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-13 to +131 DEG F, -25 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
10 HEIGHT X 6.50 WIDTH X 3.75 DEPTH IN, 25.4 HEIGHT X 16.5 WIDTH X 9.5 DEPTH CM
Spec Sheet:
Special Features:
Features: 20 Programmable Events, 7 Years Battery Backup Carryover, 1 Year Warranty, Manual Daylight Saving Time Adjustment, Heavy-Duty Relay Contacts for Switching Low or Line Voltage Loads, Easy-to-Follow Menu Driven Programming, Battery Backup, Manual O
Standard:
cULus Listed #E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Timer Duration:
24 HR/7 DAYS
Timing Range:
24 HR/7 DAYS
Type:
One Channel Electronic
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
1000
Weight:
1.670 L
