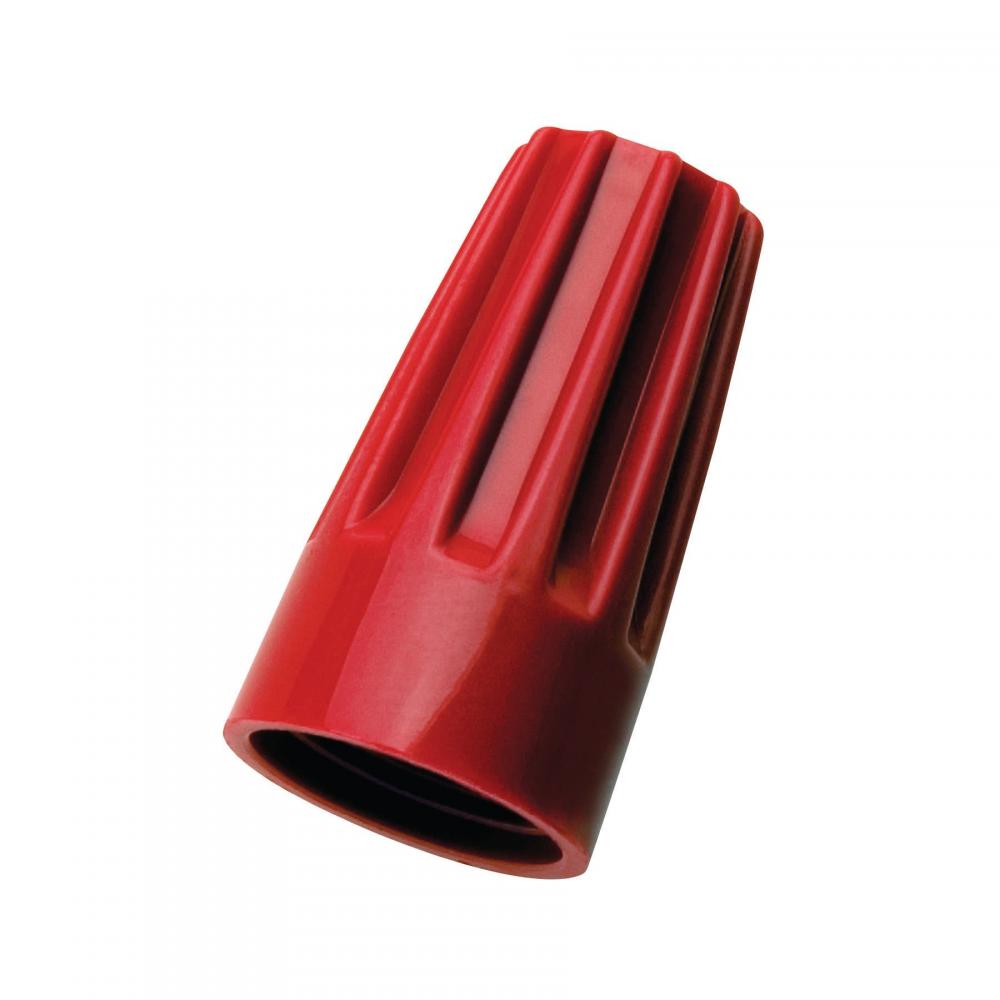

WIRENUT 76B RED, 100 BX

Ideal Industries
WIRENUT 76B RED, 100 BX

Part Number: 30-076
UPC: 00783250300761
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Conductor Range...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
IDEAL, Wire Connector, Wire-Nut, Twist-On, Number Of Conductors: 1 to 6, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Conductor Range: 18 - 12 AWG, Min 2-18 MAX 4-14 w/ 1-18, Material: Flame-retardant polypropelene, Color: Red, Voltage Rating: 600 V, Model Number: 76B, Flammability Rating: UL 94V-2
Specifications
Details
Product Height:
3.50"
Product Width:
3.50"
Product Length:
5.50"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Insulating or Joining 2 or more conductors
Brand Name:
IDEAL
Brochure:
Manufacturer Brochure
Color:
Red
Compare Number:
1000
Conductor Range:
18 - 12 AWG, Min 2-18 MAX 4-14 w/ 1-18
Country Of Origin:
USA
Environmental Conditions:
Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Material:
Flame-retardant polypropelene
Number Of Conductors:
1 to 6
Order Minimum:
1000.000 EA
Order Multiple:
1000.000 EA
RoHS Compliance:
Yes
Rohs Link:
Material Composition Declaration Link
Special Features:
Features: Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation; Deep Skirt Helps Protect Against Flash-Over; Reusabl
Standard:
CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E
Stock Type:
Shelf Stock
Sub Brand:
Wire-Nut®
Type:
Twist-On
UNSPSC:
39121445
Voltage Rating:
600
Weight:
.930 L
