Image may not reflect selected features
No Image
Available
Available
Fluke

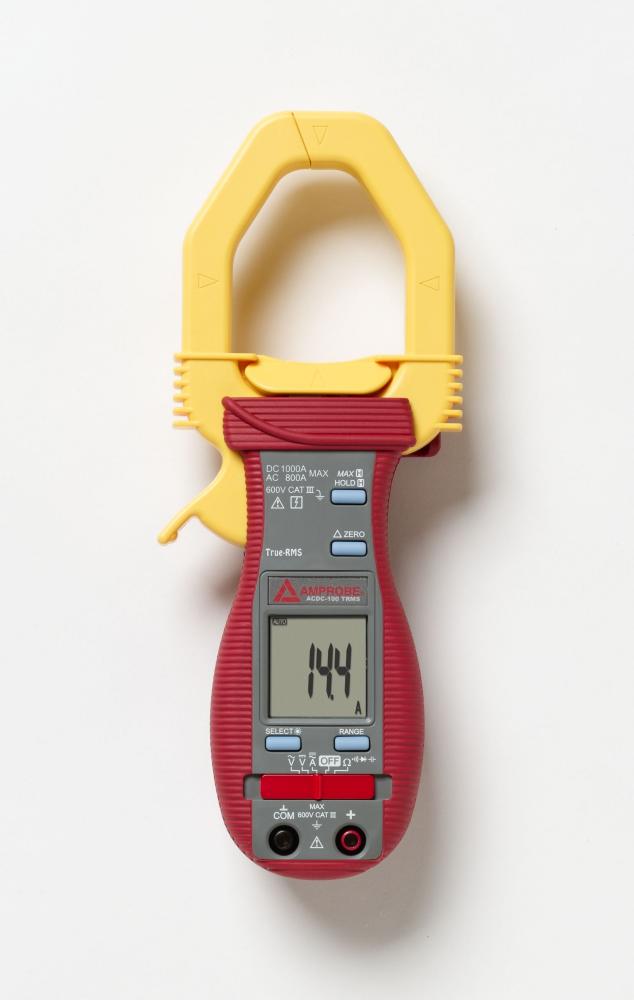

AC/DC CLAMP-ON
Part Number: ACDC-100
UPC: 00095969370004
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Display...
Changes Selections Above Type...
Product Overview
Where accuracy, quality, and newest technology meet. This product offers superior AC DC measurement capabilities, highest product quality and enhanced ergonomics with red, rubber, Ribs™ design. The true-rms version addresses needs of professionals who rely on performance and reliability.
Specifications
Details
Product Height:
3.15"
Product Width:
7.09"
Product Length:
12.20"
Electrical Category:
Testing And Measuring
Electrical Subcategory:
General Testing And Measuring
Accuracy:
DC Voltage: 400.0 mV (0.3% + 3d), 4.000 V, 40.00 V, 400.0 V (0.5% + 3d), 600 V (1.0% + 4d); AC Voltage: 400.0 mV (4.0% + 4d), 4.000 V, 40.00 V, 400.0 V (1.0% + 4d @ 50Hz to 60Hz, 1.5% + 4d @ 60Hz to 500Hz), 600 V (2.0% + 4d); DC Current: 0.0 A to 400.0 A (
Amperage Rating:
AC Current 400.0 A, 800 A; DC Current 400.0 A, 1000 A
Application:
Multimeter measures in-rush current, AC/DC voltage and current, resistance, continuity and diode tests for industrial applications
Battery:
Standard 1.5V AAA Size (NEDA 24G or IEC R03) battery X 2; or 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery X 2
Brand Name:
Amprobe
Capacitance:
500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
Country Of Origin:
TW
Dimensions:
8.94 x 3.07 x 1.57
Diode Test:
Yes
Display:
3-3/4 digits 4000 counts LCD display
Enclosure:
Hard plastic
Model:
ACDC-100
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Peak Hold:
No
Resistance:
400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
RoHS Compliance:
Yes
Spec Sheet:
Standard:
EN61010-1:2001; IEC61010-2-032(2002), EN61010-2-032(2002), UL61010B-2-032(2003) Category III 600 Volts AC & DC
Stock Type:
Shelf Stock
Tech Drawing Link:
Type:
Digital Multimeter
UNSPSC:
41113630
Voltage Rating:
AC/DC 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
Weight:
1.470 L
