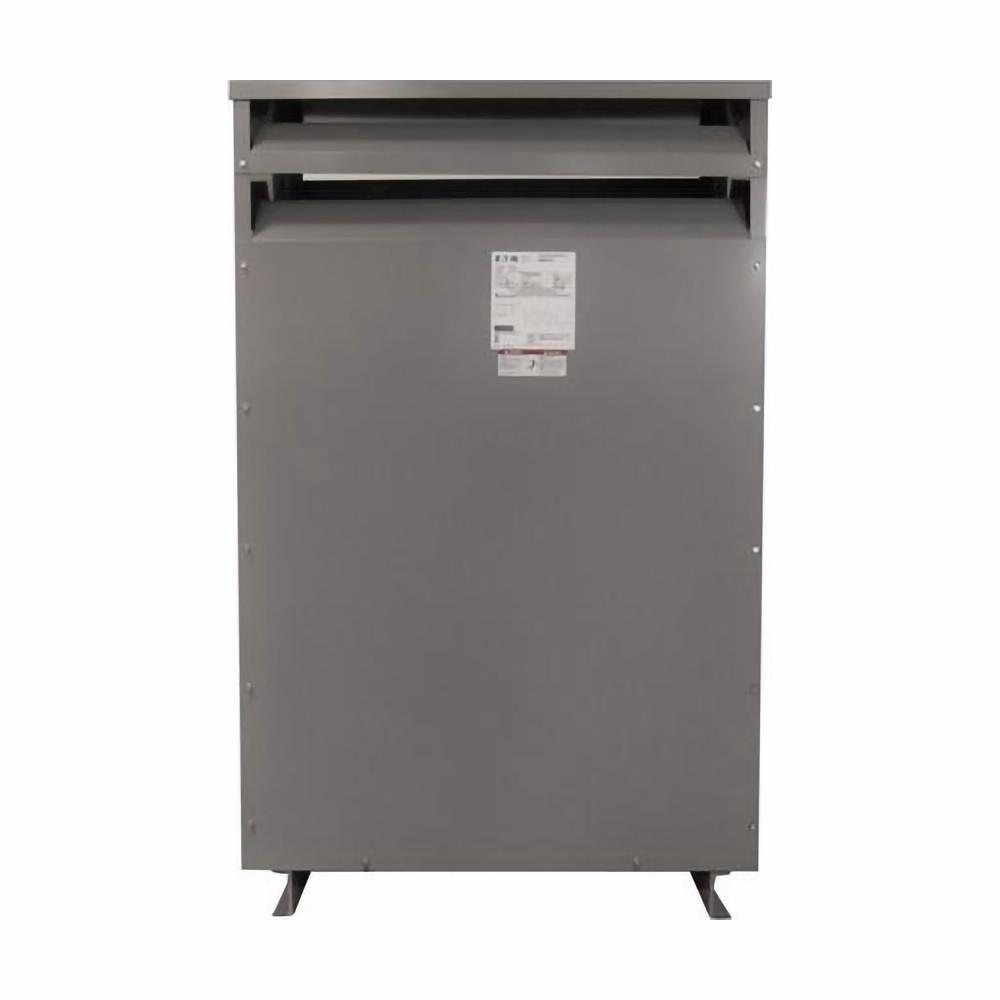

Eaton K-Factor nonlinear ventilated transformer

Eaton
Eaton K-Factor nonlinear ventilated transformer

Part Number: H48M47T55CUEE
UPC: 00786680044922
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Length...
Changes Selections Above Lead Time...
Changes Selections Above KVA Rating...
Changes Selections Above Secondary Voltage...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Eaton K-Factor nonlinear ventilated transformer, KT-4 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 480Y/277V, 150°C rise w/ 200°C insulation systeam, 500 kVA, Copper windings, EE
Specifications
Details
Product Height:
1.20"
Product Width:
1.20"
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Transformers And Accessories
Electrical Subtype:
Isolation Transformers
Application:
Commercial / Institutional Buildings / Structures - Safety and Security Systems
Brand Name:
Eaton
Brochure:
Manufacturer Brochure
Country Of Origin:
MX
Frequency Rating:
60 Hz
Lead Time:
5.000 DW
Length:
1.2000 IN
Number Of Phases:
Three-phase
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
480 V
RoHS Compliance:
Contact Manufacturer
Secondary Voltage:
480 Y/277 V
Spec Sheet:
Spec Link
Special Features:
Electrostatically shielded
Standard:
UL Listed,NEMA TP-1 Compliant
Tap Size:
2 at +2.5% FCAN, 4 at -2.5% FCBN
Tech Bulletin Link:
Technical Bulletin
Temperature Rating:
150 °C rise
Type:
Ventilated transformer
UNSPSC:
39121029
Weight:
1.200 L
