Image may not reflect selected features
No Image
Available
Available
Eaton

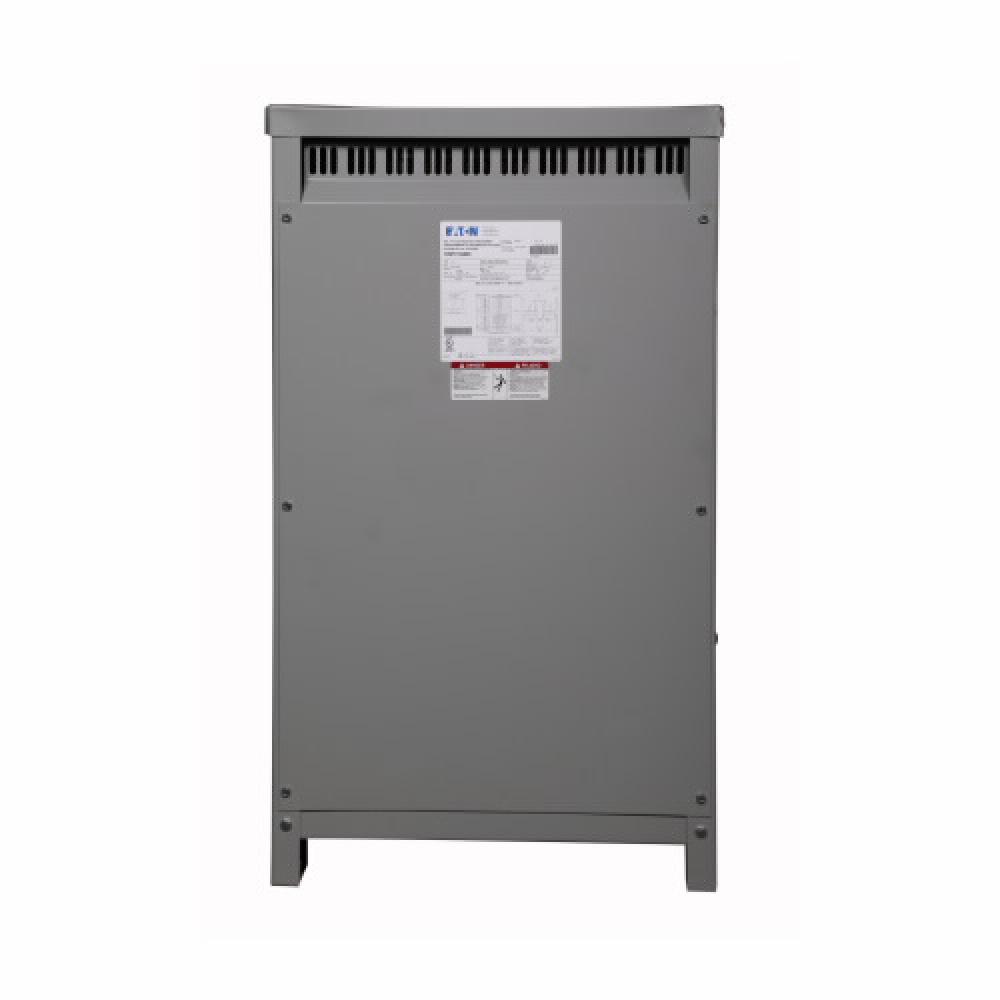

Eaton General purpose ventilated transformer
Part Number: T60M11E50CUEE
UPC: 00786680037115
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Changes Selections Above Length...
Changes Selections Above Secondary Voltage...
Changes Selections Above Primary Voltage...
Changes Selections Above Design...
Changes Selections Above Specific Products...
Product Overview
PURGE-General-Purpose Transformer, Ventilated, Dry Type Distribution, DS-3, Single-phase, PV: 600V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 120/240V, 150°C, 50 kVA , Cu windings, Elec. Shield
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Electrical Subcategory:
Transformers And Accessories
Electrical Subtype:
Isolation Transformers
Brochure:
Country Of Origin:
MX
Design:
DS-3
Frequency Rating:
60 Hz
Lead Time:
10.000 DW
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Primary Voltage:
600V
RoHS Compliance:
Contact Manufacturer
Secondary Voltage:
120/240V
Spec Sheet:
Special Features:
Electrostatically shielded
Standard:
UL Listed;NEMA TP-1 Compliant
Sub Brand:
None
Tech Bulletin Link:
Temperature Rating:
150°C
Type:
Dry Type Distribution Transformer
UNSPSC:
39121029
