CULUG-4/0STR-LONG W/PORT-1/2STUD

Burndy-US, a Hubbell affiliate
CULUG-4/0STR-LONG W/PORT-1/2STUD

Part Number: YAZ28TC12
UPC: 00781810233184
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

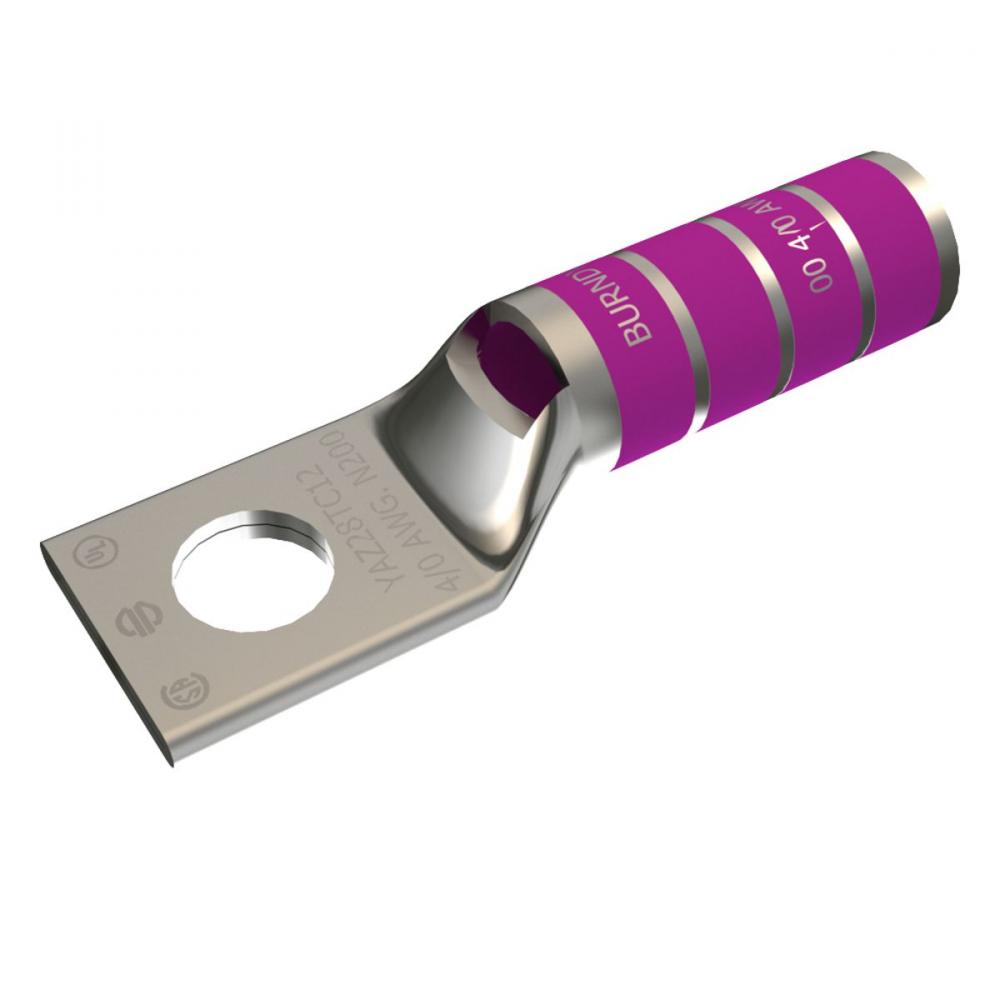

4/0 AWG CU, One Hole, 1/2 Stud Size, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Purple Color Code, 15 Die Index.
Specifications
Details
Product Height:
0.69"
Product Width:
1.02"
Product Length:
3.20"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Purple
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
11.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1-11/16 IN, Tongue Angle: Straight, Color Code: Purple, Tools, Die Set
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Long Barrel, Skive, Tin Plated
UNSPSC:
39121405
Voltage Rating:
35
Weight:
.138 L
