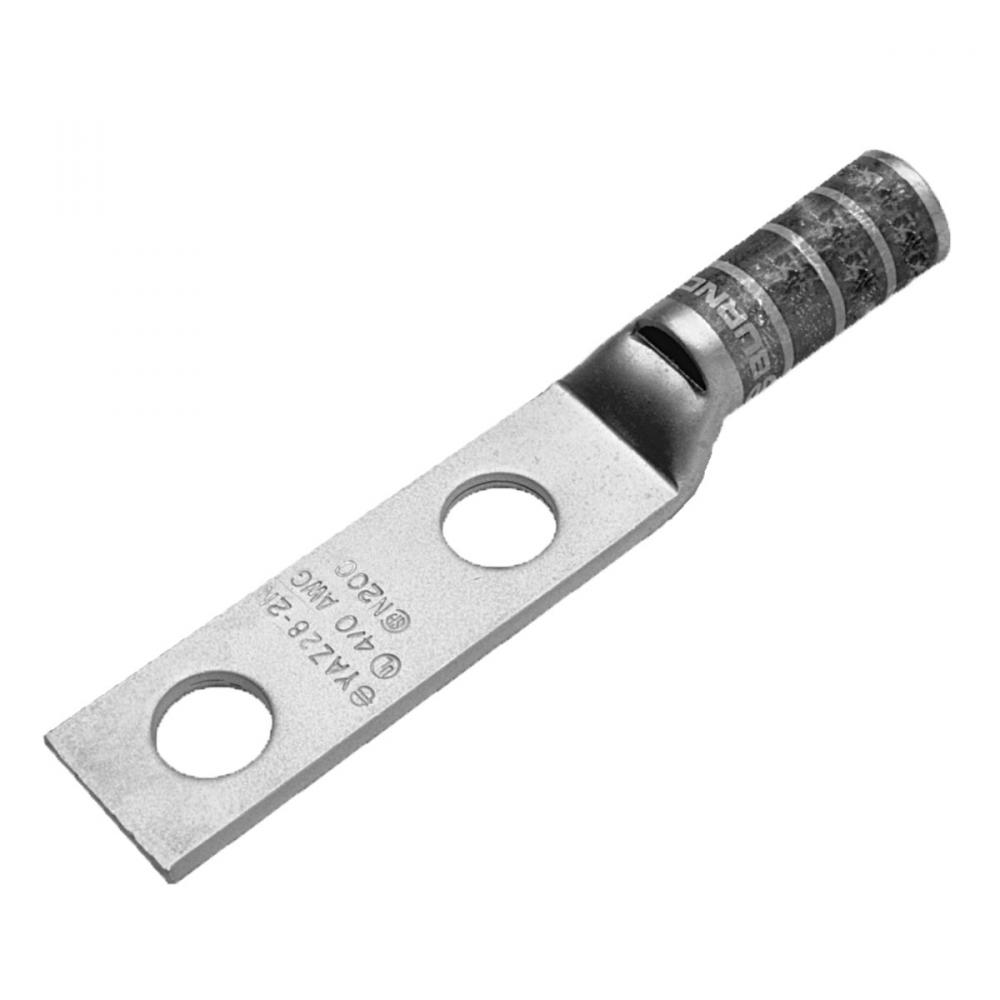

CU HYLUG 700KCMIL 2HOLE NT FLEX

Burndy-US, a Hubbell affiliate
CU HYLUG 700KCMIL 2HOLE NT FLEX

Part Number: YAZ382NNTFX
UPC: 00781810166086
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Color Code...
Changes Selections Above Type...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Pink Color Code, L99 Die Index, Tongue Width=1.62 in.
Specifications
Details
Product Height:
1.25"
Product Width:
1.62"
Product Length:
6.72"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Pink
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
11.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Wire Strip Length: 2-7/8 IN, Temperature Rating: 90 DEG C, Die Index: L99, Finish: Electro-Tin Plated, Tongue Angle: Straight, Color Code: Pink, To
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
YAZ-2-NTFX, Long Barrel Narrow Tongue
UNSPSC:
39121405
Voltage Rating:
35
Weight:
.926 L
