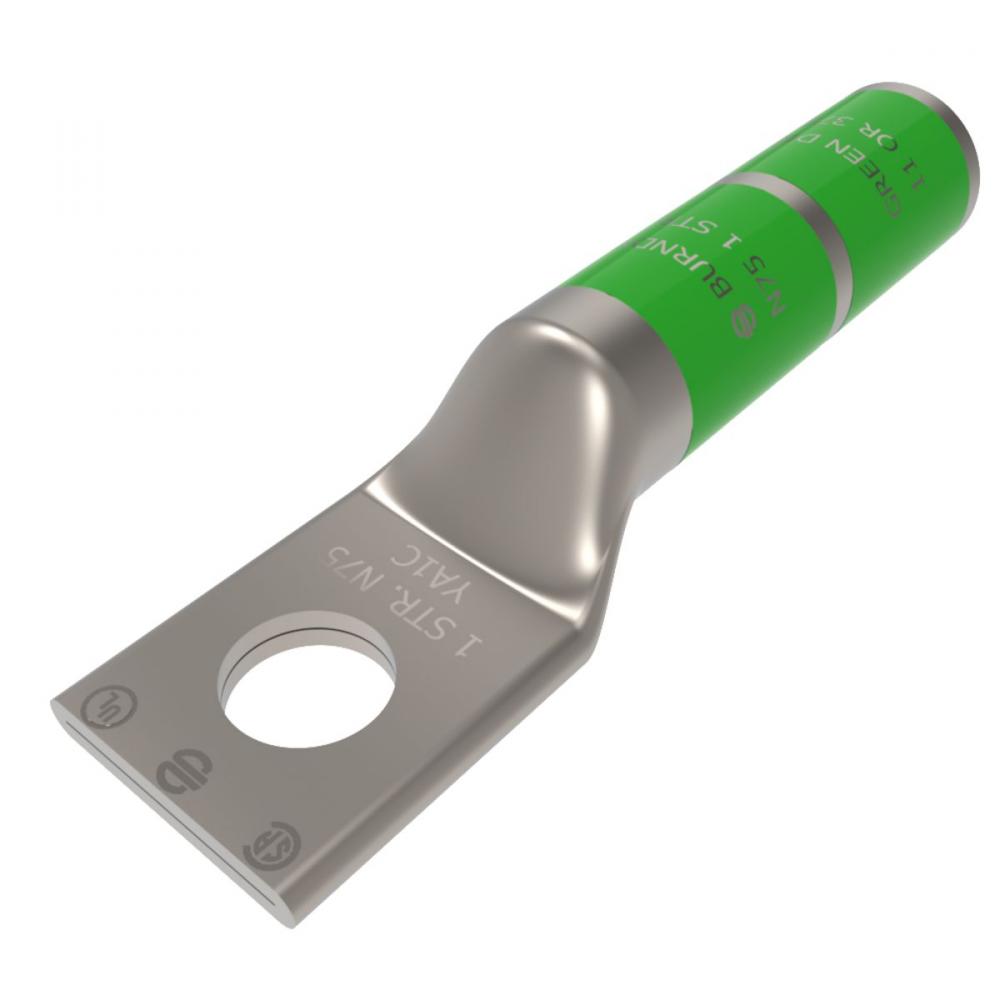

1STR CU 1-HOLE LONG, SD

Burndy-US, a Hubbell affiliate
1STR CU 1-HOLE LONG, SD

Part Number: YA1C
UPC: 00781810500309
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Lead Time...
Changes Selections Above Type...
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
1 AWG CU, One Hole, 5/16 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV,GREEN Color Code, 11 or 375 Die Index.
Specifications
Details
Product Height:
0.46"
Product Width:
0.68"
Product Length:
2.45"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Lugs
Application:
Wire Termination
Brand Name:
BURNDY
Brochure:
Manufacturer Brochure
Color Code:
Green
Country Of Origin:
US
Installation Link:
Installation Instructions
Lead Time:
10.000 WK
Line Drawing Link:
Line Drawing
Material:
Copper
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Spec Sheet:
Spec Link
Special Features:
Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 11, Wire Strip Length: 1-7/16 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number O
Standard:
UL 486A-486B
Sub Brand:
HYLUG
Tech Drawing Link:
Tech Drawing
Type:
Long Barrel, Tin Plated
UNSPSC:
39121405
Voltage Rating:
35
Weight:
.050 L
