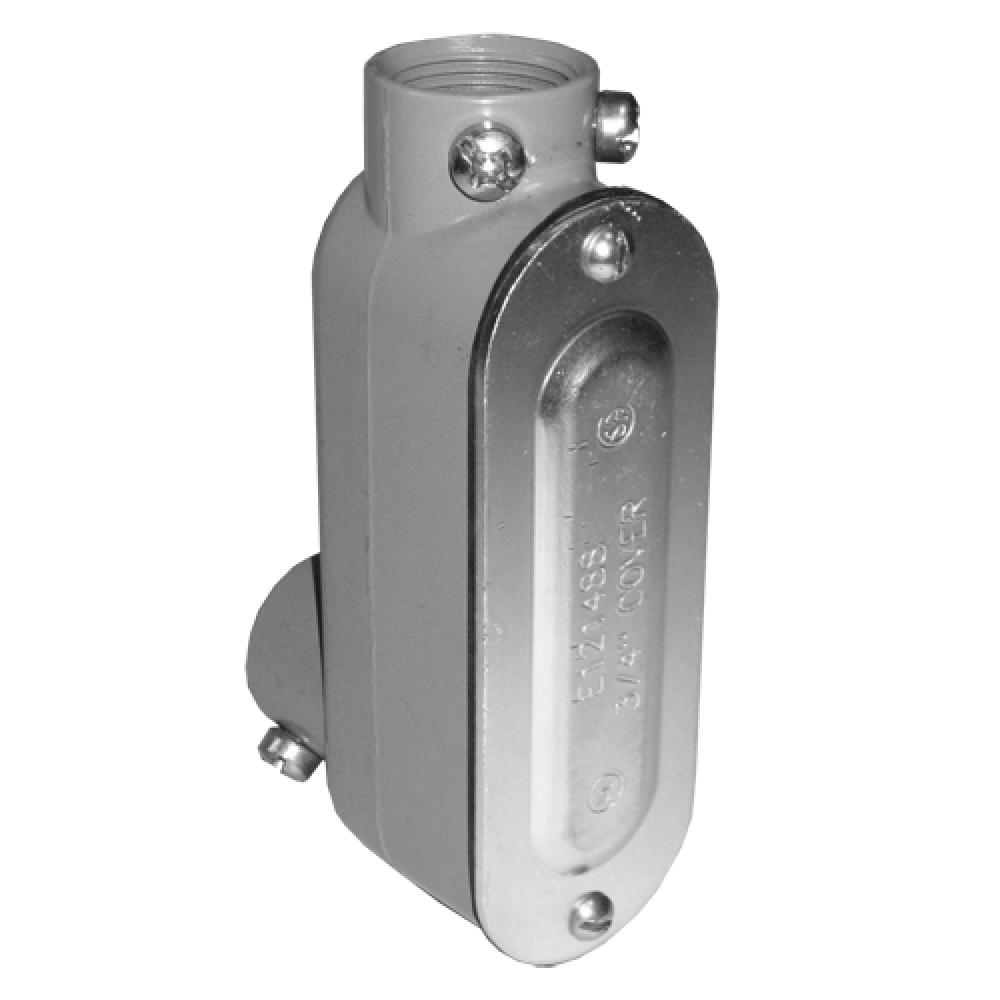

1 IN ALUM LB BDY CVR GSKT

APPOZGCOMM
1 IN ALUM LB BDY CVR GSKT

Part Number: LB100DCGSST
UPC: 00687855000968
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Hub Size...
Changes Selections Above Length...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
EMT Conduit Bodies, Type:Multi-Hub Body, Cover, Gasket Assemblies, Material: Body Diecast Copperfree Aluminum/Epoxy Powder Coat, Cover Stamped Aluminum, Gasket Neoprene, UL Standard: 514A, Trade Size 1, Dimension: Length 5.79 Inches, Width 1.74 Inches,
Specifications
Details
Product Height:
1.00"
Product Width:
6.00"
Product Length:
10.00"
Electrical Category:
Conduit and Fittings
Electrical Subcategory:
Conduit Fittings
Application:
Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends
Brand Name:
APPOZGCOMM
Country Of Origin:
IN
Finish:
Epoxy Powder Coat
Height:
2.98
Hub Size:
1
Length:
6.440000000000000
Material:
Die Cast Aluminum
Order Minimum:
5.000 EA
Order Multiple:
5.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
1 IN Trade Size, Type LB Aluminum Conduit Furnished With Threads and Set Screws, Maximum No. of Conductors 3 - #2 AWG, Volume 32.30 IN³, Furnished with Stamped Aluminum Cover and Neoprene Gasket, For Use With Rigid, IMC and EMT Conduit
Standard:
UL Standard: 514A; UL Listed: E53330; CSA Standard: C22.2 No. 18.3; CSA Certified: 208044; NEMA: FB-1
Stock Type:
Shelf Stock
Sub Brand:
NEER
Type:
Conduit Body
UNSPSC:
39131708
Weight:
.600 L
Width:
1.740000000000000
