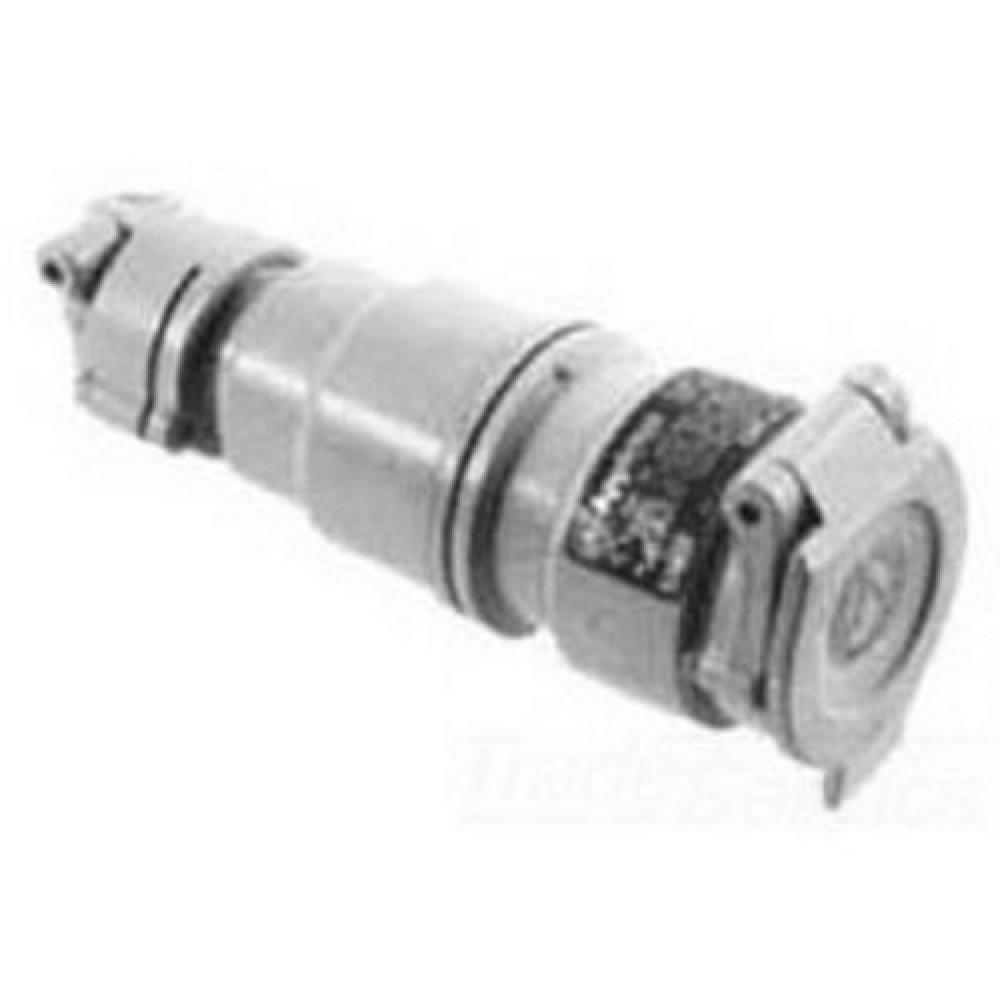

U-LINE CORD CONNECTOR 20A 125V

Appleton Electric
U-LINE CORD CONNECTOR 20A 125V

Part Number: ECC2023
UPC: 00781381440691
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Type...
Changes Selections Above Voltage Rating...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
U-Line Cable Connector Without Spring Cover, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 7BCD, 9FG, Motor Horsep
Specifications
Details
Product Height:
4.00"
Product Width:
5.00"
Product Length:
7.60"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For Connecting Portable Devices Having ECP U-Line Plugs To Existing Receptacles In Non-Hazardous Areas
Brand Name:
Appleton
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating:
NEMA 3, 3R, 7BCD, 9FG
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Completed adapter set consists of ECCL (or ECC), short flexible cord and plug to fit existing receptacle; Gasketed spring cover snaps shut to protect against moisture and combustible dust; Gasket in receptacle throat seals around plug for protection agains
Standard:
Class I, Division 1 And 2, Groups B, C, D; Class II, Division, 1 and 2 Groups F, G; Class III; CSA Standard: C22.2 No.25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
Sub Brand:
U-Line
Type:
Cable Connector Without Spring Cover
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Warranty Information
Weight:
2.000 L
