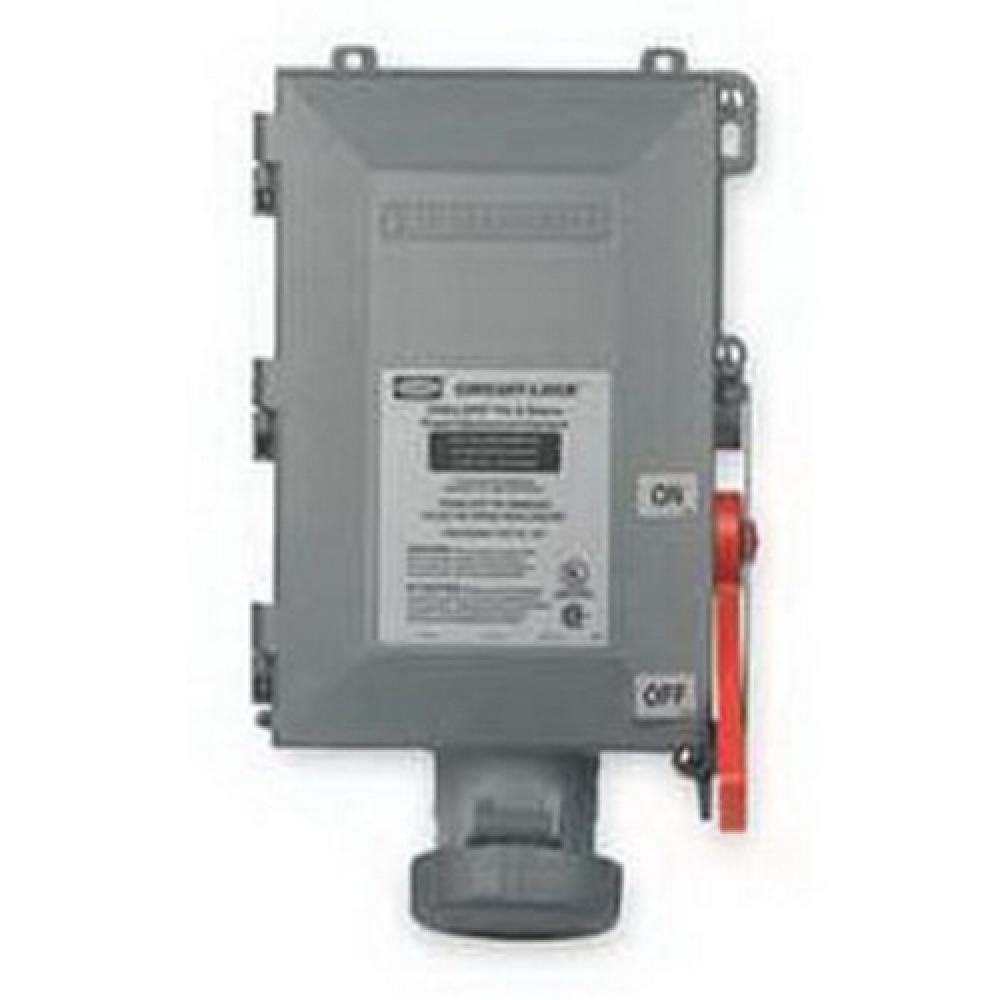

SQ-D RCPT ASSY 60A FUSED

Appleton Electric
SQ-D RCPT ASSY 60A FUSED

Part Number: WSRD6352N4SD
UPC: 00781381090483
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above NEMA Rating...
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Fused WSRD Series Interlocked Receptacle With Enclosure, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50/60 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of
Specifications
Details
Product Height:
8.00"
Product Width:
12.00"
Product Length:
33.00"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
60
Application:
For ACP6034BC Mating Plug
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Country Of Origin:
US
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Stainless Steel Enclosure
Mounting:
Surface Mount
NEMA Rating:
NEMA 3, 3R, 4, 4X, 12
Number Of Poles:
4
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Without viewing window; With enclosed disconnect switch; For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug; For use where an interlocked disconnect switch is desired to control a Po
Standard:
UL 98, UL 50E, UL 1682, UL 1686; UL Listed: E145917, E160652; CSA Standard: C22.2 No.4, C22.2 No. 182.1; CSA Certified: 025875
Type:
Fused WSRD Series Interlocked Receptacle With Enclosure
UNSPSC:
39121406
Voltage Rating:
600 VAC At 50/60 HZ, 250 VDC
Warranty Link:
Warranty Information
Weight:
31.000 L
Wire Size:
6 - 2
