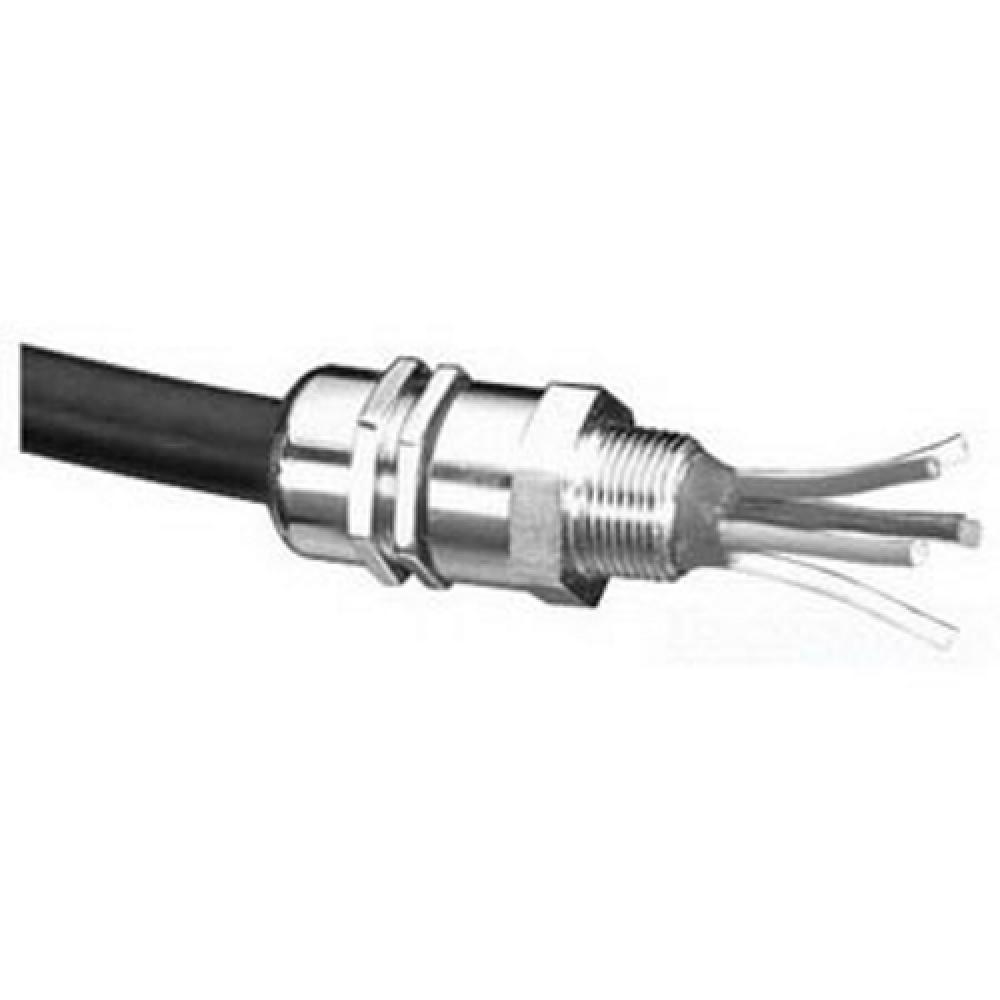

PXSS2K CABLE GLAND 150NPT

Appleton Electric
PXSS2K CABLE GLAND 150NPT

Part Number: 50SPX1505
UPC: 00781381249836
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Conductor Range...
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
PXSS2K Series Standard Cable Gland Connector, Size: 1-1/2 IN (50S ), Conductor Range: 1.16 - 1-1/2 IN, Material: Brass, Finish: Nickel Plated, Enclosure: IP66, IP67, IP68, Nema Rating: NEMA 4X, Temperature Rating: -60 To 100 DEG C, Connection: NPT, Dimensions: 2.362 IN Across Flat X 2.618 IN Across Corner X 3-3/49 IN Length, Minimum Thread Length: 0.787 IN, Maximum Number Of Cores: 122, Standard: UL 2225, E161256, CSA C22.2 No. 174, 101909, Deluge Protection To DTS01: 91, Code Of Protection Category: ATEX II 2 GD Ex d IIC And Ex e II, Ex nR II, Ex tD A21, Equipment Zone I, Zone 2, Zone 21 And Zone 22 - Gas Groups IIA, IIB, IIC, For Unarmored, Tray And Shipboard Cables
Specifications
Details
Product Height:
0.66"
Product Width:
7.50"
Product Length:
11.20"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Unarmored, Tray And Shipboard Cables
Brand Name:
Appleton
Conductor Range:
1.16 - 1-1/2
Connection:
NPT
Country Of Origin:
GB
Enclosure:
IP66, IP67, IP68
Finish:
Nickel Plated
Material:
Brass
NEMA Rating:
NEMA 4X
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1-1/2 IN (50S )
Spec Sheet:
Spec Link
Special Features:
Flame proof compound barrier; Connector provides an environmental seal on the cable jacket and an explosion proof compound barrier seal around the cable inner cores; Sealing technique - SOLO LSF (low smoke fumes) thermoplastic elastomer displacement seal c
Standard:
UL 2225, E161256, CSA C22.2 No. 174, 101909, Deluge Protection To DTS01: 91, Code Of Protection Category: ATEX II 2 GD Ex d IIC And Ex e II, Ex nR II, Ex tD A21, Equipment Zone I, Zone 2, Zone 21 And Zone 22 - Gas Groups IIA, IIB, IIC
Temperature Rating:
-60 To 100
Type:
PXSS2K Series Standard Cable Gland Connector
UNSPSC:
39121431
Warranty Link:
Warranty Information
Weight:
1.780 L
