PX2KX CABLE GLAND 200NPT

Appleton Electric
PX2KX CABLE GLAND 200NPT

Part Number: 50PX2KX2005
UPC: 00781381250351
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

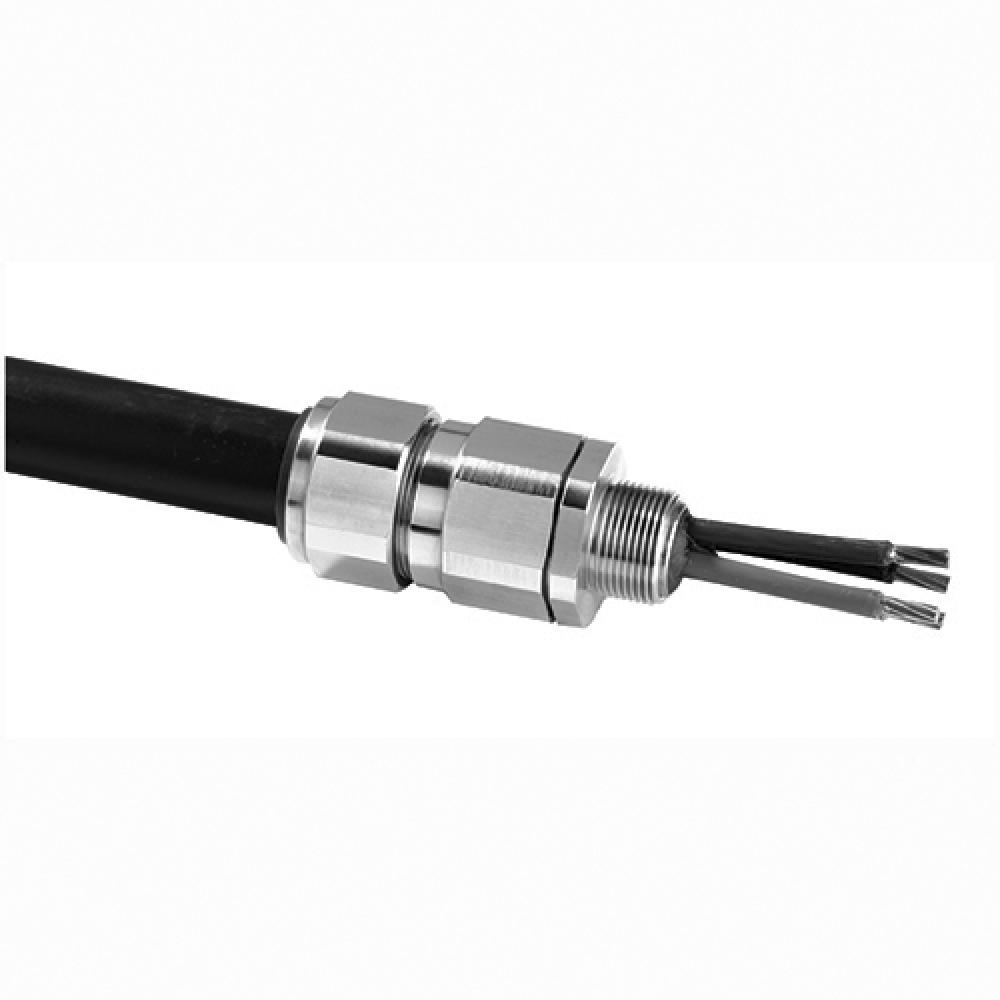

Cable Gland, Type Straight, Thread Size 2 Inch NPT, Constructional Feature Explosionproof, Cable Type Wire Braid Armored, Jacketed, Marine Shipboard Cable, Cable Outer Diameter 1.59 to 2.09 Inch, Material Nickel Plated Brass, Enclosure NEMA 4X, IP66/IP67/IP68, Approval UL 2225, CSA C22.2, ATEX/IECEx, Applicable Standard IEC 60079-0/60079-1/60079-7/60079-15/60079-31, Seal Material Low Smoke Fume Thermoplastic Elastomer, Epoxy Putty, Thread Size 0.59 Inch L, Maximum Cable Bedding Diameter 1.59 Inch, Maximum Number of Cores 3.5 Inch, Weight 0.86 Kg
Specifications
Details
Product Height:
0.53"
Product Width:
12.50"
Product Length:
15.80"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Country Of Origin:
GB
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
UNSPSC:
39121431
Weight:
3.365 L
