PLG NON-METALLIC 60A POWERTITE

Appleton Electric

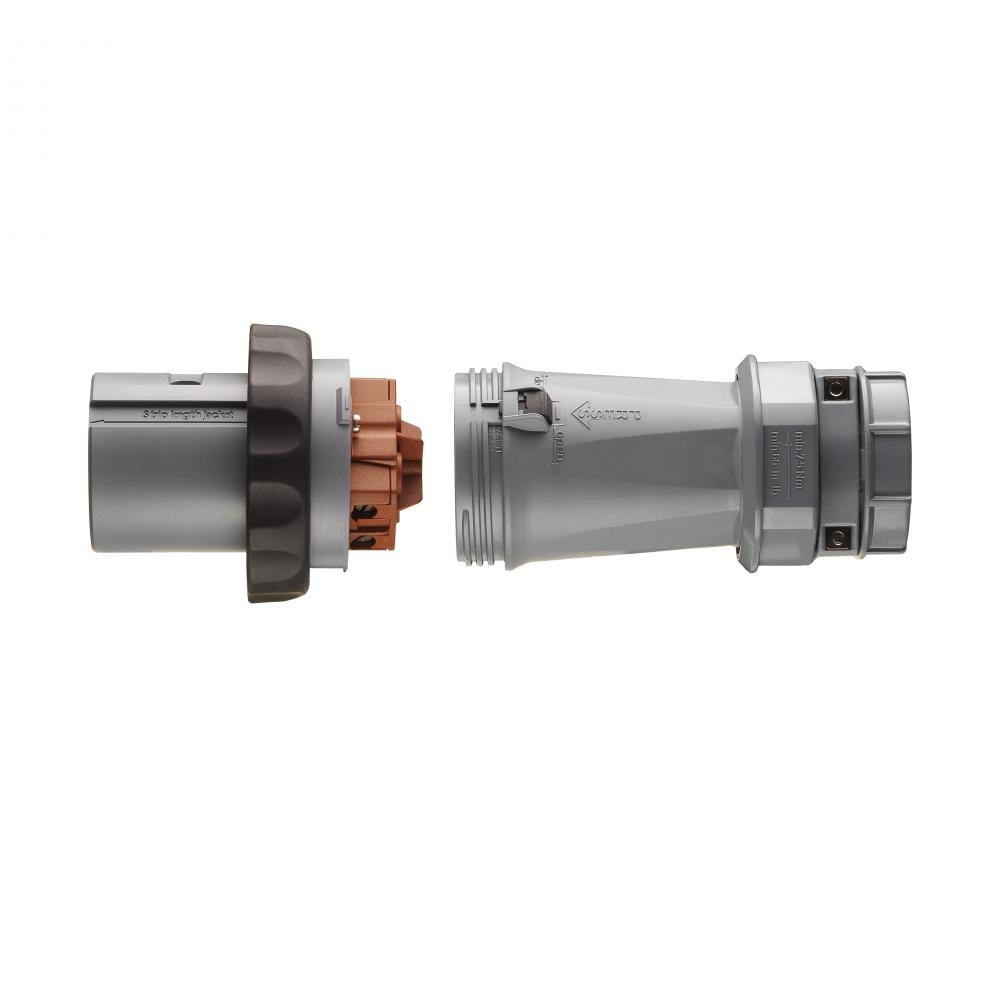

PLG NON-METALLIC 60A POWERTITE

Part Number: NMACP6034BC
UPC: 00781381141109
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Pin and Sleeve Clamping Ring Plug, Constructional Feature Raintight, Voltage Rating 600 VAC/250 VDC 3 Phase at 50 to 400 Hz, Current Rating 60 Ampere, Number of Poles 4, Number of Wires 3, Grounding Style 2, Shell, Extra pole, Minimum Cable Outer Diameter 0.39 Inch, Maximum Cable Outer Diameter 1.375 Inch, Material Epoxy Powder Coated Copper-Free Aluminum, Approval UL 1682/1686/50E/ E145916/E145917, CSA C22.2
Specifications
Details
Product Height:
5.00"
Product Width:
4.50"
Product Length:
11.10"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Country Of Origin:
DE
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
UNSPSC:
39121402
Weight:
2.000 L
