Appleton Electric

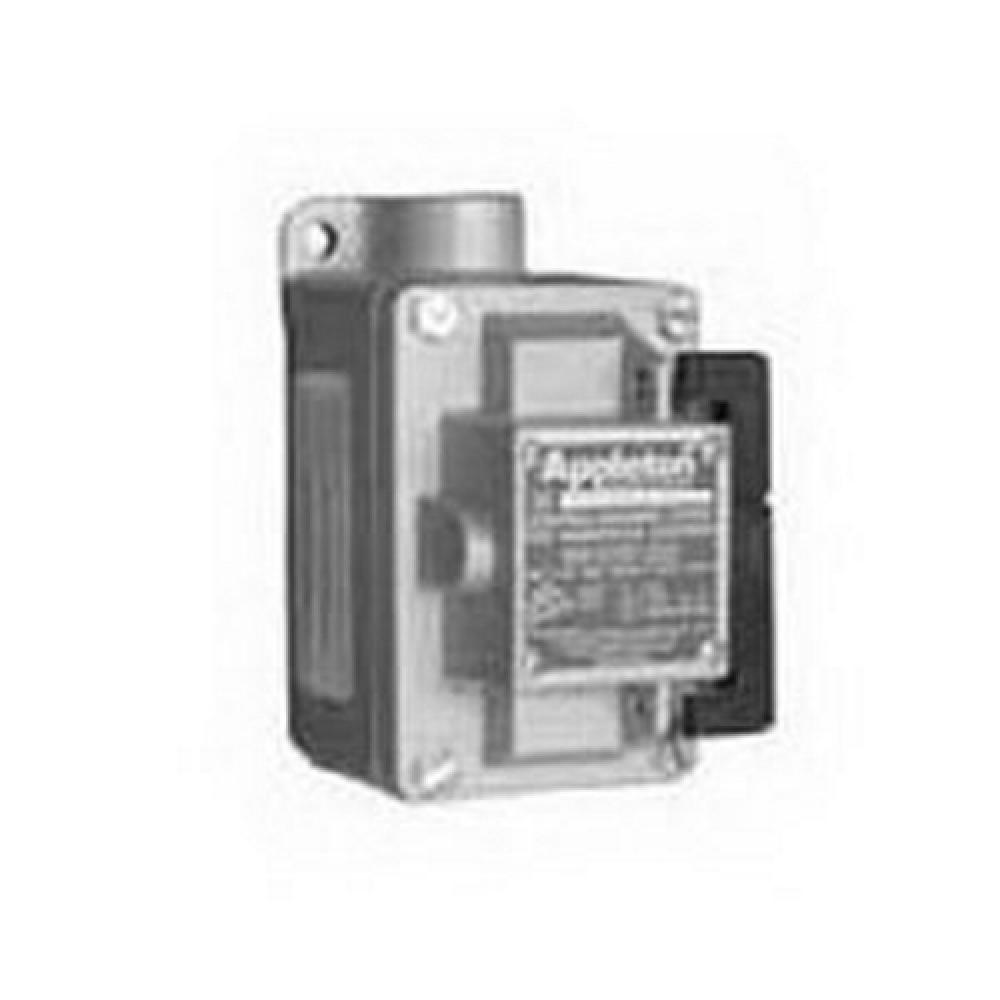

FACTORY SEALED SWITCH UNILET
Part Number: EDS175-R1
UPC: 00781381450249
Call for Price
- Manufacturer may be Out Of Stock.
Quantity:
Changes Selections Above Type...
Changes Selections Above Mounting...
Product Overview
UNILETS EDS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Actuator: Rocker Arm, Enclosure: NEMA 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.5 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Specifications
Details
Product Height:
4.50"
Product Width:
5.70"
Product Length:
7.20"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Amperage Rating:
20
Application:
For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Brand Name:
Appleton
Country Of Origin:
MX
Enclosure:
NEMA 7CD, 9EFG
Mounting:
Surface Mount With 3/4 IN Dead-End Hub
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth gr
Standard:
UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III
Sub Brand:
UNILETS
Type:
EDS Series 1-Gang Tumbler Switch
UNSPSC:
39121565
Voltage Rating:
120 - 277
Warranty Link:
Weight:
5.500 L
