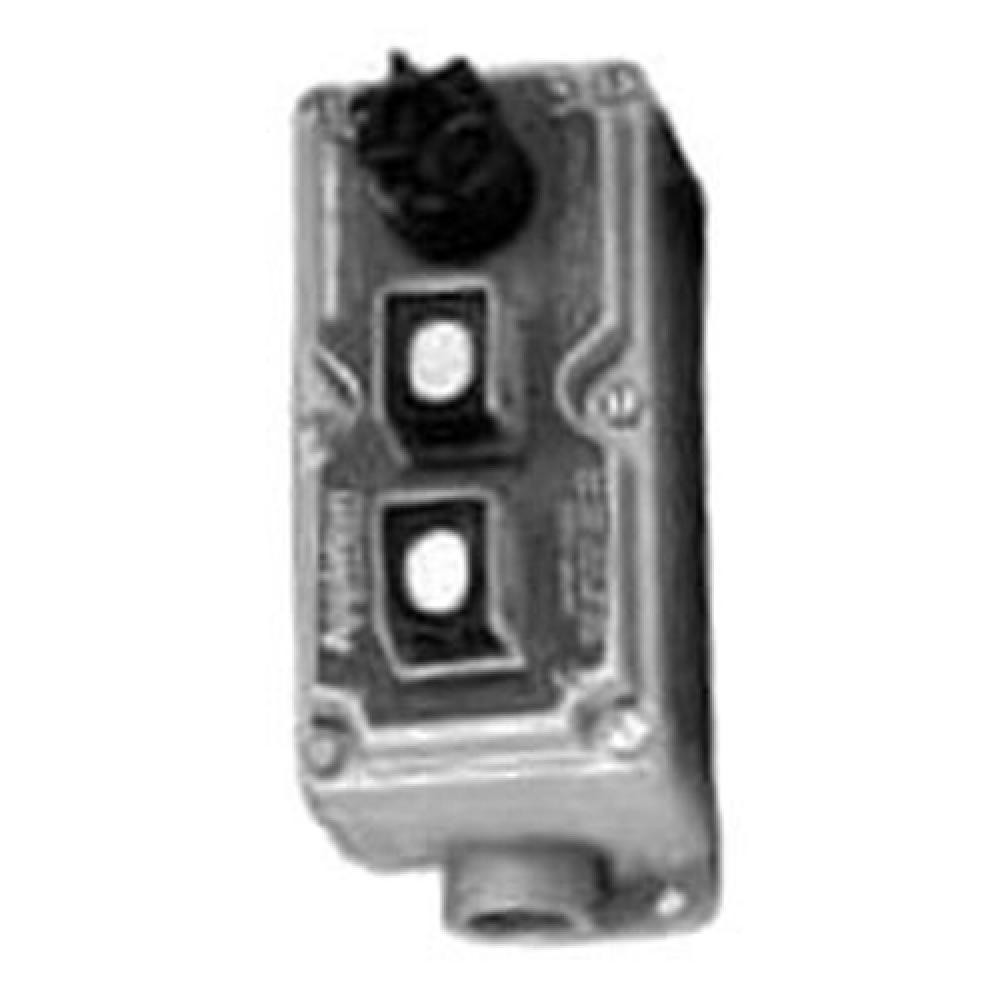

EFD 3-DEVICE 1 PILOT 2 PB 3/4

Appleton Electric
EFD 3-DEVICE 1 PILOT 2 PB 3/4

Part Number: EFDCL75-J1U2
UPC: 00781381133036
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Conduit Connection...
Changes Selections Above Type...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
EFDCL Series 3 Device Pilot Light, Voltage Rating: 600 VAC, Amperage Rating: 10 AMP, Enclosure: NEMA 3, 7CD, 9EFG, Conduit Connection: 3/4 IN Feed-Thru, Consist Of: (1) Pilot Light, (2) Pushbutton, Material: Malleable Iron Body With Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Lamp Type: S6, Height: 8.13 IN, Width: 3.5 IN, Depth: 5.5 IN, Legend: Start/Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, D, Class I, Division 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Specifications
Details
Product Height:
9.80"
Product Width:
6.20"
Product Length:
11.10"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Amperage Rating:
10
Application:
For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Brand Name:
Appleton
Conduit Connection:
3/4 IN Feed-Thru
Country Of Origin:
MX
Enclosure:
NEMA 3, 7CD, 9EFG
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, mainte
Standard:
UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, D, Class I, Division 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
Type:
EFDCL Series 3 Device Pilot Light
UNSPSC:
39121565
Voltage Rating:
600
Warranty Link:
Warranty Information
Weight:
7.050 L
