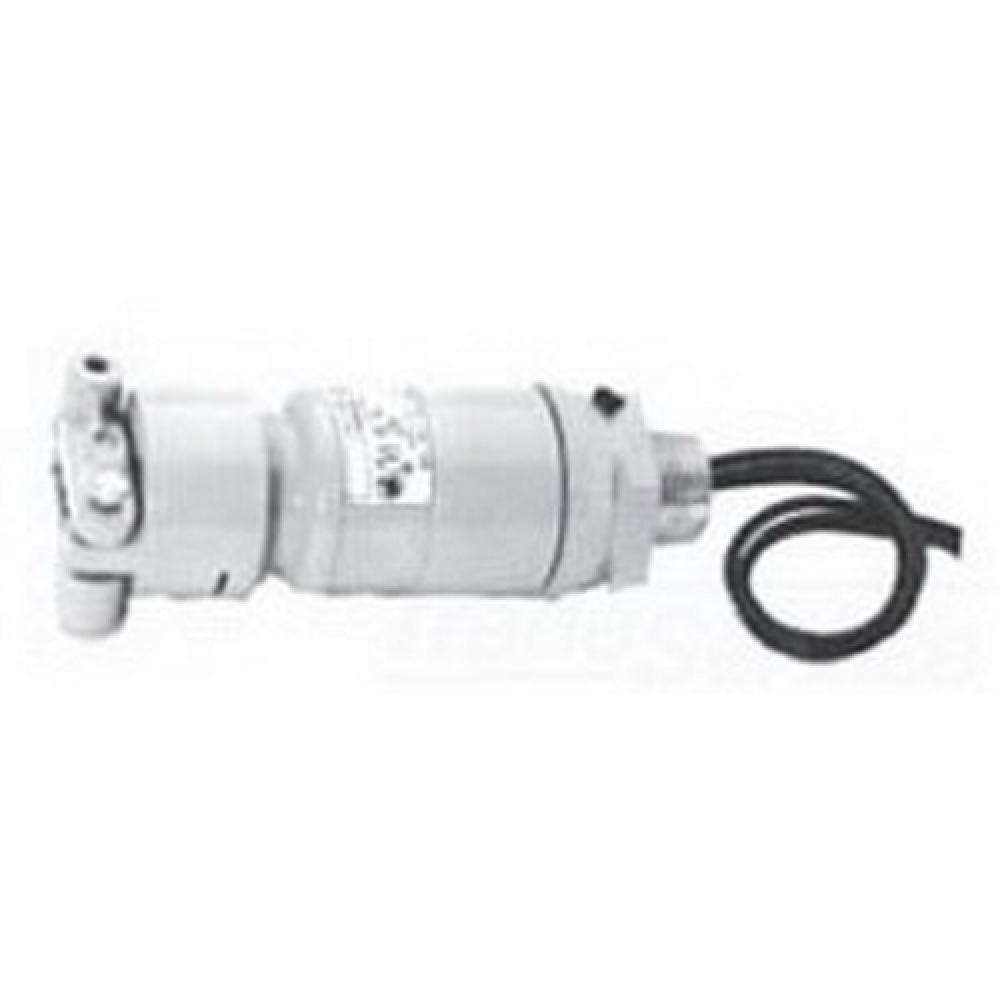

ECC CABLE CONNECTOR .250-.375

Appleton Electric
ECC CABLE CONNECTOR .250-.375

Part Number: ECC755RH
UPC: 00781381248808
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
ECC Series Portable Cord Connector, Wire Size: 18 - 12 AWG, Amperage Rating: 20 AMP, Voltage Rating: 480 VAC/VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 7BCD, 9G, Size: 3/4 IN Nipple, Finish: Epoxy Powder Coat, Cord Diameter: 3/8 - 1/2 IN, Dimensions: 1.84 IN Width X 1.88 IN Height X 5.53 IN Depth, Standard: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Group G, Class III, UL1203, UL Listed: E10444, For Use With 18 - 12 AWG 3-Conductor Type S Or SO Cord
Specifications
Details
Product Height:
0.62"
Product Width:
11.00"
Product Length:
17.10"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For Use With 18 - 12 AWG 3-Conductor Type S Or SO Cord
Brand Name:
Appleton
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating:
NEMA 7BCD, 9G
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
3/4 IN Nipple
Spec Sheet:
Spec Link
Special Features:
Explosionproof, dust-ignitionproof; ECC connects portable cord to explosionproof fixed enclosure; Watertight; Furnished with 90 DEG C wire leads; 12 IN leads of #12 stranded wire are furnished for connection to wiring or equipment within the explosion-proo
Standard:
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Group G; Class III; UL1203; UL Listed: E10444
Type:
ECC Series Portable Cord Connector
UNSPSC:
39121406
Voltage Rating:
480
Warranty Link:
Warranty Information
Weight:
.860 L
Wire Size:
18 - 12
