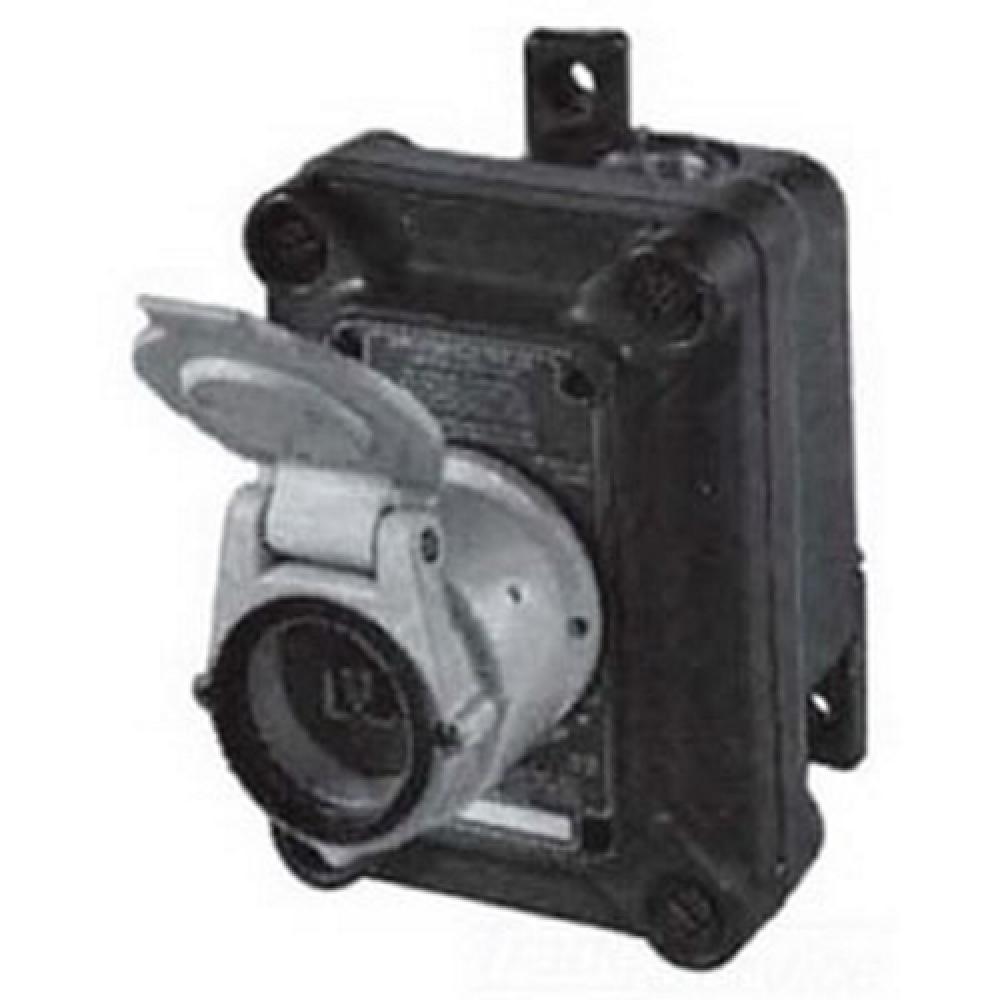

DIV 1 20A 125V RECEPT STATION

Appleton Electric
DIV 1 20A 125V RECEPT STATION

Part Number: N1DC75-2023
UPC: 00781381476096
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Appleton U-Line N1 Series Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Aluminum Receptacle, High Strength Thermoplastic Polyetherimide Mounting Box, Color: Natural Mounting Box, Nema Rating: NEMA 3, 3R, 3RX, 4X, 7CD, 12, Mounting: Surface Mount With 1/2 Or 3/4 IN Feed-Thru Hub, Motor Horsepower: 1 HP, Finish: Epoxy Powder Coat Receptacle, Dimensions: 6.19 IN Height X 7.62 IN Depth, Standard: Class I, Division 1, Groups C, D, Class I, Division 2, Groups B, C, D, UL 1010 (UL 1203), UL Listed: E10784, For ECP And NCP Mating Plugs
Specifications
Details
Product Height:
5.20"
Product Width:
6.80"
Product Length:
9.00"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For ECP And NCP Mating Plugs
Brand Name:
Appleton
Color:
Natural Mounting Box
Country Of Origin:
MX
Material:
Aluminum Receptacle, High Strength Thermoplastic Polyetherimide Mounting Box
Mounting:
Surface Mount With 1/2 or 3/4 IN Feed-Thru Hub
NEMA Rating:
NEMA 3, 3R, 3RX, 4X, 7CD, 12
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Explosionproof; Delayed-action safety construction; Nonmetallic construction with metal imbedded grounding grid; feed-through or dead-end grounded 1/2 IN or 3/4 IN conduit openings for threaded conduit; Special grounding wire provides safe grounding when c
Standard:
Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; UL 1010 (UL 1203); UL Listed: E10784
Sub Brand:
U-Line
Type:
N1 Series Receptacle With Mounting Box
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Warranty Information
