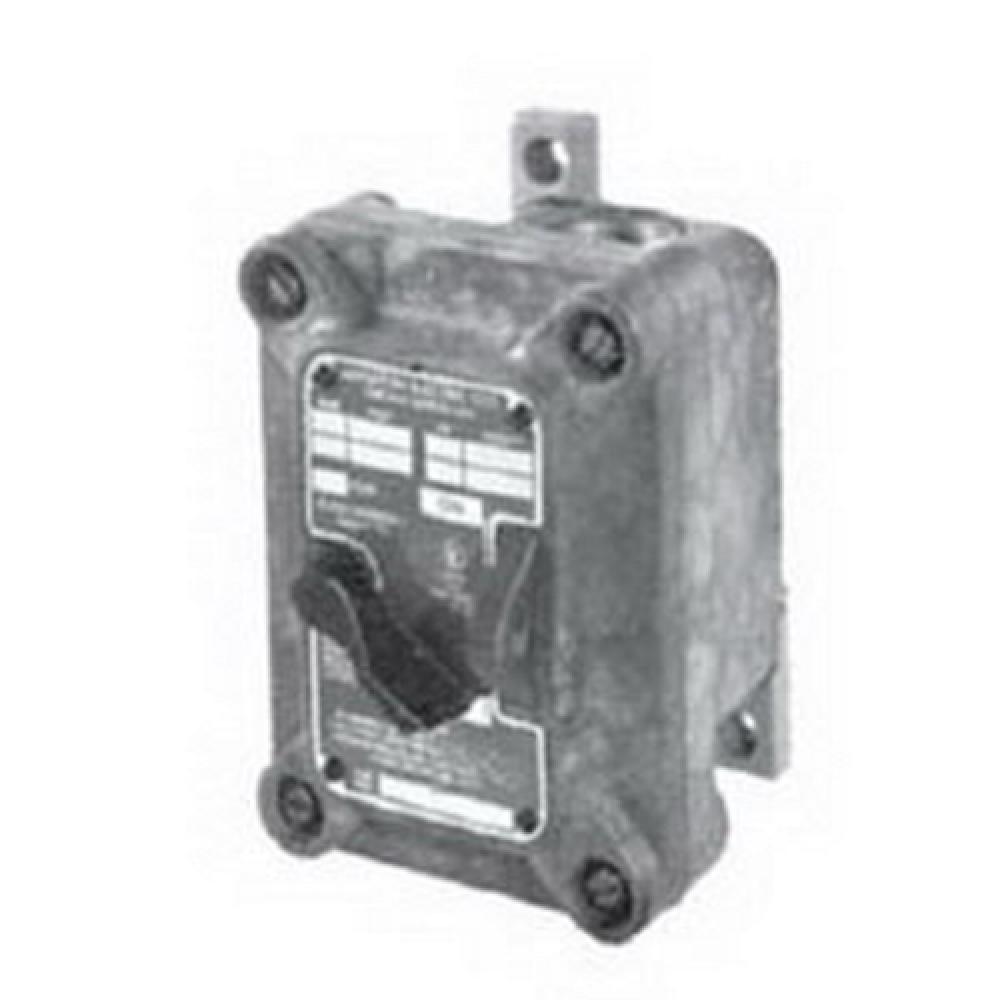

DIV 1 20A 120-277VAC 1P SWITCH

Appleton Electric
DIV 1 20A 120-277VAC 1P SWITCH

Part Number: N1DC75-F1
UPC: 00781381476218
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Intraground N1 Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Actuator: Front Operated, Enclosure: NEMA 3, 4X, 7CD, 12, Mounting: Surface Mount With 1/2 Or 3/4 IN Feed-Thru Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: 30 PCT Glass-Reinforced Thermoplastic Polyetherimide, Height: 6.19 IN, Width: 4.5 IN, Depth: 5.63 IN, Standard: UL 894, UL 1203, E10523 UL Listed, Class I, Division 1 And 2, Groups C, D
Specifications
Details
Product Height:
5.50"
Product Width:
6.70"
Product Length:
6.70"
Electrical Category:
Control And Automation
Electrical Subcategory:
Controls And Accessories
Amperage Rating:
20
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Country Of Origin:
MX
Enclosure:
NEMA 3, 4X, 7CD, 12
Mounting:
Surface Mount With 1/2 or 3/4 IN Feed-Thru Hub
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Nonmetallic construction with metal imbedded grounding grid, no need to install special wires and parts for grounding, feed through or dead-end grounded 1/2 IN or 3/4 IN conduit openings for threaded conduit; Special grounding wire furnished with each box
Standard:
UL 894, UL 1203, E10523 UL Listed, Class I, Division 1 And 2, Groups C, D
Sub Brand:
Intraground
Type:
N1 Series 1-Gang Tumbler Switch
UNSPSC:
39121565
Voltage Rating:
120 - 277
Warranty Link:
Warranty Information
Weight:
3.150 L
