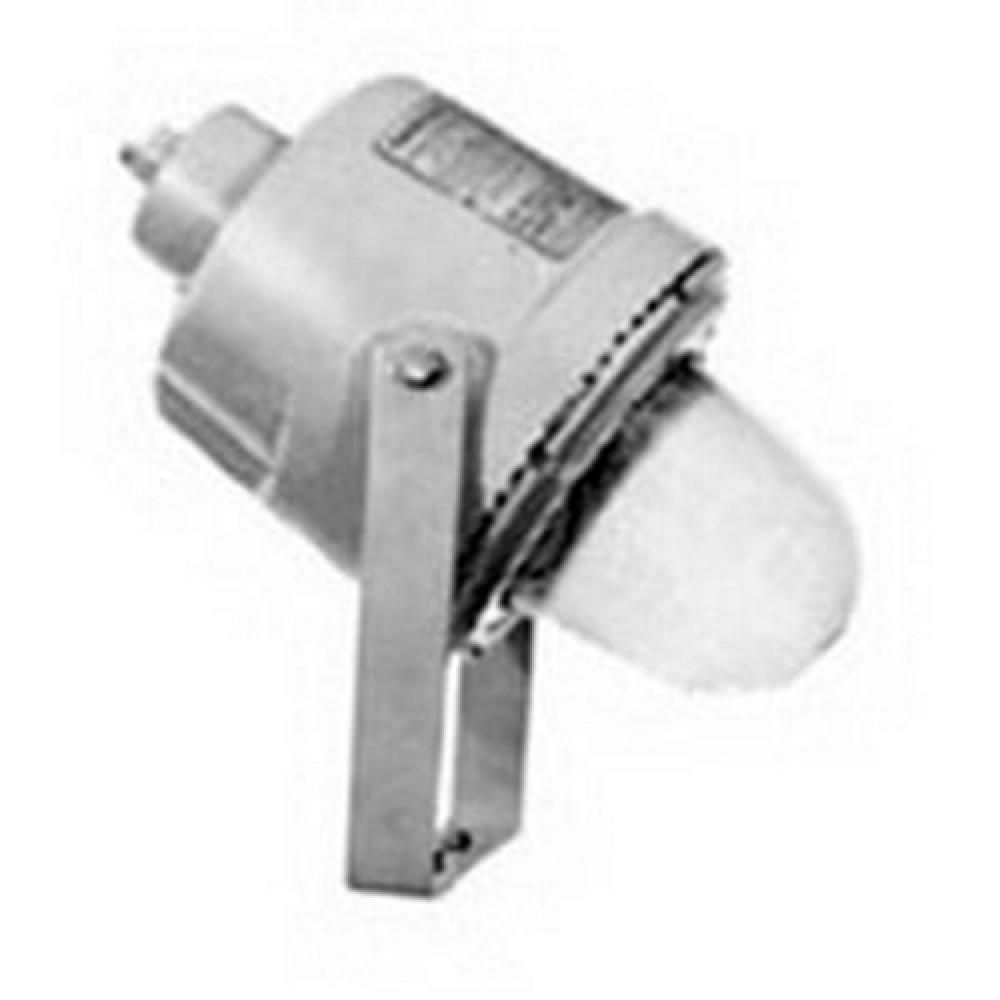

CODE-MAS2 FLOODLIGHT 400W HPS

Appleton Electric
CODE-MAS2 FLOODLIGHT 400W HPS

Part Number: CFL400-MT
UPC: 00781381475716
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Code Master 2 Factory Sealed HID Floodlight Without Guard, Fixture Type: Trunnion, Lamp Type: 400 WTT S51 50000 LM Mogul High Pressure Sodium, Lamp Wattage: 400 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material: Coppe
Specifications
Details
Product Height:
16.00"
Product Width:
16.00"
Product Length:
29.00"
Electrical Category:
Lamps, Bulbs, and Lighting Fixtures
Electrical Subcategory:
Lighting Fixtures
Amperage Rating:
1.35 AMP Starting, 1.7 AMP Operating At 277 V
Application:
For Pipeline Transportation Facilities, At Drilling Rigs And In Production Facilities On Land And Marine Platforms, Pipeline Transportation Facilities, At Drilling Rigs And In Production Facilities On Land And Marine Platforms, Flowing Or Beam Wells In Ope
Ballast Type:
Super Constant Wattage Autotransformer (S. C.W.A.)
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Country Of Origin:
MX
Lamp Type:
400 WTT S51 50000 LM Mogul High Pressure Sodium
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Ballast Housing, Guard And Junction Box, Porcelain Socket, Nickel-Plated Phosphor Bronze Screw Shell, Steel Trunnion Mount
Number Of Lamps:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Arrangement of heat-producing components results in more efficient heat dissipation for cooler fixture operation; All threaded joints are flame-tight; Five threads are always fully engaged in an explosionproof manner; Strategic location of lamp socket in c
Standard:
NEC: Class 1, Division 1 And 2, Groups C, D; CEC: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G*, Class II, Division 2, Groups F, G, Class III, CSA 4X; UL 1598, 844, E10794; CSA C22.2 No.250, C22.2 No.137, 025428
Sub Brand:
Code Master 2
Type:
Factory Sealed HID Floodlight Without Guard
UNSPSC:
39111524
Voltage Rating:
120/208/240/277
Warranty Link:
Warranty Information
