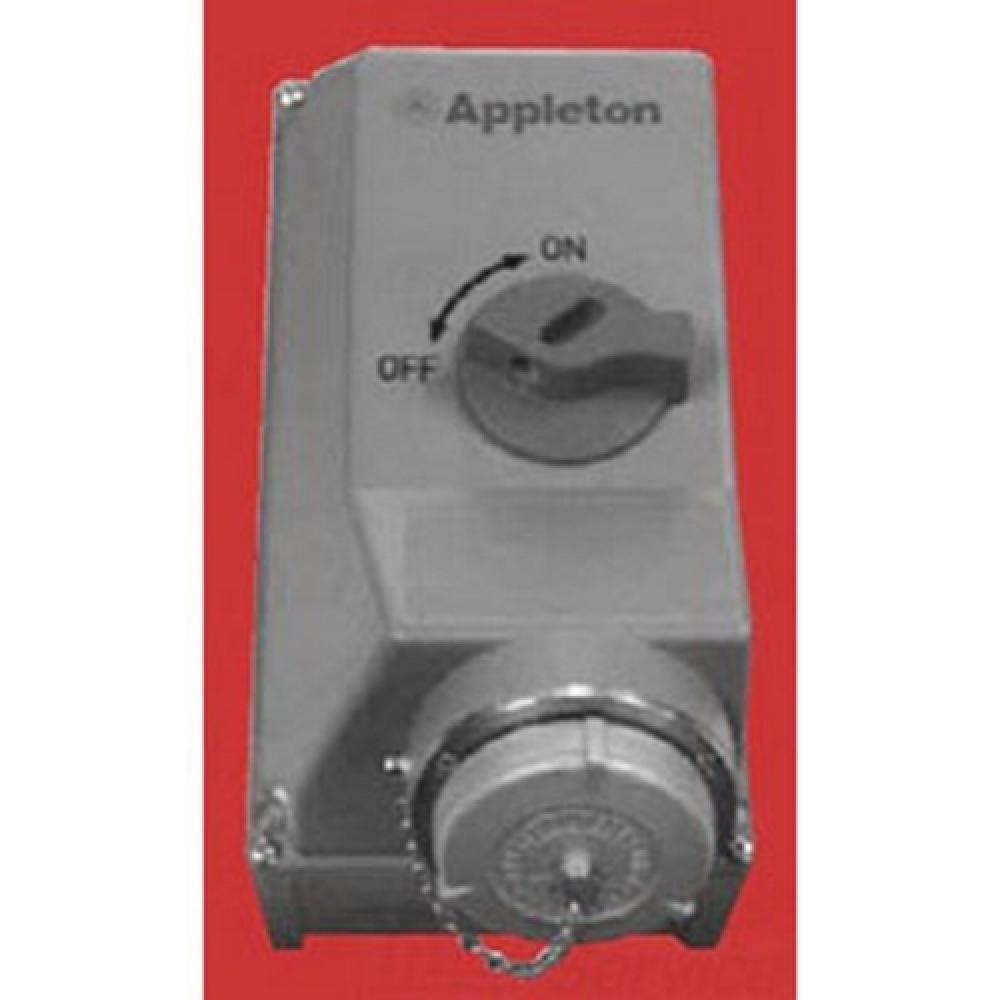

ASR 60A NON-FUSED INTERLOCK

Appleton Electric
ASR 60A NON-FUSED INTERLOCK

Part Number: ASR6034
UPC: 00781381096089
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Non-Fused ASR Series Nonmetallic Interlocked Receptacle, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: VALOX Thermoplastic Polyester Enclosure, Nema Rating: NEMA 4X, 12, M
Specifications
Details
Product Height:
10.00"
Product Width:
7.50"
Product Length:
15.50"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
60
Application:
For ACP Plugs
Brand Name:
Appleton
Country Of Origin:
DE
Material:
VALOX Thermoplastic Polyester Enclosure
Mounting:
Surface Mount
NEMA Rating:
NEMA 4X, 12
Number Of Poles:
4
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
With enclosed disconnect switch; Moveable mounting feet allow for installation on irregular surfaces for easy installation; Internal mounting tubes where mounting area is limited; Hidden hinge system eliminates sanitation concerns; The switch is the latest
Standard:
UL 98, UL 1682, and UL 1686; UL Listed: E304212; CSA Standard: CSA 22.2 No. 4, C22.2 No. 182.1; cUL Listed: E160652
Type:
Non-Fused ASR Series Nonmetallic Interlocked Receptacle
UNSPSC:
39121406
Voltage Rating:
600
Warranty Link:
Warranty Information
Weight:
8.000 L
