A2F CABLE GLAND 050NPT

Appleton Electric
A2F CABLE GLAND 050NPT

Part Number: 20SA2F0505
UPC: 00781381248778
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Size...
Changes Selections Above Conductor Range...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

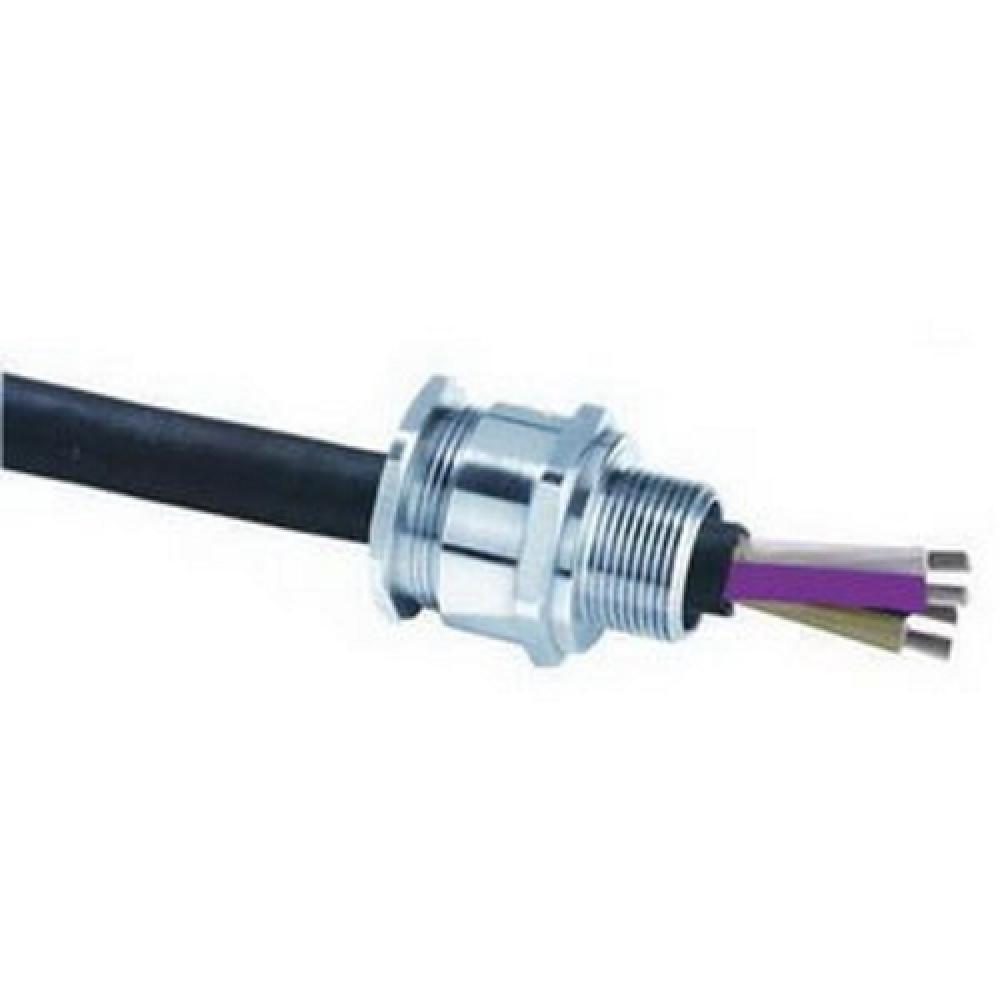

A2F Series Cable Gland Connector, Size: 1/2 IN (20S), Conductor Range: 0.24 - 0.46 IN, Material: Brass, Finish: Nickel Plated, Enclosure: IP66, IP68, Connection: NPT, Dimensions: 0.94 IN Across Flat X 1.05 IN Across Corner X 1.49 IN Le
Specifications
Details
Product Height:
0.03"
Product Width:
11.80"
Product Length:
16.10"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Unarmored Cable
Brand Name:
Appleton
Conductor Range:
0.24 - 0.46
Connection:
NPT
Country Of Origin:
GB
Enclosure:
IP66, IP68
Finish:
Nickel Plated
Material:
Brass
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1/2 IN (20S)
Spec Sheet:
Spec Link
Special Features:
Elastomer displacement low smoke fume thermoplastic seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable; Entry thread seal not supplied
Standard:
Zones 1 And 2, Gas-ATEX/IEC Protection: Ex d IIC, Ex e II, Ex nR II, Zones 21 and 22, Dust-Conforming to ATEX 94/9/CE: CE 0081 II 2 D-ATEX/IEC Protection: Ex tD A21, Conforming To ATEX 94/9/CE: II 2 GD, CE Declaration Of Conformity: DC07001, ATEX Certifica
Stock Type:
Shelf Stock
Type:
A2F Series Cable Gland Connector
UNSPSC:
39121431
Warranty Link:
Warranty Information
Weight:
.161 L
