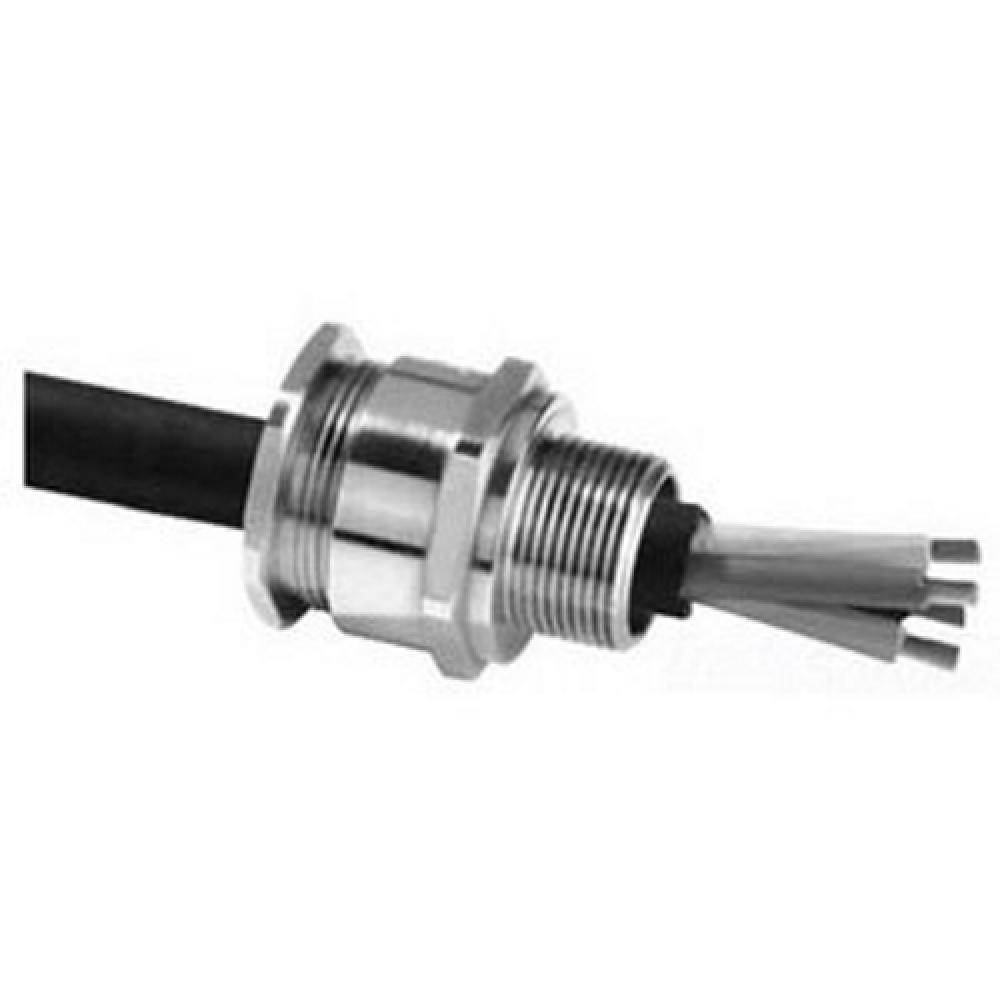

A2 CABLE GLAND 100NPT

Appleton Electric
A2 CABLE GLAND 100NPT

Part Number: 32A21005
UPC: 00781381249133
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
A2 Series Industrial Cable Gland Connector, Size: 1 IN (32), Conductor Range: 0.669 - 1.035 IN, Material: Brass, Finish: Nickel Plated, Enclosure: IP66, IP67, IP68, Dimensions: 1.614 IN Across Flat X 1.772 IN Across Corner X 1.457 IN Length, Minimum Thread Length: 0.394 IN, Standard: CSA C22.2 No. 174, 101909, Deluge Protection - To DTS01: 91, CEPEL/INMENRD: EX-023, SAQAS: AUSEX764, Marine: LLOYDS, DNV, ABS, For All Types Of Unarmored Cable
Specifications
Details
Product Height:
0.15"
Product Width:
7.50"
Product Length:
11.40"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For All Types Of Unarmored Cable
Brand Name:
Appleton
Conductor Range:
0.669 - 1.035
Country Of Origin:
GB
Enclosure:
IP66, IP67, IP68
Finish:
Nickel Plated
Material:
Brass
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1 IN (32)
Spec Sheet:
Spec Link
Special Features:
Indoor and outdoor; Providing mechanical cable retention and an environmental seal on the cable outer sheath; Designed and tested to BS 6121: Part 1: 1989, meets and surpasses the requirements of EN 50262:1999; Brass grade CuZn39Pb3 (CW614N) to EN12168; Ou
Standard:
CSA C22.2 No. 174, 101909, Deluge Protection - To DTS01: 91, CEPEL/INMENRD: EX-023, SAQAS: AUSEX764, Marine: LLOYDS, DNV, ABS
Type:
A2 Series Industrial Cable Gland Connector
UNSPSC:
39121431
Warranty Link:
Warranty Information
Weight:
.302 L
