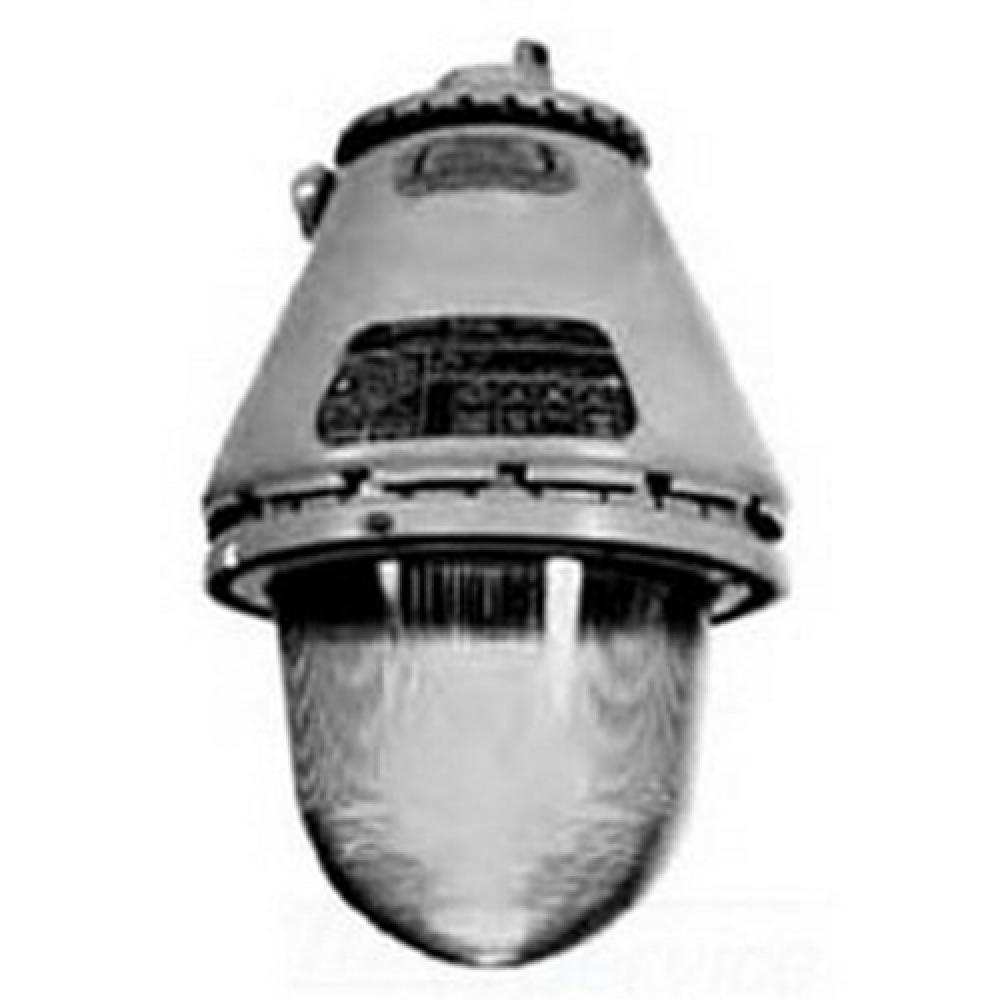

Appleton UNILETS A-51 Series Incandescent Factory Sealed Luminaire Without Guard, Fixture Type: Pendant (Rigid Mounting), Lamp Type: 60 - 100 WTT A21 Medium Incandescent, Lamp Wattage: 60 - 100 WTT, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood, Fixture Wattage: 60 - 100 WTT, Length: 7.06 IN, Width: 7.06 IN, Height: 12.63 IN, Housing Finish: Epoxy-Clad And Powder Coat Fixture, Guard And Mounting Hood, Housing Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Ambient Temperature Range: 40 DEG C, Temperature Range: 125 DEG C Supply Wire, Lens Material: Explosionproof And Heat And Impact-Resistant Glass Globe, Hub Size: 3/4 IN, Number Of Hubs: 1, Standard: Group A And B: Class I, Division 1 And 2, Groups A , B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, Group C And D: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137,CSA 025428, Ideal For Use In Chemical And Petrochemical Plants And In Other Heavy Process Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Atmospheres May Be Present, Suitable For Use In Wet Locations, Use With Threaded Metal Conduit

Specifications

Details

Product Height:

10.00"

Product Width:

10.10"

Product Length:

17.20"

Electrical Category:

Lamps, Bulbs, and Lighting Fixtures

Electrical Subcategory:

Lighting Fixtures

Application:

Ideal For Use In Chemical And Petrochemical Plants And In Other Heavy Process Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Atmospheres May Be Present; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit

Brand Name:

Appleton

Country Of Origin:

Height:

12.63

Lamp Type:

60 - 100 WTT A21 Medium Incandescent

Length:

7.06

Material:

Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood

Number Of Lamps:

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Contact Manufacturer

Spec Sheet:

Spec Link

Special Features:

All A-51 fixtures are factory-sealed, no external sealing fittings required; New high temperature phenolic connection block in mounting hood has rugged leaf spring contacts - loosen two screws, rotate and remove for quick wiring; Safe, easy servicing or re

Standard:

Group A And B: Class I, Division 1 And 2, Groups A , B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; Group C And D: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III; UL 1598, UL 844, UL E10444, C

Sub Brand:

UNILETS

Type:

A-51 Series Incandescent Factory Sealed Luminaire Without Guard

UNSPSC:

39111525

Warranty Link:

Warranty Information

Width:

7.06

Appleton Electric A-51 FIXTURE 100W UNIT-PACK

Appleton Electric
A-51 FIXTURE 100W UNIT-PACK
