Appleton Electric

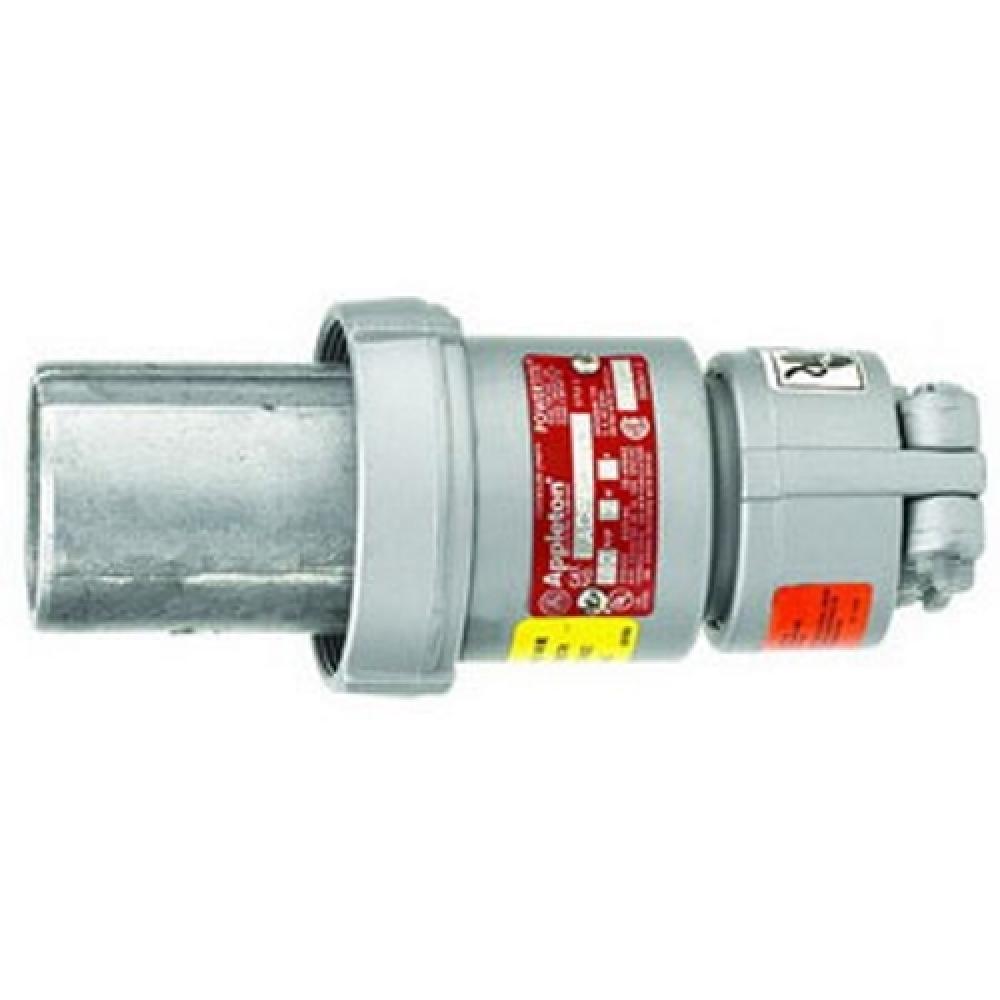

60A PLUG ASSY 3W3P S1
Part Number: ACP6033BC
UPC: 00781381440219
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Number Of Poles...
Changes Selections Above Number Of Wires...
Changes Selections Above Specific Products...
Product Overview
Powertite Grounding Style 1 Metallic Clamping Ring Plug, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3
Specifications
Details
Product Height:
4.00"
Product Width:
5.00"
Product Length:
8.00"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
60
Application:
For ADR6033 Receptacle And ARC6033BC Connector Body
Brand Name:
Appleton
Brochure:
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Environmental Conditions:
Temperature Rating: -40 To 107 DEG C
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating:
NEMA 3, 3R, 4, 4X
Number Of Poles:
3
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Stock Type:
Shelf Stock
Sub Brand:
Powertite
Type:
Grounding Style 1 Metallic Clamping Ring Plug
UNSPSC:
39121402
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Weight:
2.280 L
Wire Size:
6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
