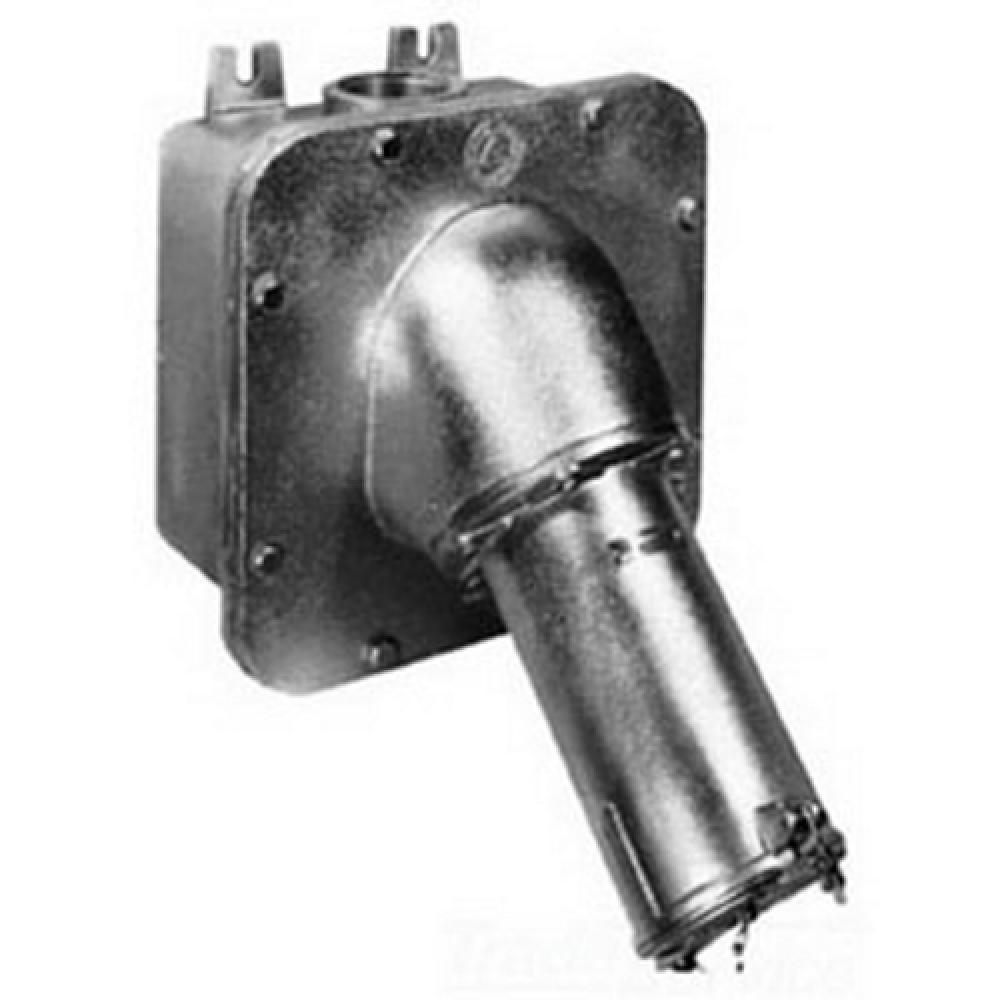

400A RECEPT HSG GROUP

Appleton Electric
400A RECEPT HSG GROUP

Part Number: AJA40144400
UPC: 00781381281669
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Application...
Changes Selections Above Number Of Wires...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Powertite Grounding Style 1 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperf
Specifications
Details
Product Height:
22.10"
Product Width:
19.00"
Product Length:
22.80"
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
400
Application:
For AP40144F And AP40144G Plugs
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Connection:
Solder Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting:
Surface Mount With 4 IN Hub
Number Of Poles:
4
Number Of Wires:
4
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Sub Brand:
Powertite
Temperature Rating:
-40 To 107
Type:
Grounding Style 1 Receptacle With AJA Mounting Box
UNSPSC:
39121406
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Warranty Information
Weight:
63.950 L
Wire Size:
400 - 1000
