Appleton Electric

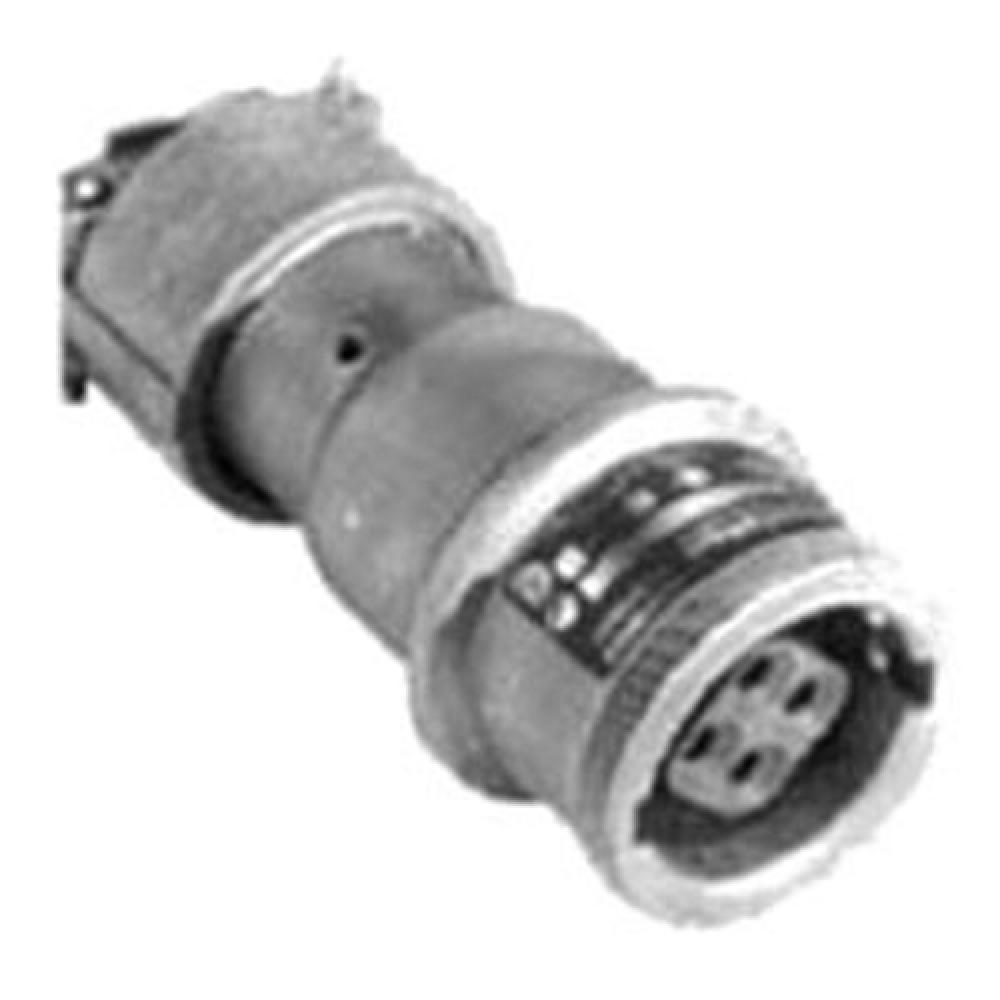

30A CONN ASSY 2W-3P STY 2
Part Number: ARC3023BC
UPC: 00781381440547
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Number Of Wires...
Changes Selections Above Phase...
Changes Selections Above Type...
Product Overview
Powertite Grounding Style 2 Connector Body, Number Of Poles: 3, Number Of Wires: 2, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 1 PH, Materi
Specifications
Details
Product Height:
3.30"
Product Width:
4.90"
Product Length:
6.40"
Electrical Category:
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
, Receptacle
Amperage Rating:
30
Application:
For ACP3023BC Metallic Clamping Ring Plug
Brand Name:
Appleton
Brochure:
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating:
NEMA 3, 3R, 4, 4X
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
1
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Stock Type:
Shelf Stock
Sub Brand:
Powertite
Temperature Rating:
-40 To 107
Type:
Grounding Style 2 Connector Body
UNSPSC:
39121406
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Weight:
1.740 L
Wire Size:
10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)
