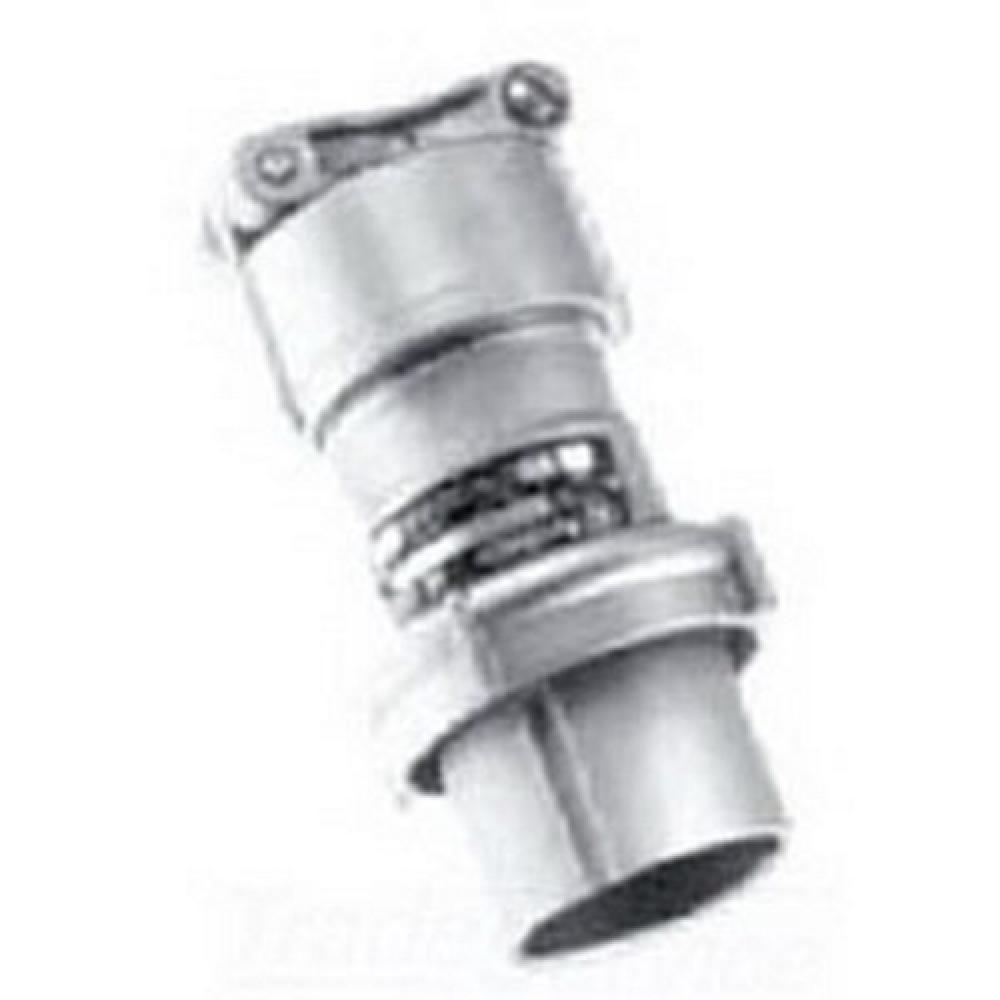

30A AE PLUG 4W-4P STYLE 1

Appleton Electric
30A AE PLUG 4W-4P STYLE 1

Part Number: AEP3451
UPC: 00781381135955
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Number Of Wires...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
AE Series Grounding Style 1 Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 14 - 8 AWG, Amperage Rating: 30 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Plug Cable Diameter: 5/8 - 3/4 IN, Standard: UL 1682, UL 1686, For AE341, AE347 Receptacles And APR3451 Connector Body
Specifications
Details
Product Height:
3.50"
Product Width:
5.00"
Product Length:
6.60"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
30
Application:
For AE341, AE347 Receptacles And APR3451 Connector Body
Brand Name:
Appleton
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Number Of Poles:
4
Number Of Wires:
4
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Grounding style: shell only; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto s
Standard:
UL 1682, UL 1686
Type:
AE Series Grounding Style 1 Clamping Ring Plug
UNSPSC:
39121402
Voltage Rating:
600 VAC, 250 VDC
Warranty Link:
Warranty Information
Weight:
1.490 L
Wire Size:
14 - 8
