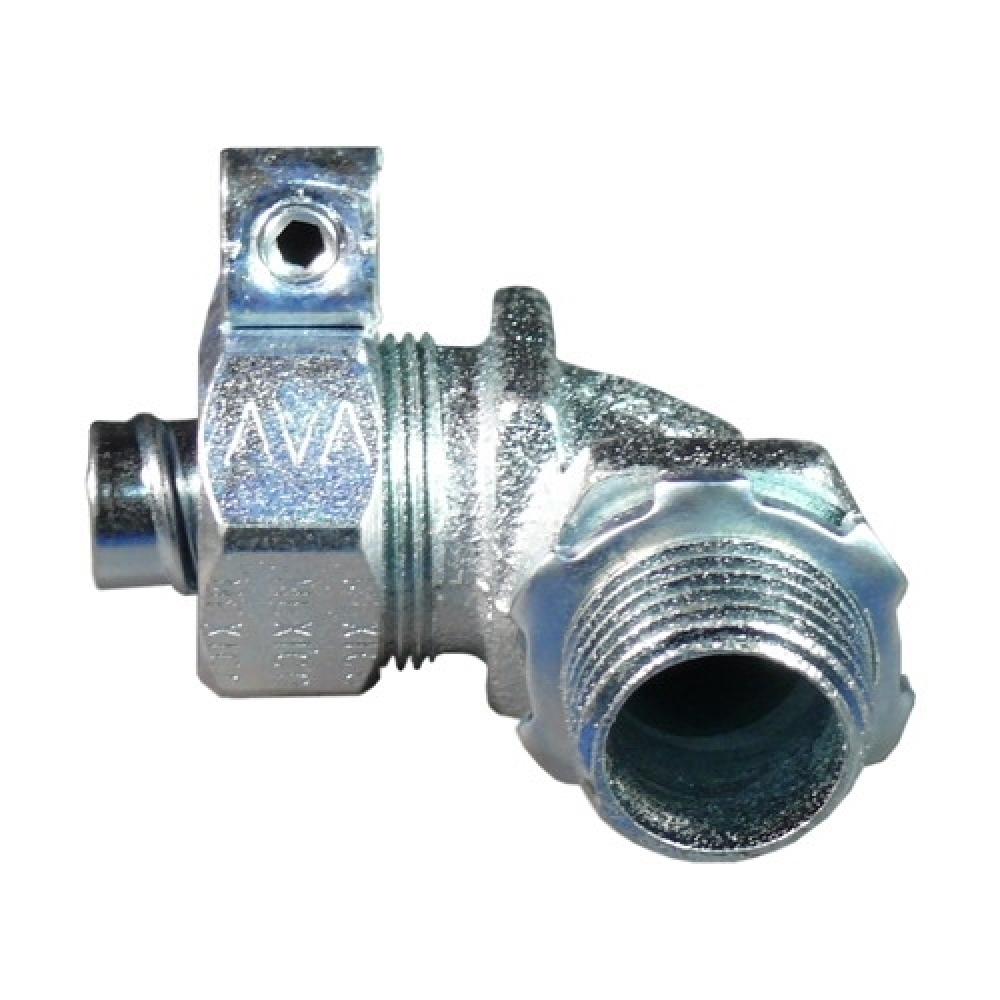

3/4 IN 90DEG LFMC CONN W/LUG

Appleton Electric
3/4 IN 90DEG LFMC CONN W/LUG

Part Number: ST-9075L
UPC: 00781381403283
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
ST Series 90 DEG Liquidtight Connector, Size: 3/4 IN, Connection: Threaded X Compression, Conductor Range: 14 - 4 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standard: Cl
Specifications
Details
Product Height:
0.41"
Product Width:
4.80"
Product Length:
5.00"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Liquidtight Flexible Metal Conduit
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Conductor Range:
14 - 4
Connection:
Threaded X Compression
Country Of Origin:
MX
Finish:
Chromate, Epoxy Powder Coat/Zinc Electroplated
Material:
Malleable Iron
Order Minimum:
10.000 EA
Order Multiple:
10.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
3/4
Spec Sheet:
Spec Link
Special Features:
Includes plain throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-me
Standard:
Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
Stock Type:
Shelf Stock
Type:
ST Series 90 DEG Liquidtight Connector
UNSPSC:
39121420
Warranty Link:
Warranty Information
Weight:
.360 L
