3-1/2 IN INSUL LFMC CONN

Appleton Electric
3-1/2 IN INSUL LFMC CONN

Part Number: STB-350
UPC: 00781381280617
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

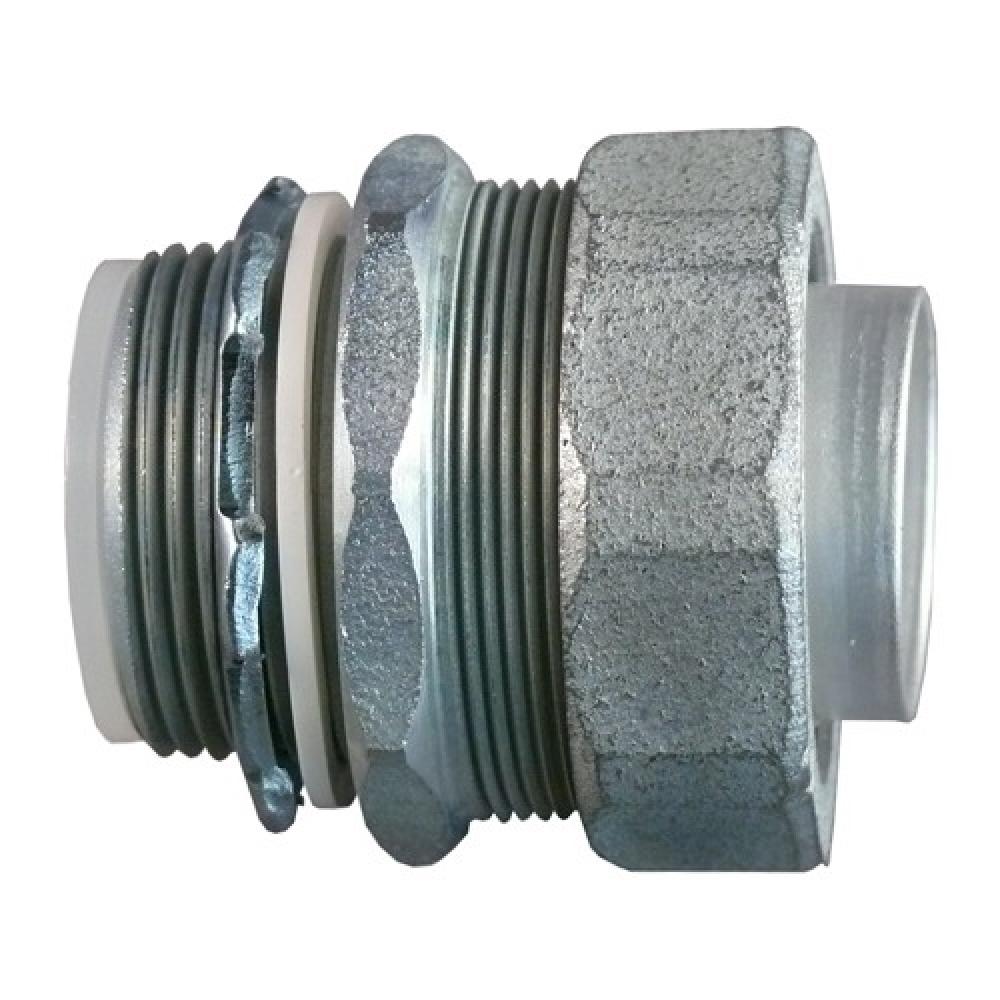

Appleton STB Series Straight Liquidtight Connector With Insulated Throat, Size: 3-1/2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Dimensions: 3.69 IN Length X 5 IN Height, Thread Length: 1.19 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit
Specifications
Details
Product Height:
6.60"
Product Width:
5.80"
Product Length:
5.80"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Liquidtight Flexible Metal Conduit
Brand Name:
Appleton
Connection:
Threaded X Compression
Country Of Origin:
MX
Finish:
Chromate, Epoxy Powder Coat/Zinc Electroplated
Line Drawing Link:
Line Drawing
Material:
Malleable Iron
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
3-1/2
Spec Sheet:
Spec Link
Special Features:
Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permane
Standard:
Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
Type:
STB Series Straight Liquidtight Connector With Insulated Throat
UNSPSC:
39121420
Warranty Link:
Warranty Information
Weight:
5.550 L
