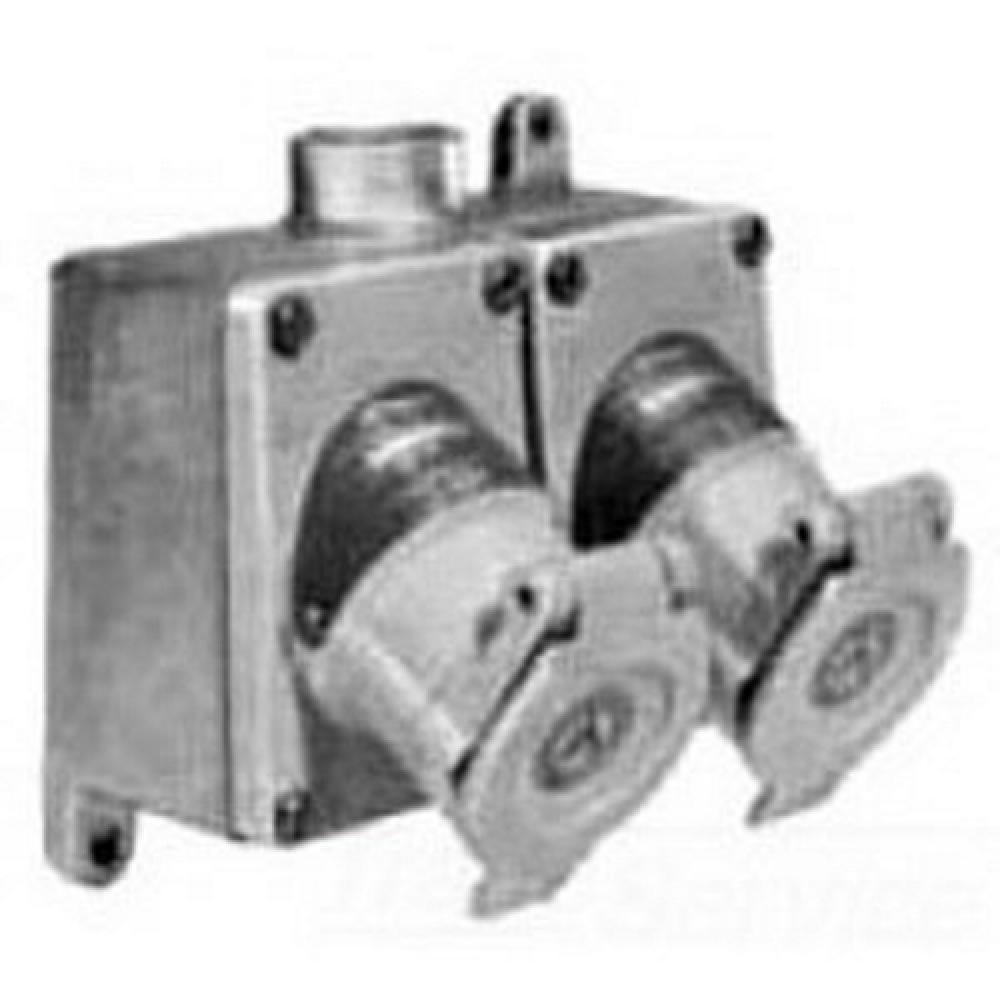

2GANG ULINE RECEPTACLE 250V

Appleton Electric
2GANG ULINE RECEPTACLE 250V

Part Number: EFSC275-20232
UPC: 00781381167796
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Voltage Rating...
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
U-Line 2-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 250 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box, Nem
Specifications
Details
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For ECP And NCP Mating Plugs
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box
Mounting:
Surface Mount With 3/4 IN Feed-Thru Hub
NEMA Rating:
NEMA 3, 3R
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Suitabl
Standard:
Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159
Sub Brand:
U-Line
Type:
2-Gang Receptacle With Mounting Box
UNSPSC:
39121406
Voltage Rating:
250
Warranty Link:
Warranty Information
