2GANG RECEPT ASSY W/ GFI

Appleton Electric
2GANG RECEPT ASSY W/ GFI

Part Number: ENR22201GFI
UPC: 00781381025096
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Specific Products...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

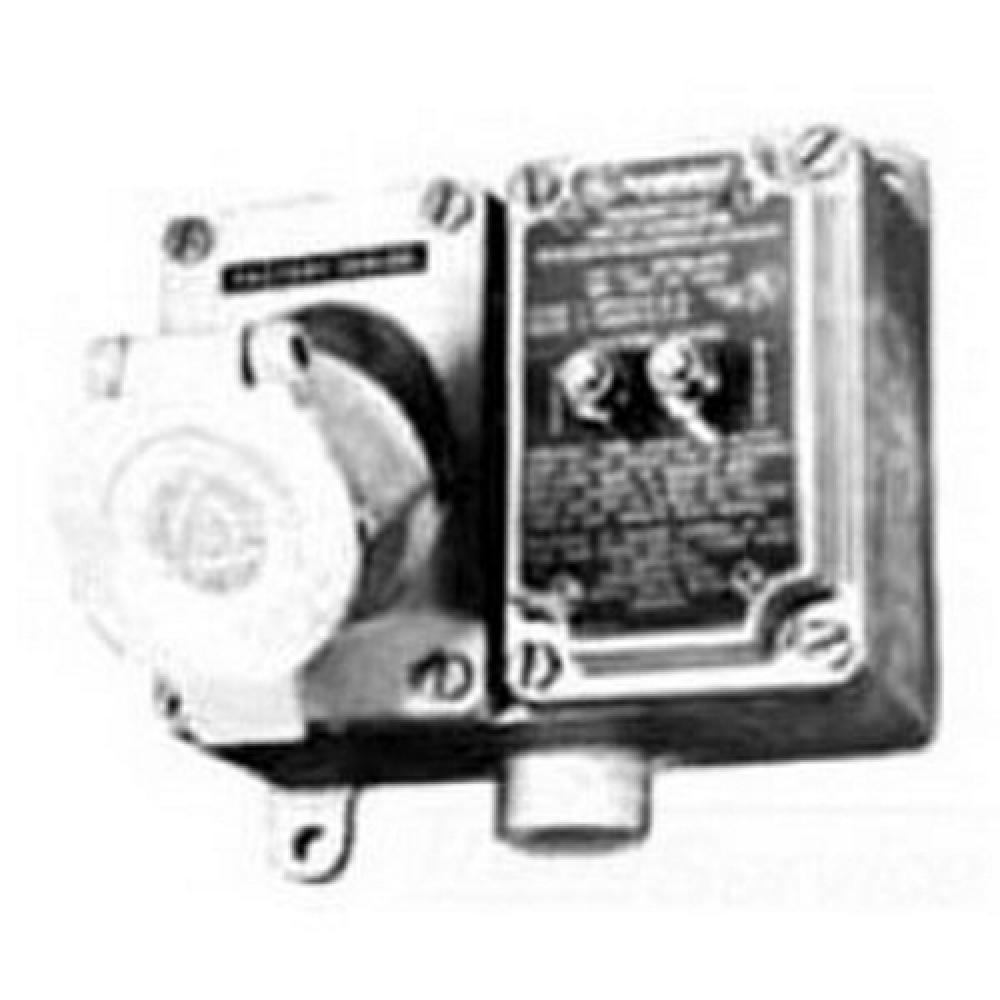

U-Line Contender 2-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box, Nema Rating: NEMA 3RX, Mounting: Surface Mount, Finish: Epoxy Powder Coat Cover And Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) Mounting Box, Standard: Class I, Groups C, D, Class I, Division 2, Group B, Class I, Zone 1, Group IIB, Class I, Zone 2, Group IIB + H2, Class II, Groups F, G, Class III, UL Listed: E10784, UL 1203, UL 1010, UL 894, For ECP Mating Plugs
Specifications
Details
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For ECP Mating Plugs
Brand Name:
Appleton
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box
Mounting:
Surface Mount
NEMA Rating:
NEMA 3RX
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
With GFI; Explosionproof, dust-ignitionproof; Covers are UL Listed when used with Contender series back boxes; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Fiberglass reinforced thermoset polyester insulating bloc
Standard:
Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; UL Listed: E10784; UL 1203, UL 1010, UL 894
Sub Brand:
Contender
Type:
2-Gang Receptacle With Mounting Box
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Warranty Information
