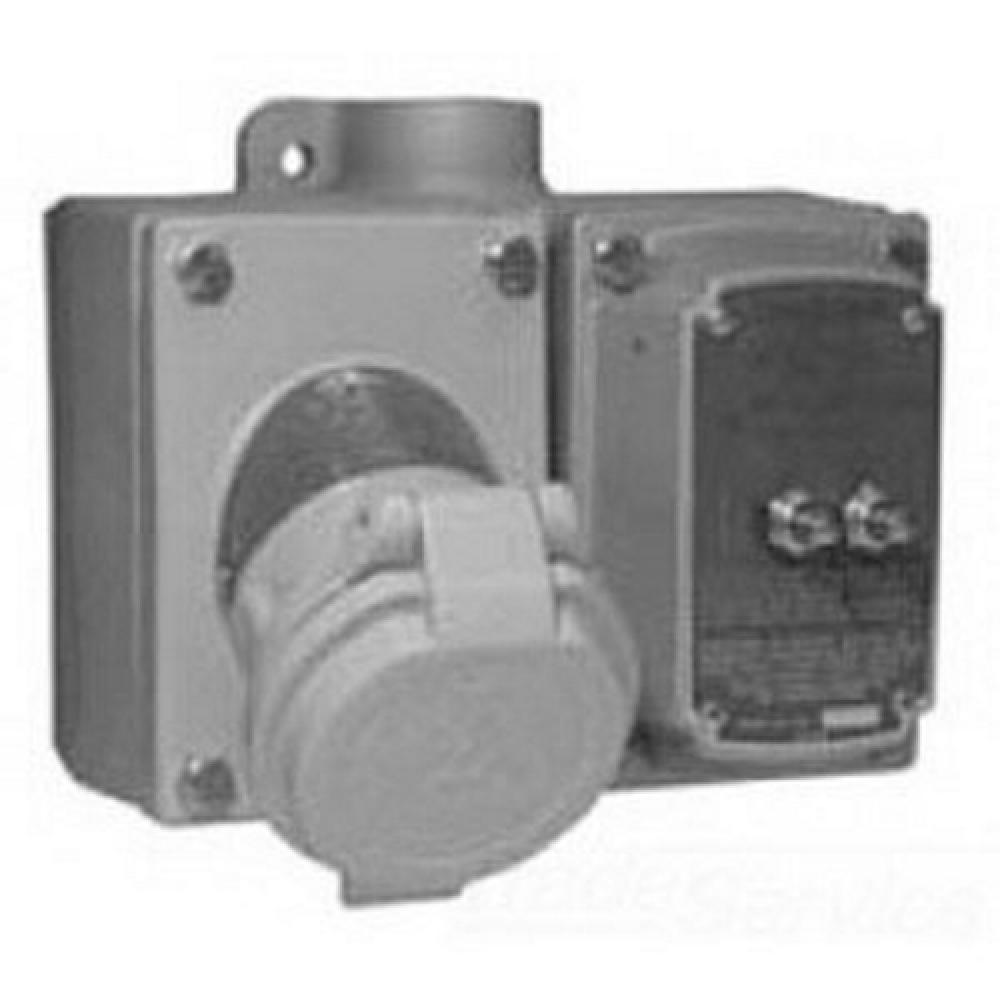

20A 2W3P RECEPT W/GFI EXPL PRF

Appleton Electric
20A 2W3P RECEPT W/GFI EXPL PRF

Part Number: CPS152202GFI
UPC: 00781381025218
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Mounting...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Contender CPS Series 2-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting
Specifications
Details
Electrical Category:
Electrical Distribution Equipment , Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles , Receptacle
Amperage Rating:
20
Application:
For CPP516 Plug
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box
Mounting:
Surface Mount With 3/4 IN Dead-End Hub
Number Of Poles:
3
Number Of Wires:
2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Includes GFI cover; Explosionproof, delayed action; Covers are UL Listed when used with Contender series mounting bodies; CPS factory sealed: external seals not required; Insulators provide superior dielectric and mechanical strength and lowest arc trackin
Standard:
Class I, Division 1 And 2, Groups C, D; UL 1010 (UL 1203), UL 894; UL Listed: E10784
Sub Brand:
Contender
Type:
CPS Series 2-Gang Receptacle With Mounting Box
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Warranty Information
