Appleton Electric

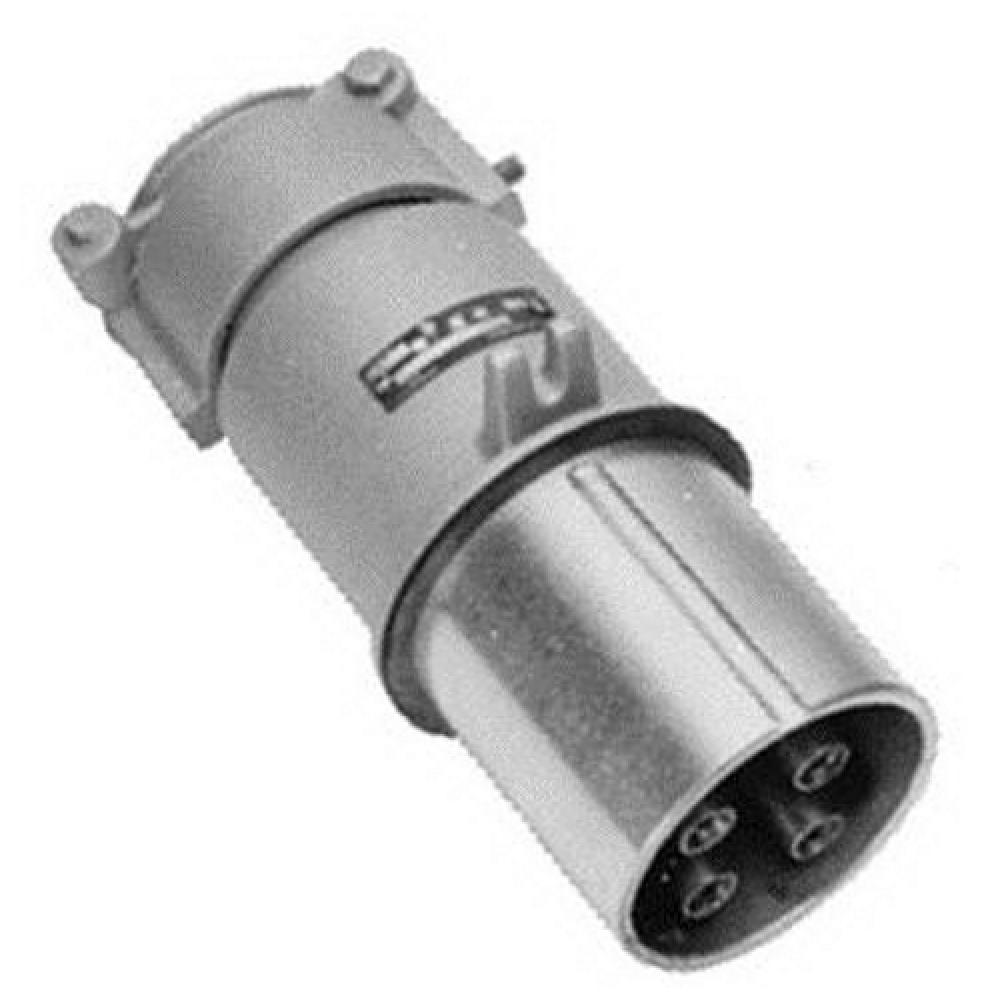

200 AMP PLUG ASSEM 4P S2 2.500
Part Number: AP20034E
UPC: 00781381131261
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Number Of Wires...
Changes Selections Above Type...
Changes Selections Above Specific Products...
Product Overview
Powertite Grounding Style 2 Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum)
Specifications
Details
Product Height:
6.90"
Product Width:
6.70"
Product Length:
13.20"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
200
Application:
For ADR20034 Receptacle And ARC20034CD, ARC20034CD Connector Body
Brand Name:
Appleton
Brochure:
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Environmental Conditions:
Temperature Rating: -40 To 107 DEG C
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating:
NEMA 3, 3R, 4, 4X
Number Of Poles:
4
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Grounding style: Shell and extra pole only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Stock Type:
Shelf Stock
Sub Brand:
Powertite
Type:
Grounding Style 2 Plug
UNSPSC:
39121402
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Weight:
8.350 L
Wire Size:
2/0 AWG - 250 MCM
