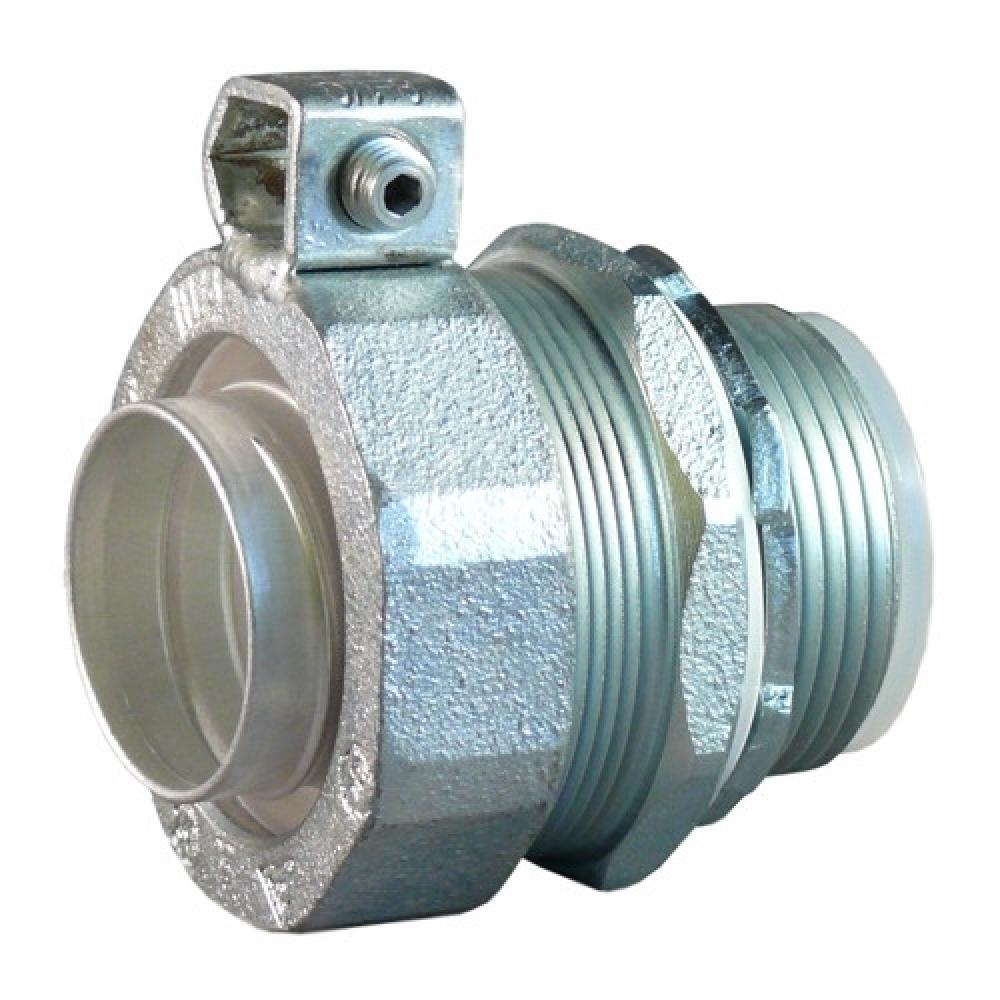

2-1/2 IN INSUL LFMC CONN W/LUG

Appleton Electric
2-1/2 IN INSUL LFMC CONN W/LUG

Part Number: STB-250L
UPC: 00781381403566
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Appleton STB Series Straight Liquidtight Connector, Size: 2-1/2 IN, Connection: Threaded X Compression, Conductor Range: 1 - 4/0 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Dimensions: 3.38 IN Length X 3.94 IN Height, Thread Length: 1.06 IN, Standard: Class I, Division 2, UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit
Specifications
Details
Product Height:
1.18"
Product Width:
10.10"
Product Length:
13.80"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Liquidtight Flexible Metal Conduit
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Conductor Range:
1 - 4/0
Connection:
Threaded X Compression
Country Of Origin:
MX
Finish:
Chromate, Epoxy Powder Coat/Zinc Electroplated
Line Drawing Link:
Line Drawing
Material:
Malleable Iron
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
2-1/2
Spec Sheet:
Spec Link
Special Features:
Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-t
Standard:
Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
Type:
STB Series Straight Liquidtight Connector
UNSPSC:
39121420
Warranty Link:
Warranty Information
Weight:
2.940 L
