Appleton Electric

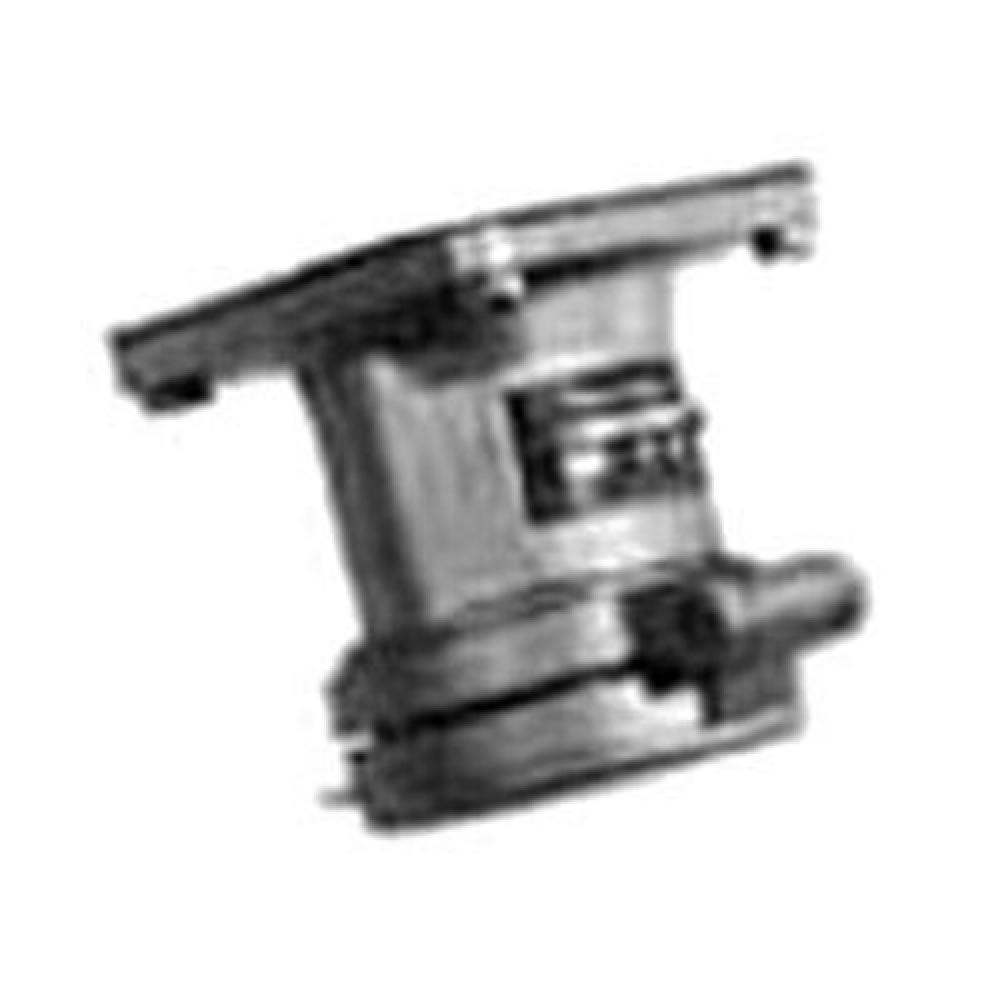

150A RECPT 4PS2 SCR/SPRG CVRS
Part Number: ADR15034
UPC: 00781381149969
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Specific Products...
Product Overview
Powertite Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2 - 2/0 AWG (Building And Extra Flex), Amperage Rating: 150 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfre
Specifications
Details
Product Height:
4.90"
Product Width:
5.80"
Product Length:
7.20"
Electrical Category:
Electrical Distribution Equipment
, Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
, Receptacle
Amperage Rating:
150
Application:
For ACP15034CD And ACP15034DE Clamping Ring Plugs
Brand Name:
Appleton
Brochure:
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting:
Box
NEMA Rating:
NEMA 3, 3R, 4, 4X
Number Of Poles:
4
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
3
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and
Standard:
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Stock Type:
Shelf Stock
Sub Brand:
Powertite
Temperature Rating:
-40 To 107
Type:
Grounding Style 2 Receptacle
UNSPSC:
39121406
Voltage Rating:
600 VAC At 50 - 400 HZ, 250 VDC
Warranty Link:
Weight:
3.840 L
Wire Size:
2 - 2/0 AWG (Building And Extra Flex)
