Appleton Electric

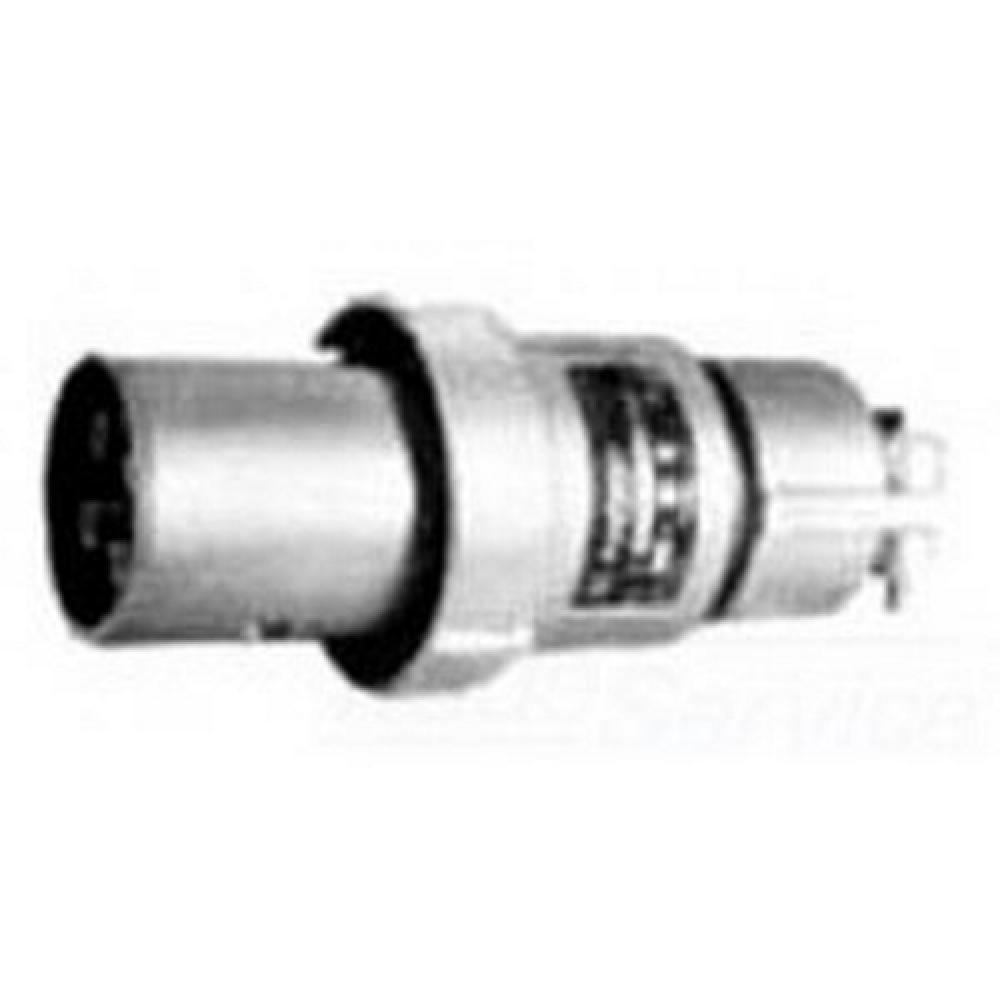

150A PLUG 3W4P ST2 RS
Part Number: ACP15034CDRS
UPC: 00781381160711
Call for Price
- Manufacturer availability unknown.
Quantity:
Changes Selections Above Amperage Rating...
Product Overview
Pin and Sleeve Plug, Type Reverse Service, Compressor, Generator, Pump, Welder, Clamping Ring, Constructional Feature Weatherproof, Water Resistant, Voltage Rating 600 VAC at 50 to 400 Hz, 250 VDC, Current Rating 150 Ampere, Number of Poles 4, Number of Wires 3, Grounding Style 2, Shell, Extra Pole, Minimum Cable Outer Diameter 0.875 Inch, Maximum Cable Outer Diameter 1.906 Inch, Material Epoxy Powder Coated Copper-Free Aluminum, Approval UL 1682/1689/50E, CSA C22.2, Contact Material Brass, Application Compressor, Generator Unit, Pump, Shipping Docks, Shipping Ports, Welding
Specifications
Details
Product Height:
6.50"
Product Width:
6.60"
Product Length:
13.00"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
150 AMP
Application:
For ADR15034 Receptacle And ARC15034CD Connector Body
Brand Name:
Appleton
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
For reverse service (generator applications). Grounding style: Shell and Extra Pole. Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatu
Stock Type:
Shelf Stock
Sub Brand:
Powertite
Type:
Grounding Style 2 Clamping Ring Plug with Reverse Service
UNSPSC:
39121402
Weight:
5.020 L
Wire Size:
Wire Recess Diameter: 0.525 IN. Wire Size Range: #2 - 2/0 Building, #2 - #2/0 Extra Flex.
