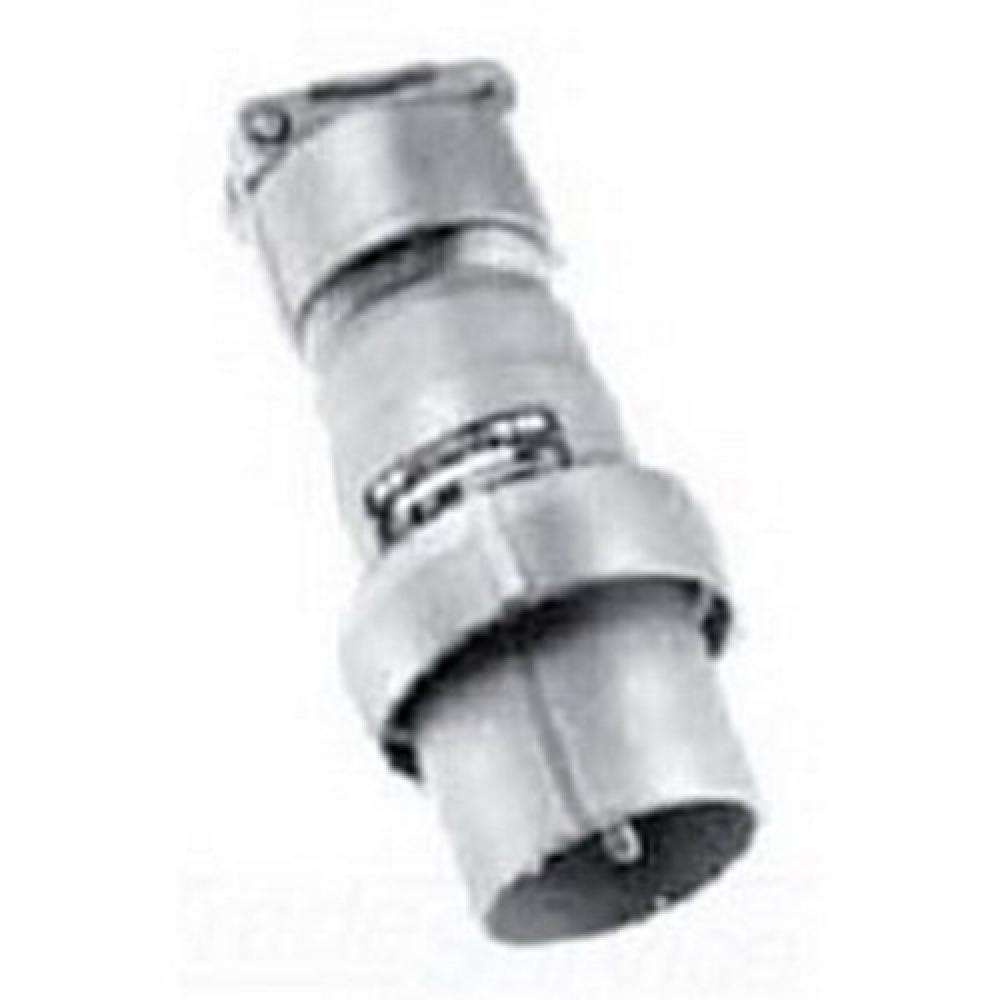

100A AE PLUG 4W4P STYLE1

Appleton Electric
100A AE PLUG 4W4P STYLE1

Part Number: AEP10453
UPC: 00781381136952
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Number Of Wires...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
AE Series Grounding Style 1 Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 3 - 1 AWG, Amperage Rating: 100 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Plug Cable Diameter: 7/8 IN, 1-7/16 - 1-3/4 IN, Standard: UL 1682, UL 1686, For AE1041, AE1047 Receptacles And APR10453 Connector Body
Specifications
Details
Product Height:
4.30"
Product Width:
5.10"
Product Length:
11.90"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Plugs
Amperage Rating:
100
Application:
For AE1041, AE1047 Receptacles And APR10453 Connector Body
Brand Name:
Appleton
Connection:
Pressure Wire Terminal
Country Of Origin:
MX
Material:
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Number Of Poles:
4
Number Of Wires:
4
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Spec Link
Special Features:
Grounding style: shell only; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto s
Standard:
UL 1682, UL 1686
Type:
AE Series Grounding Style 1 Clamping Ring Plug
UNSPSC:
39121402
Voltage Rating:
600 VAC, 250 VDC
Warranty Link:
Warranty Information
Weight:
3.330 L
Wire Size:
3 - 1
