1/2 IN LFMC CONN PG THD

Appleton Electric
1/2 IN LFMC CONN PG THD

Part Number: PG50-STB
UPC: 00781381304443
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Connection...
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

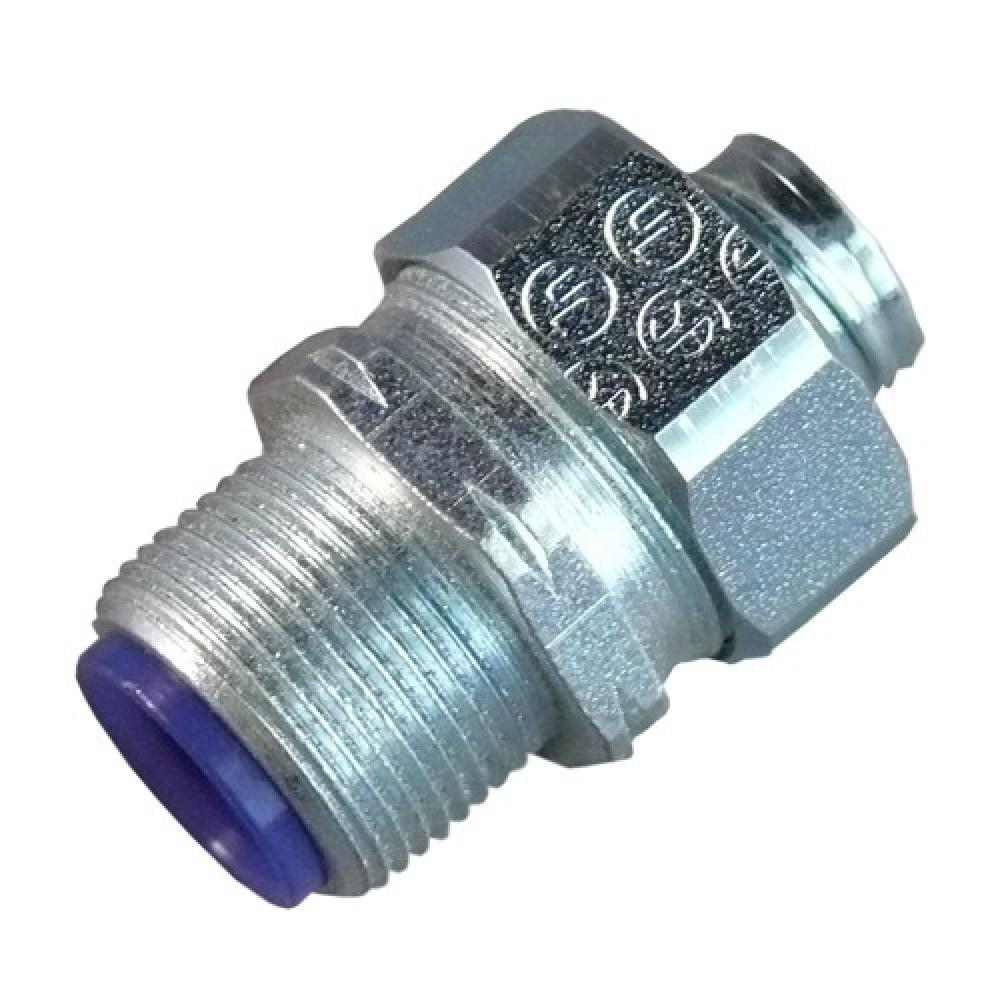

PG Metric Thread Straight Liquidtight Connector, Size: 1/2 IN, Connection: PG16 Threaded X Compression, Material: Steel, Finish: Zinc Electroplate, Insulation: Blue Nylon Insulator, Dimensions: 1.44 IN Length X 1-1/4 IN Height, Thread Length: 0.63 IN, Standard: UL 514B, E14814, CSA C22.2 No. 18.3, 65178, German Industry Standard DIN 40430, For Liquidtight Flexible Metal Conduit
Specifications
Details
Product Height:
0.14"
Product Width:
7.60"
Product Length:
10.80"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Liquidtight Flexible Metal Conduit
Brand Name:
Appleton
Brochure:
Manufacturer Brochure
Connection:
PG16 Threaded X Compression
Country Of Origin:
MX
Finish:
Zinc Electroplate
Insulation:
Blue Nylon Insulator
Line Drawing Link:
Line Drawing
Material:
Steel
Order Minimum:
25.000 EA
Order Multiple:
25.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1/2
Spec Sheet:
Spec Link
Special Features:
Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Insulated throat protects agai
Standard:
UL 514B, E14814, CSA C22.2 No. 18.3, 65178, German Industry Standard DIN 40430
Stock Type:
Shelf Stock
Type:
PG Metric Thread Straight Liquidtight Connector
UNSPSC:
39121420
Warranty Link:
Warranty Information
Weight:
.170 L
