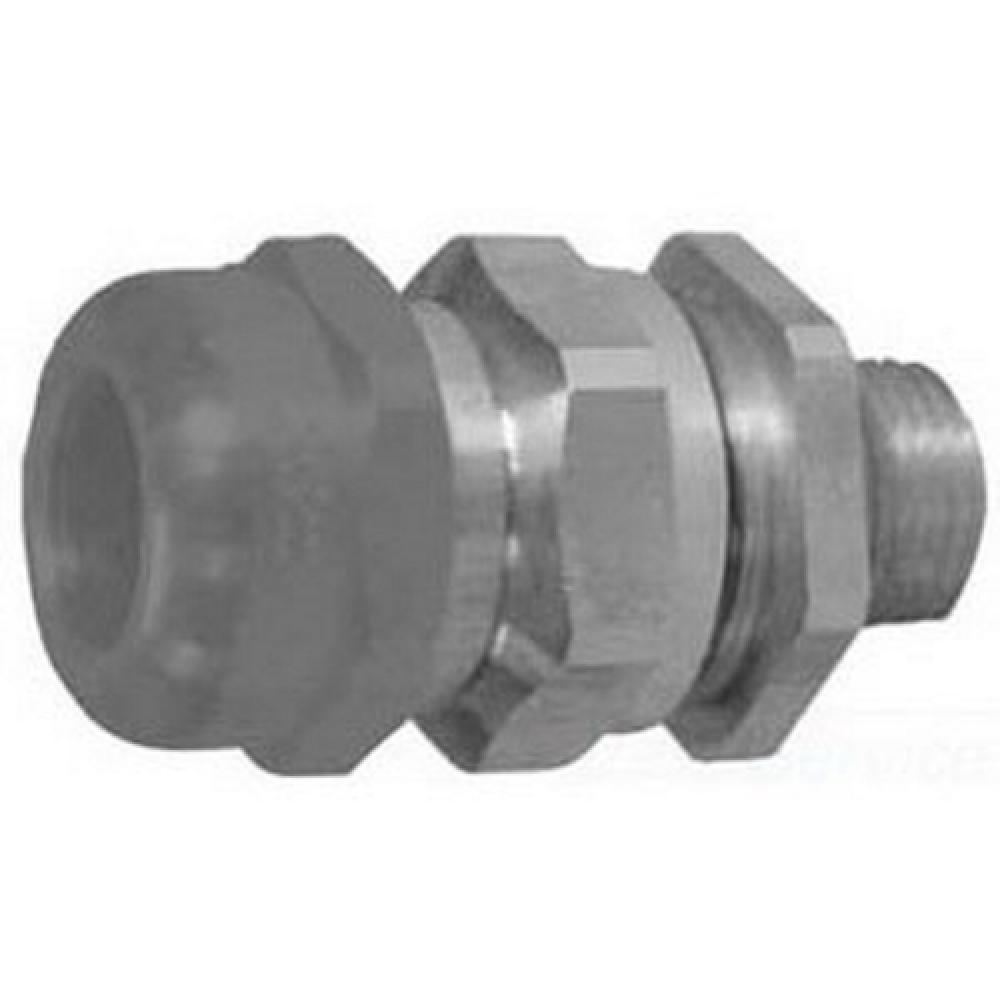

Image may not reflect selected features
No Image
Available
1/2 IN HAZ LOC MC CONN ALUM

Appleton Electric
1/2 IN HAZ LOC MC CONN ALUM

Part Number: TMCX050A
UPC: 00781381083010
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Size...
Changes Selections Above Material...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
TMCX Series Cable Gland Connector, Size: 1/2 IN (M20), Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Connection: NPT, Dimensions: 2.79 IN Length, Cable Armor Diameter: 0.51 - 0.67 IN End Stop Out, Cable Jacket Dia
Specifications
Details
Product Height:
3.00"
Product Width:
4.00"
Product Length:
2.00"
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
Brand Name:
Appleton
Connection:
NPT
Country Of Origin:
IN
Enclosure:
IP66
Material:
Copperfree Aluminum
NEMA Rating:
NEMA 4X
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1/2 IN (M20)
Spec Sheet:
Spec Link
Special Features:
Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; For hazardous locations; For use on horizontal or vertical run; Independent sealing and armor clamping; True
Standard:
Class I, Division 1 And 2, Groups A, B, C, D, Class I, Zone 1, AExd IIC, Class II, Division 1 And 2 Groups E, F, G, Class III, UL 2225, 514B, 83827, CSA C22.2 No. 174, 025875, 249506
Stock Type:
Shelf Stock
Type:
TMCX Series Cable Gland Connector
UNSPSC:
39121431
Warranty Link:
Warranty Information
Weight:
.350 L
