1/2 IN GNDG BSHG THD

Appleton Electric
1/2 IN GNDG BSHG THD

Part Number: GIB-50L-4AC
UPC: 00781381091077
Call for Price
  • Manufacturer availability unknown.
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview

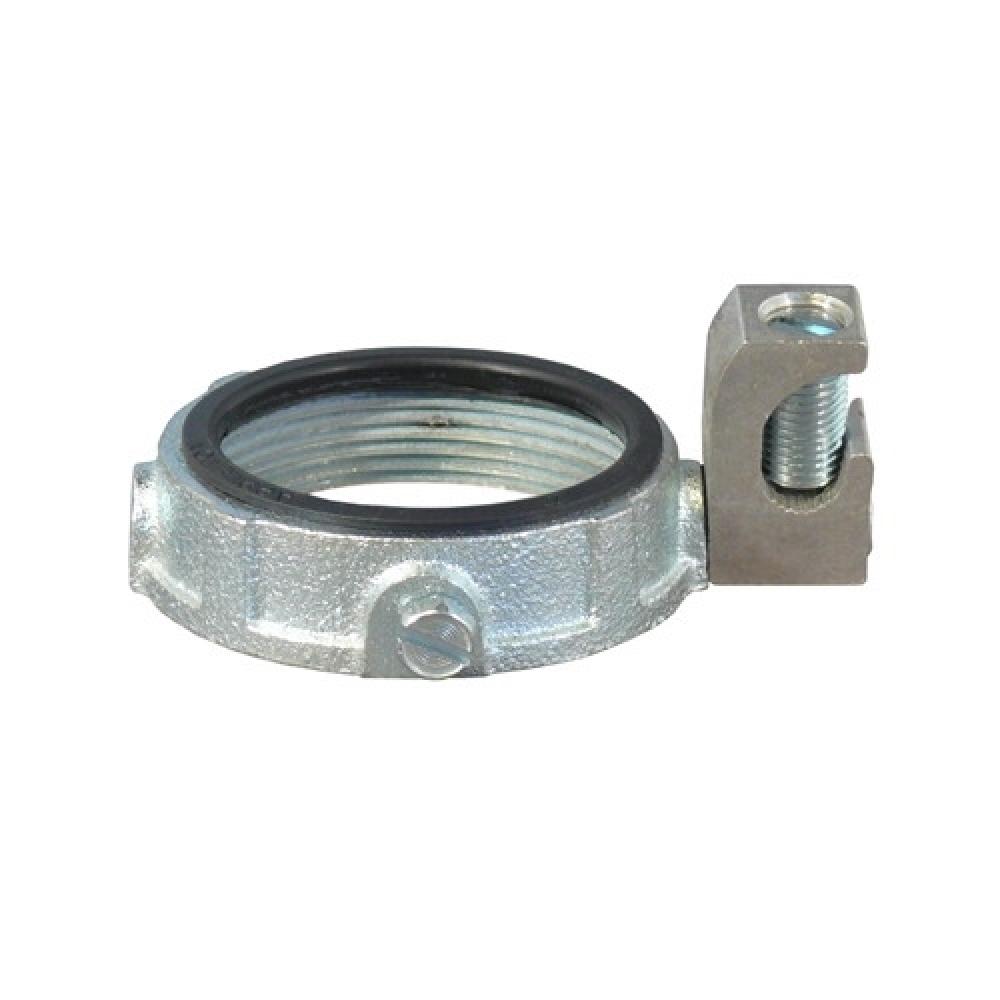

Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 1/2 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 0.44 IN Height X 1.41 IN Diameter, Cable Size: 14 AWG Solid - 4 AWG Stranded, Turning Radius: 1.19 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC
Specifications
Details
Product Height:
0.09"
Product Width:
5.00"
Product Length:
5.00"
Electrical Category:
Electrical Boxes And Enclosures
Electrical Subcategory:
Fittings and Bushings
Application:
For Use With Threaded Rigid Metal Conduit and IMC
Brand Name:
Appleton
Connection:
Threaded
Country Of Origin:
MX
Finish:
Zinc Electroplated Body, Tin Plated Lug
Material:
Malleable Iron
Order Minimum:
50.000 EA
Order Multiple:
50.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1/2
Spec Sheet:
Spec Link
Special Features:
Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plast
Standard:
UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
Stock Type:
Shelf Stock
Temperature Rating:
150
Type:
Insulated Grounding Bushing With Aluminum Lay-In-Lug
UNSPSC:
39121312
Warranty Link:
Warranty Information
Weight:
.070 L
