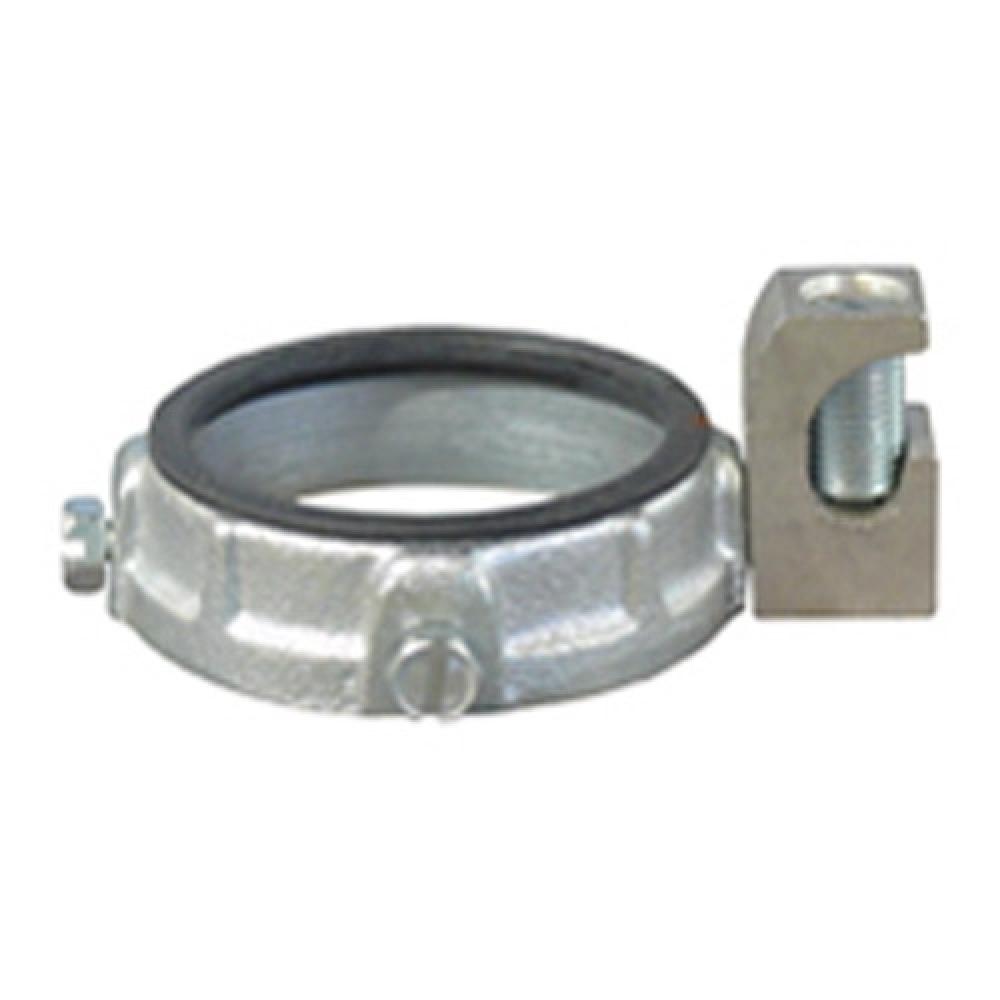

1/2 IN GNDG BSHG SSCR

Appleton Electric
1/2 IN GNDG BSHG SSCR

Part Number: GIB-50LS-4AC
UPC: 00781381091367
Call for Price
  • Manufacturer may be Out Of Stock.
Changes Selections Above Size...
Return
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Print
Email
Product Overview
Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 1/2 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Temperature Rating: 150 DEG C, Dimensions: 0.44 IN Height X 1.19 IN Diameter, Cable Size: 14 AWG Solid - 4 AWG Stranded, Turning Radius: 1.19 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC
Specifications
Details
Product Height:
0.09"
Product Width:
5.20"
Product Length:
5.40"
Electrical Category:
Electrical Boxes And Enclosures
Electrical Subcategory:
Fittings and Bushings
Application:
For Use With Threaded Rigid Metal Conduit and IMC
Brand Name:
Appleton
Country Of Origin:
MX
Finish:
Zinc Electroplated Body, Tin Plated Lug
Line Drawing Link:
Line Drawing
Material:
Malleable Iron
Order Minimum:
50.000 EA
Order Multiple:
50.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
1/2
Spec Sheet:
Spec Link
Special Features:
Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plast
Standard:
UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
Temperature Rating:
150
Type:
Insulated Grounding Bushing With Aluminum Lay-In-Lug
UNSPSC:
39121312
Warranty Link:
Warranty Information
Weight:
.060 L
